ARCO Marine Zeus A225OB-12V High Output Outboard Alternator Enginee...
Sale price
$1,04900
Regular price
$1,19900
Total:
Unit price
SKU:
ARC/40471
Sale price
$1,04900
Regular price
$1,19900
Total:
Unit price
Description
Description

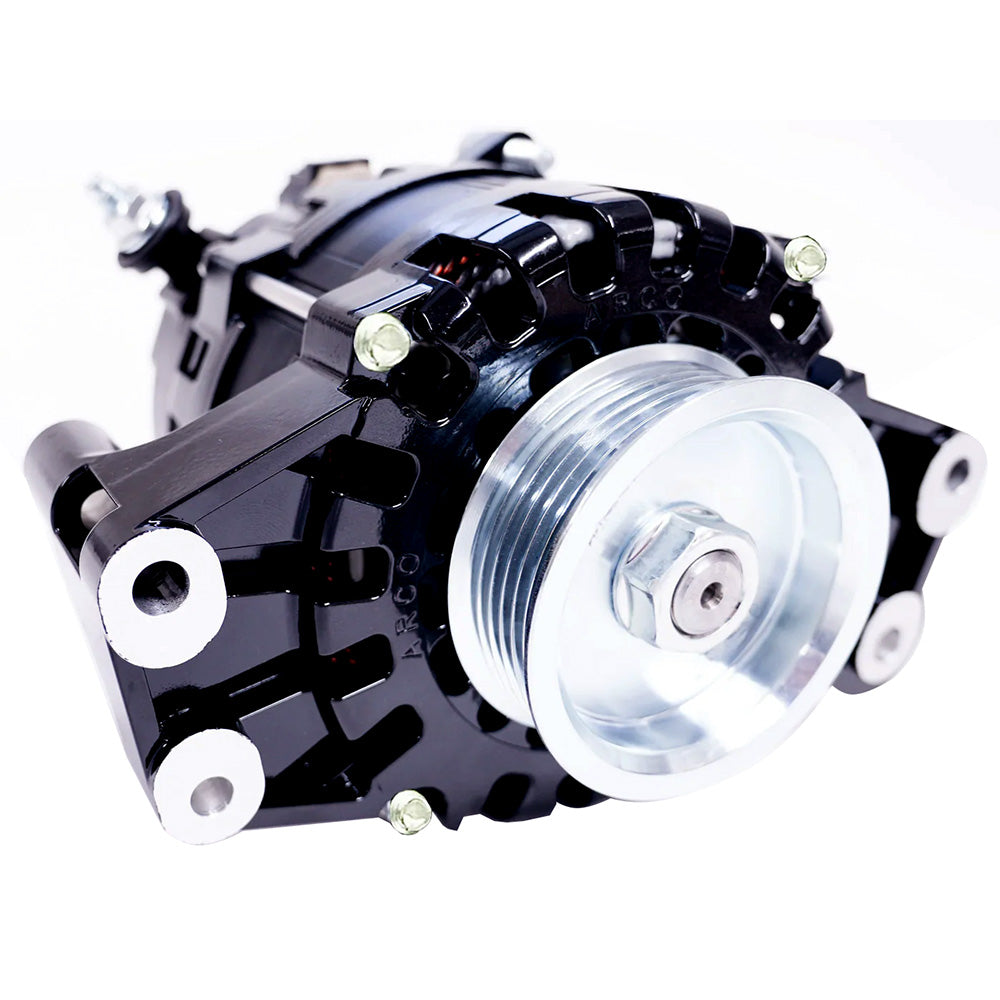

Zeus A225OB-12V High Output Outboard Alternator Engineered Kit
Kit includes everything needed for Verado applications: alternator, alternator positive fuse link wire, alternator ground wire, battery sense wire, and OEM replacement alternator belt.
The ARCO Zeus A225ob-12V is a 225-amp, 3,500-watt high-output outboard alternator delivering 2 to 3x faster charge times compared to OEM units. It is part of the ARCO Zeus High Energy product family, engineered for boaters who need a complete onboard power upgrade, not just a component swap.
Features:
- 225 amps and 3,500 watts of charging capability with 2 to 3x faster charge times vs OEM units
- Engineered to help recharge large lithium banks at significantly faster rates than typical OEM alternators
- Built to support stabilizers, inverters, air conditioning, refrigeration, trolling motors, water and ice makers, and premium audio
- Batteries continue charging even at low engine speeds, including idle, so power is available when and where you need it
- Enables efficient charging without a dedicated engine or generator runtime
Specifications
Specifications
Identification
| MPN | 40471 |
|---|
General
| MPN | 40471 |
|---|
Electrical
| Voltage | 12V |
|---|---|
| Max Output (Cold) | 254A |
| Sustained Cruising Output (Hot, 4,000 RPM) | 187A |
| Sustained Idle Output (Hot, 700 RPM) | 95A |
| Power Rating | 3500W |
| Cut-In RPM | 1,288 |
| Maximum Alt RPM | 19,000 |
| Rotor Poles | 16 |
| Field Type | P |
| Avalanche Diodes | 50A |
| Regulation | Internal/External (IE) |
Physical
| Weight | 14.9 lb (6.7 kg) |
|---|---|
| Shaft Diameter | 0.66 in (17mm) |
| Mount Type | Verado Mount, Case Ground |
| Standard Pulley | K6 75mm |
| Battery Post | M8 thread, side mount |
| Max Continuous Operating Temperature | 110°C |
Compatibility
| Fits | 2018-2026 Mercury Verado outboard applications |
|---|
Included
| Components | Alternator belt, battery sense harness, positive fuse link wire, ground wire |
|---|
