ARCO Marine Zeus A8000-48V 8kW 3.15 Alternator w/Isolated Ground
Description
Description

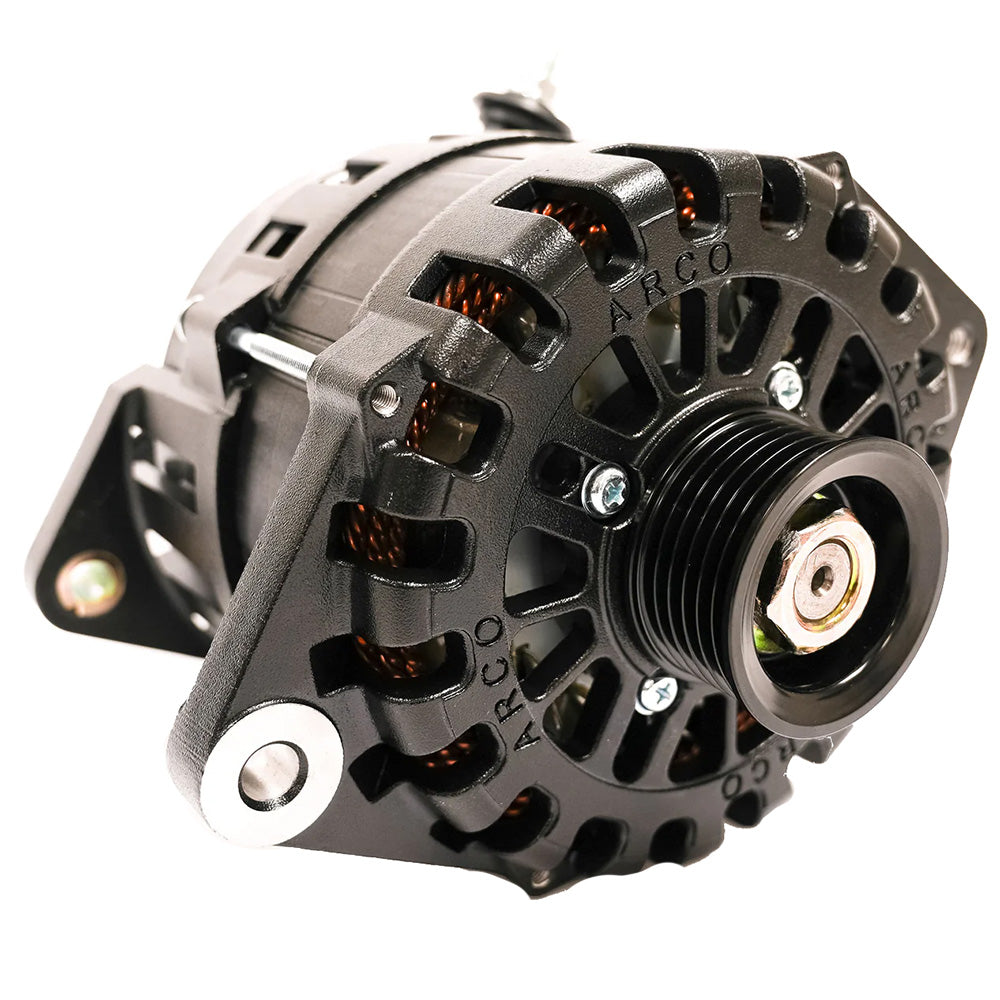

Zeus A8000-48V 8kW 3.15 Alternator with Isolated Ground
The ARCO Zeus A8000-48V alternator turns on at lower RPMs, runs cooler, and provides more power than other 48V alternators that are larger and heavier. This alternator continuously generates over 3kW (55 Amps) at 2,500 RPM and almost 6kW (111 Amps) at 4,000 Alternator RPM. Put in real-world terms, a marine diesel engine charging at 1,200 RPM with a 3.13:1 pulley ratio is generating just over 5kW (97 Amps), and a Mercedes Sprinter at 750 RPM with a 3.21:1 ratio is generating over 3kW (55 Amps)!

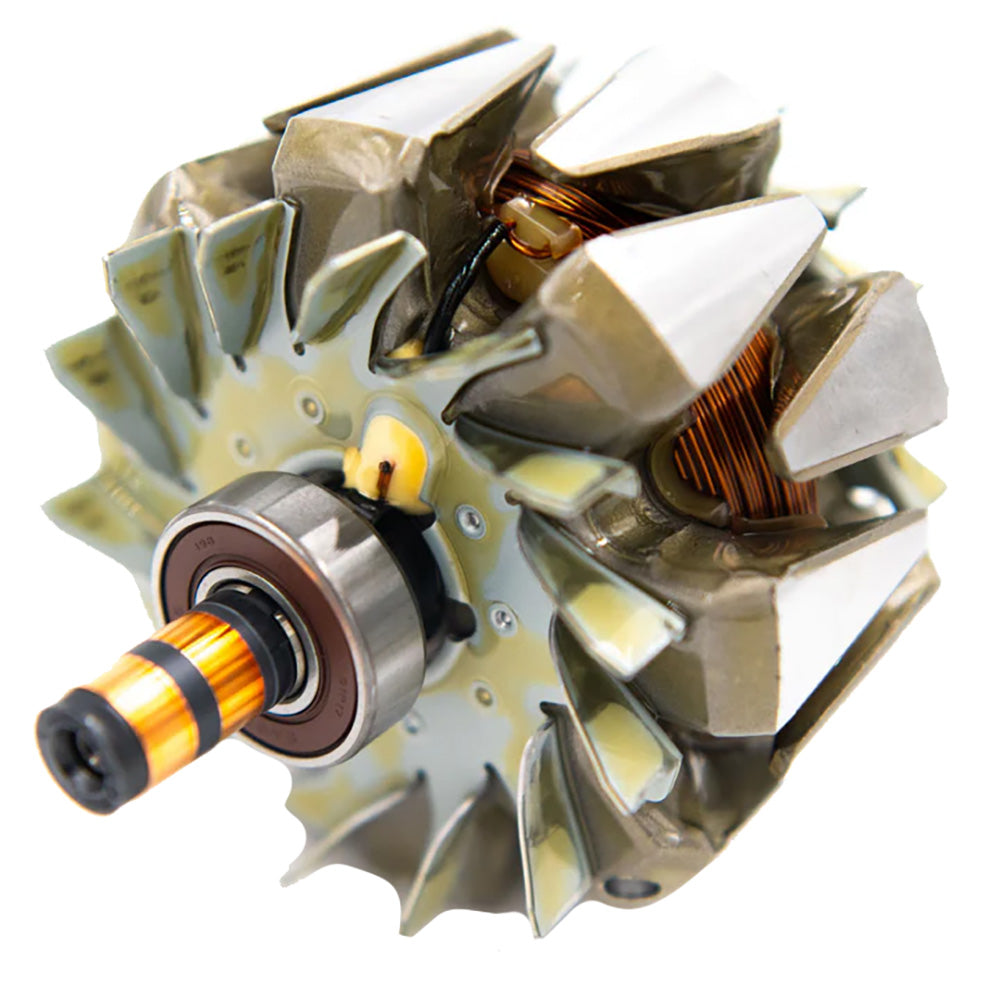

Instead of using rotors designed for 48 volts, many competitor alternators simply use their 12V rotors which is less efficient and limits output at all RPMs. In this scenario, your external smart regulator must drastically reduce field, by as much as 78%. If this is not done correctly, you run the risk of destroying the unit and damaging other components in your system. ARCO utilizes a native 48V rotor and field current. This results in our 48V alternator running cooler than competitor’s 48V alternators, having a direct impact on the alternator’s lifespan.
Features:
- Engineered for high energy production.
- Suitable for marine, RV, military, and commercial applications.
- Rapidly charges large battery banks.
- Coolest operating temperatures for increased performance:
- Heat shedding coatings

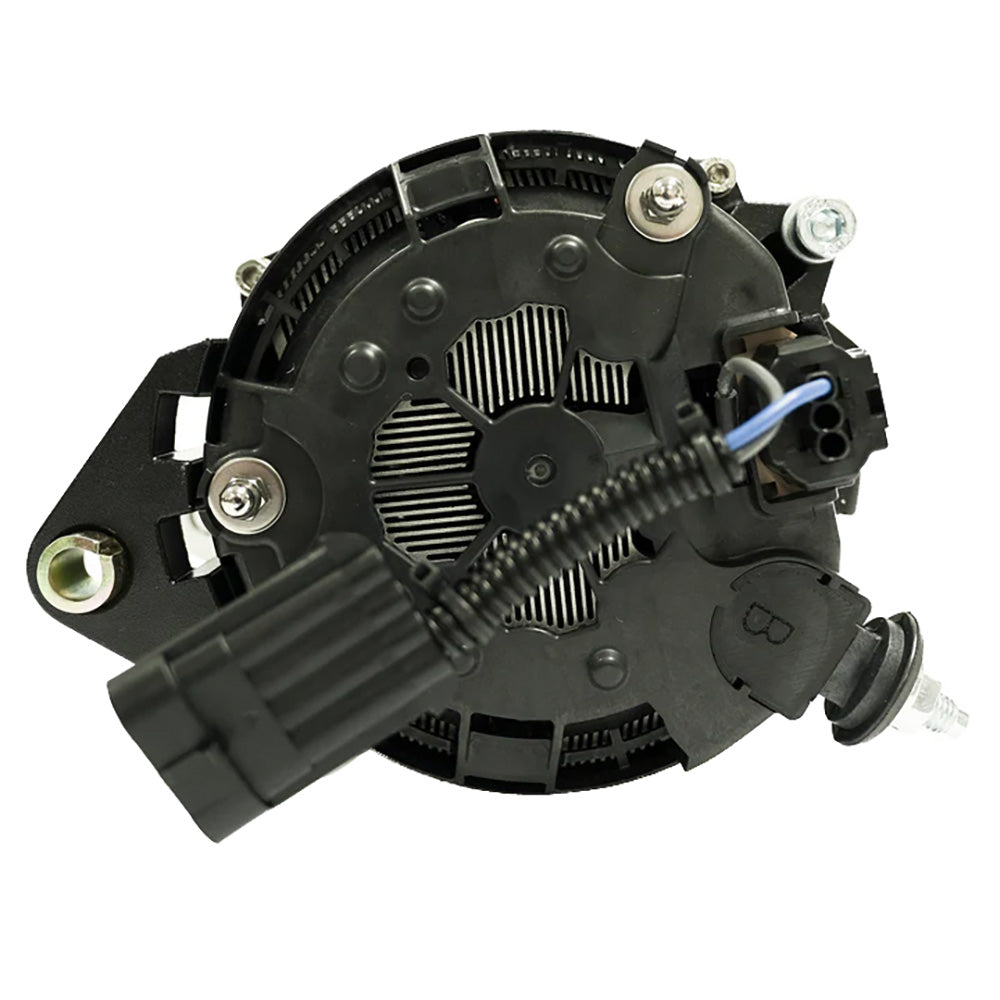

- Rectifier located on housing exterior
- Dual cooling fans
- OEM components
- Optimized for performance at idle speeds.
- Reduces the need for a generator by creating additional power with your engine.
- Unleash peak performance with E-Coat/Cerakote, keeping the high amp alternator cooler for sustained amperage output.
- Use the ARCO Zeus Bluetooth Alternator Regulator for maximum performance or lithium battery charging.
- SAE J1171 Certified.
- Proudly made in the U.S.A.
Specifications
Specifications
Identification
| MPN | 4601 |
|---|
General
| MPN | 4601 |
|---|
Electrical
| Voltage | 48V |
|---|---|
| Max Output | 180A / 9,630W at 9,000 RPM (cold) |
| Sustained Cruising Output | 138A / 7,383W at 6,000 RPM (hot) |
| Sustained Idle Output | 78A / 4,173W at 2,500 RPM (hot) |
| Cut-In RPM | 1,920 alternator RPM |
| Max RPM | 19,000 |
| Regulator Type | External Only (EX) |
| Rotor Poles | 16 |

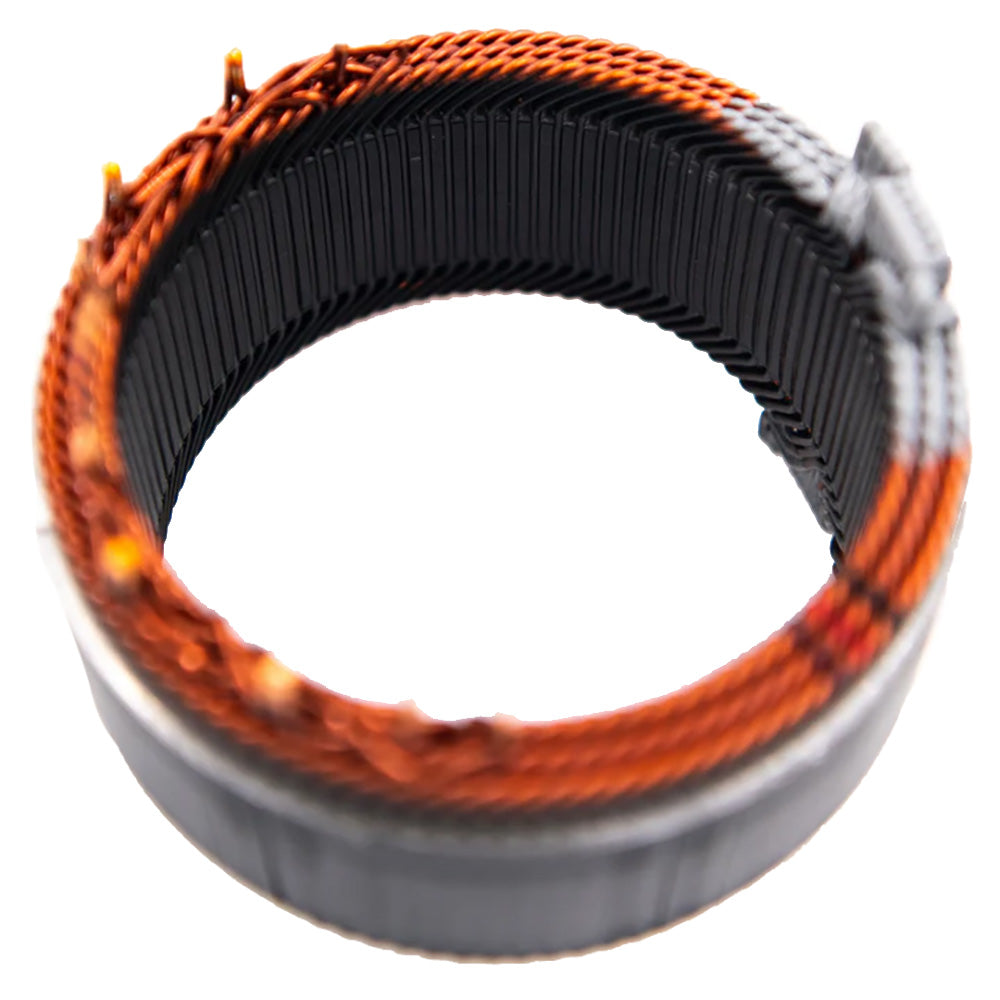

| Stator Size | 138mm |
| Diodes | 6 positive / 6 negative, 80A rated, avalanche |
Physical
| Pulley | 49K6 (6-groove, 49mm) |
|---|---|
| Shaft | 17mm diameter, 25mm long, threaded M17 x 1.5 |
| Battery Post | M8 thread, side mount |
| Weight | 15.89 lbs / 7.2 kg |
| Max Operating Temp | 100°C / 212°F |
| Mount Type | 3.15" J180 Saddle |
| Ground Type | Isolated Ground |
