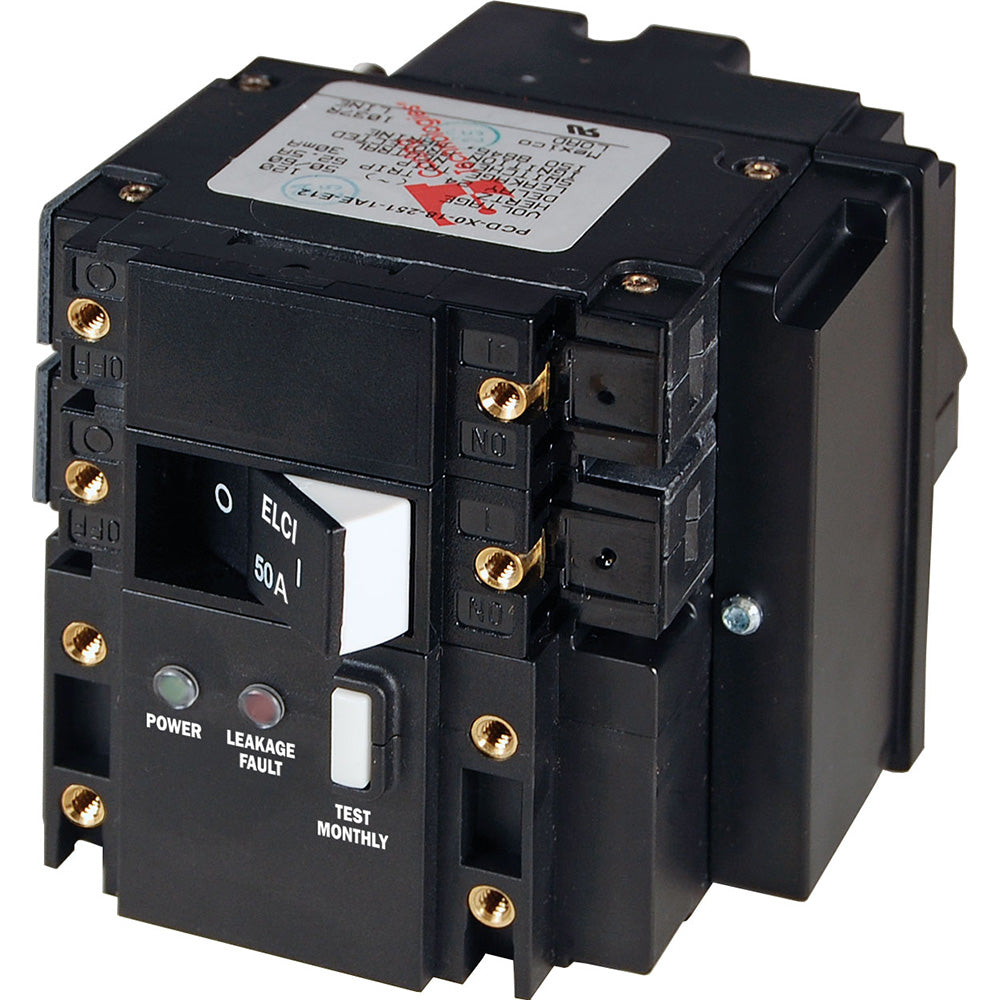

Blue Sea C-Series ELCI Circuit Breaker - Double Pole 240V AC 50A
Regular price
$87799
Unit price
SKU:
BSS/3093
Regular price
$87799
Unit price
Description
Description
C-Series ELCI Circuit Breaker - Double Pole 240V AC 50A
Features:
- Trips on short circuits, overloads, or leakage to ground
- Front panel mount—installed in a power distribution panel
Specifications
Specifications
Identification
| MPN | 3093 |
|---|---|
| Barcode | 632085030933 |
Electrical
| Amperage | 50A |
|---|---|
| Maximum Voltage | 120V AC per pole & 240V AC per pole |
General
| Actuator Style | Flat Rocker |
|---|---|
| Poles | 2 |
| Ignition Protected | Yes |
| Circuit Breaker Type | Magnetic Hydraulic (trip free) |
| Interrupt Capacity | 5000A |
| Minimum Operating Temperature | -35° C |
| Maximum Operating Temperature | 66° C |
| Leakage Trip Amps | 30mA |
Physical
| Mounting Screw | #6-32 Stainless Steel |
|---|---|
| Mounting Screw Torque | 6 in-lb (0.68 Nm) |
| Weight | 1.20 lb. (0.54 kg) |
Control & Connectivity
| Switching Cycles | 10000 |
|---|
