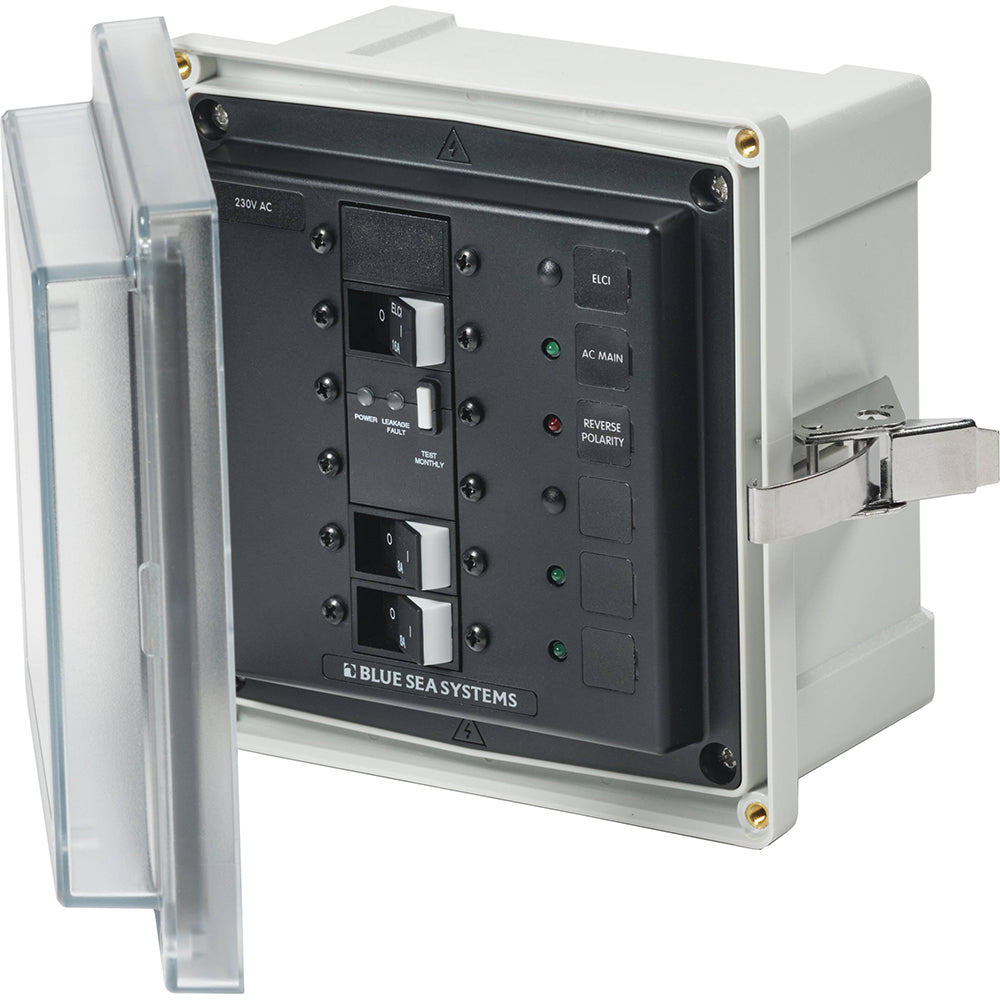

3122 - SMS Panel Enclosure with ELCI (16A) & 2 Branch (8A) - 230V AC
The 3122-panel enclosure is built for Equipment Leakage Circuit Interrupters (ELCI) main circuit breakers and other large frame devices. Meets ABYC E-11 when used with an ELCI Main circuit breaker and mounted within 10' of AC shore power inlet.
Features:
- Blank apertures for custom breaker loading
- Glass-filled polycarbonate base
- Clear cover allows easy view of circuit breaker status
- Overlapping cover for strength and increased gasket protection
- Oversized, formed in place seamless PUR gasket
- Easily removable stainless steel hinge pin for unobstructed installation
- Stainless steel latch secures cover without penetrating the enclosure
- Blank circuit positions accommodate Carling Technologies™ A and C Series Flat Rocker and ELCI Main circuit breakers
- Includes waterproof glands
- LED lights for backlighting and ON indication
Specifications
Specifications
Identification
| MPN | 3122 |
|---|---|
| Barcode | 632085031220 |
General
| Circuit Breaker Type | 1 x ELCI (16A) Main 230V and 2 x Branch (8A) |
|---|
Physical
| Dimensions (Overall) (H x W x D) | 7.6" x 7.4"" x 4.7" (192 x 188 x 120mm) |
|---|---|
| Dimensions (Enclosure) (H x W x D) | 6" x 6" x 4" (152 x 152 x 102mm) |
| LEDs Installed | 1 x Red (Reverse Polarity - 230V AC and 3 x Green ON (230V AC) |
