Blue Sea 3135 - SMS Panel Enclosure w/UL Main & 3 Branch (12/24...
Regular price
$66499
Unit price
SKU:
BSS/3135
Regular price
$66499
Unit price
Description
Description

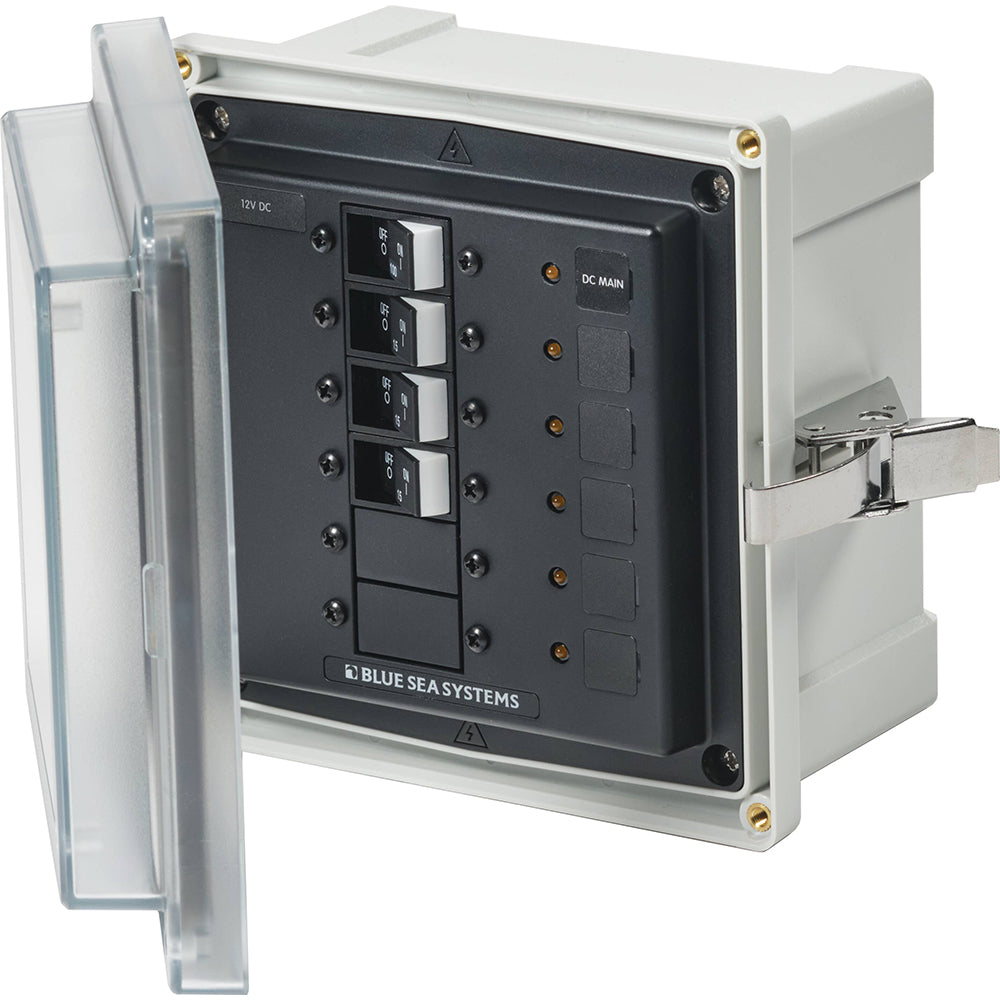

3135 - SMS Panel Enclosure with UL Main & 3 Branch (12/24V) - 12/24V DC
The 3135-panel enclosure for DC circuit breakers and other large frame devices.
Features:
- Blank apertures for custom breaker loading
- Glass-filled polycarbonate base
- Clear cover allows easy view of circuit breaker status
- Overlapping cover for strength and increased gasket protection
- Oversized, formed in place seamless PUR gasket
- Easily removable stainless steel hinge pin for unobstructed installation
- Stainless steel latch secures cover without penetrating the enclosure
- Blank circuit positions accommodate Carling Technologies™ A and C Series Flat Rocker and ELCI Main circuit breakers
- Includes waterproof glands
- LED lights for backlighting and ON indication
Specifications
Specifications
Identification
| MPN | 3135 |
|---|---|
| Barcode | 632085031350 |
General
| Circuit Breaker Type | 1 x UL 489 DC Main and 3 x Branch 12/24V DC (15A)Dimensions (Overall) (H x W x D) - 7.6" x 7.4"" x 4.7" (192 x 188 x 120mm) |
|---|
Physical
| Dimensions (Enclosure) (H x W x D) | 6" x 6" x 4" (152 x 152 x 102mm) |
|---|---|
| LEDs Installed | 6 x Amber ON indicating 12/24V DC |
Reviews (0)
Reviews (0)
In The Box
In The Box
In The Box:
Package Dimensions:
Available Method: Ground
