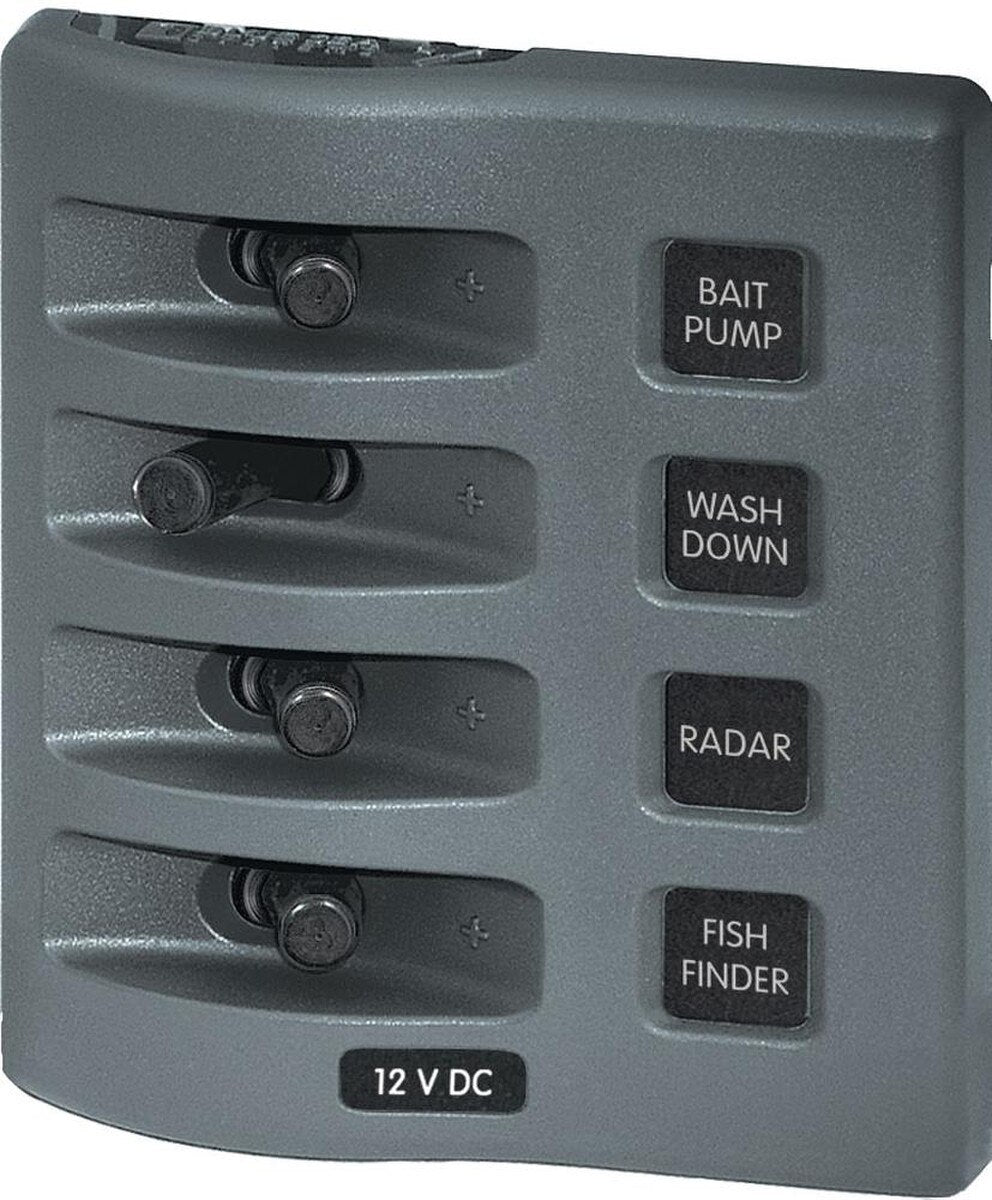

Blue Sea 4305 WeatherDeck® 12V DC Waterproof Switch Panel - 4 Posistion
Need This Product Installed?
Need This Product Installed?
We Offer Mobile Installation From West Palm Beach - Fort Pierce, FL
Blue Sea 4305 WeatherDeck® 12V DC Waterproof Switch Panel - 4 Posis...
Description
Description
- Integrated switch guards reduce the risk of accidental switching
- Panels can be mounted in four different orientations

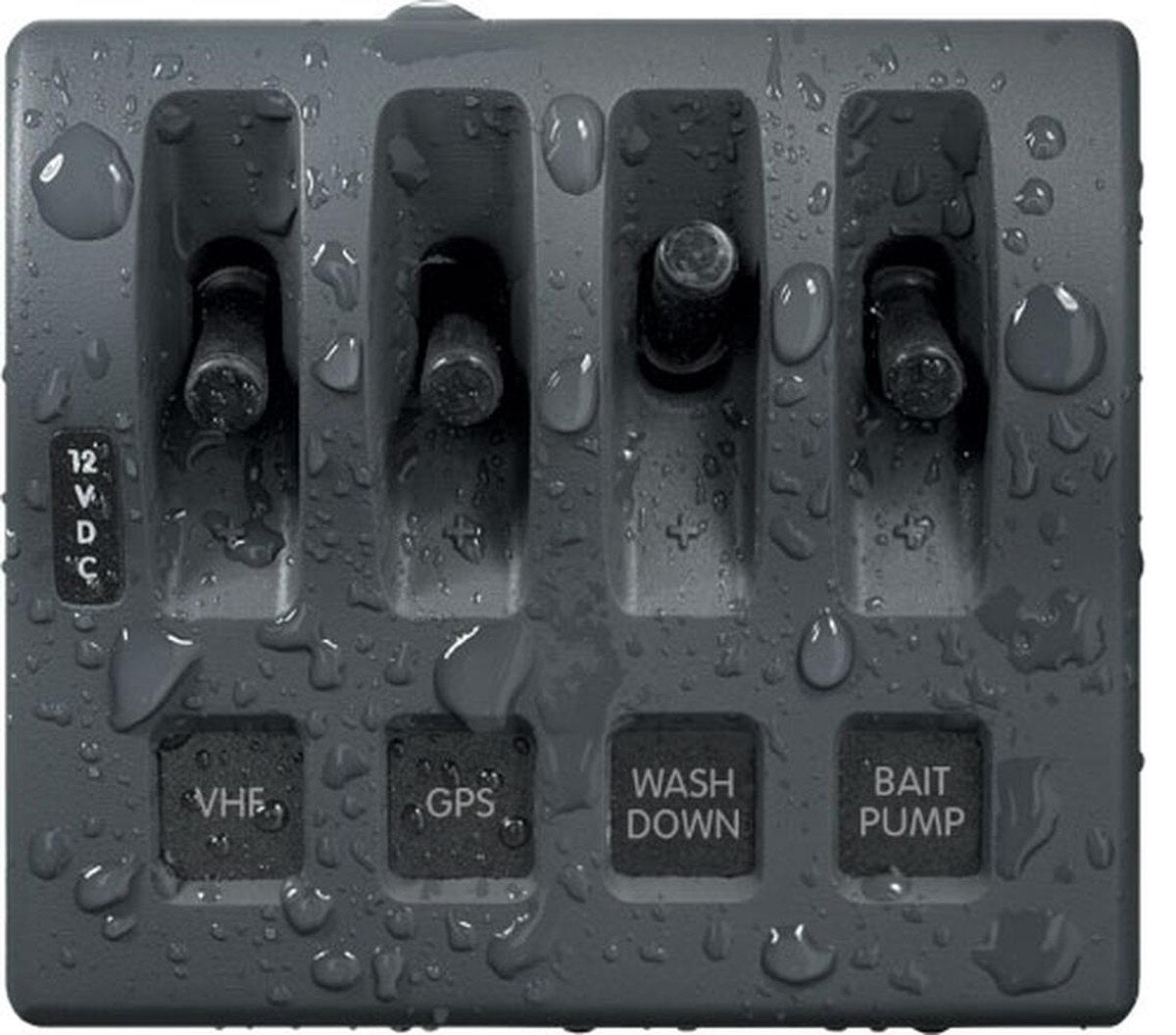

- Panel front rated IP67 when properly mounted with watertight mounting gasket
- UV stabilized weather-resistant faceplate snaps on and off providing access to components and concealing mouting screws
Weatherproof: Waterproof
Positions: 4
Nominal Voltage: 12V DC/24V DC
Circuit Protection: None
Maximum Amperage: 15A @ 12V DC (per circuit)
Panel Cumulative Rating: 45A
Material: Reinforced Polycarbonate
Height: 4.30"(109.22 mm)
Width : 3.88"(98.55 mm)
Depth: 2.50"(63.5 mm)
Weight: 0.90lb (0.41 kg)
Specifications
Specifications
Identification
| MPN | 4305 |
|---|---|
| Barcode | 632085043056 |
Reviews (0)
Reviews (0)
In The Box
In The Box
In The Box:
Package Dimensions:
Available Method: Ground
Support
Support
* ALL WARRANTY IS THROUGH MANUFACTURE *
WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to
