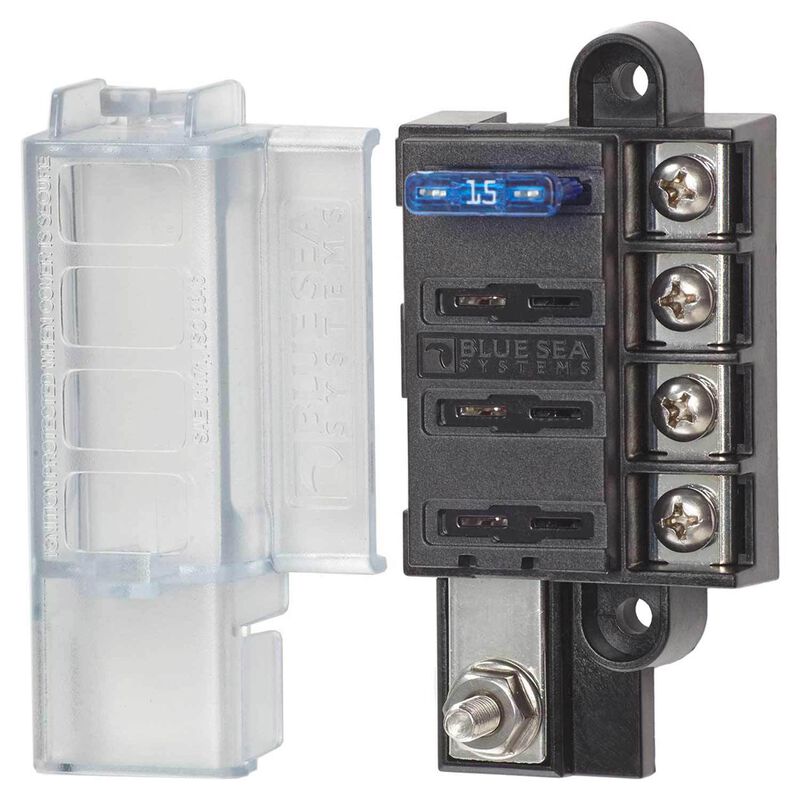

Blue Sea 5045 ST Blade Compact Fuse Blocks - 4 Circuits w/Cover

ST Blade Compact Fuse Blocks - 4 Circuits w/Cover

Provides surface mount circuit protection for ATO®/ATC® Fuses in a compact footprint. The single side design allows wire entry from one side to maximize space.

• Compact common source fuse block

• Accepts ATO® and ATC® fast acting blade fuses

• Single side entry wiring

• Ignition Protected-meets ISO 8846 and SAE J1171 for use in a gasoline engine compartment

• Insulating cover meets ABYC/USCG insulation requirements

• Tin-plated copper buses and fuse clips

• Accepts ring or snap fork type terminals

• Small format standard and custom labels available

Specifications

• Circuits:4

• Maximum Amperage: 100A per block / 30A per circuit

• Maximum Voltage:32V DC

• Mounting: #8 Screw (M4)

• Screw Terminal Torque:#8-32 Screws with captive star lock washer in-lb (0 Nm)

In The Box:

Fuse Block
Cover
(4) Write On Labels

Package Dimensions:

8" x 3" x 2"

Available Method: Ground

* ALL WARRANTY IS THROUGH MANUFACTURE *
