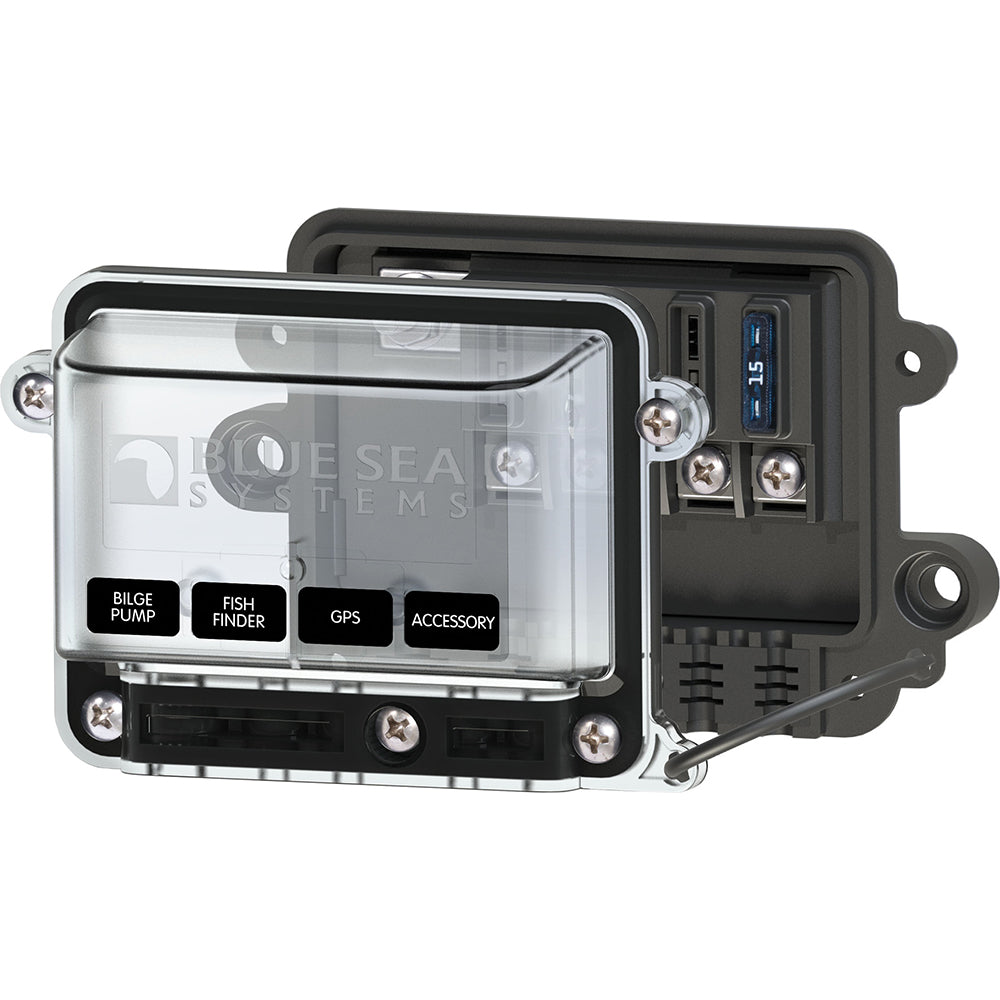

5056 ST-Blade Water Resistant Fuse Block with Cover
Provides water-resistant circuit protection for ATO/ATC fuses & circuit breakers in a compact footprint. The single side nesting design allows for wire entry from one side to maximize space.
Features:
- Water-resistant design with standard ring or fork type terminals allows for simple wiring with standard tools
- Accepts a wide range of wire sizes
- Includes 3 wire plugs to maintain water resistant rating if less than 4 loads are required
- Accepts ATO and ATC fast-acting blade fuses
- Accepts ATO/ATC-Style Low Profile Circuit Breakers
- Nests with other ST-Blade Water-Resistant Fuse Blocks and Water-Resistant 100A Bus Bars to reduce wire
- Insulating cover meets ABYC/USCG insulation requirements
- Tin-plated copper busses and fuse clips
- Includes four write-on circuit labels
- Small format standard and custom labels available
- Spare fuse and fastener storage in cover
Specifications
Specifications
Identification
| MPN | 5056 |
|---|---|
| Barcode | 632085050566 |
Electrical
| Amperage | 80A per block/25A per circuit |
|---|---|
| Maximum Voltage | 32V DC |
General
| Bus Material | Tin-Plated Copper C11000 |
|---|---|
| Screw Terminal Type | #8-32 Screws with captive star lock washer |
Physical
| Mounting Holes | Clearance for 1/4" (6mm) screws |
|---|---|
| Wire Size | (1) 8 AWG to 4 AWG - Input/(5) 16 AWG to 10 AWG - Load |
