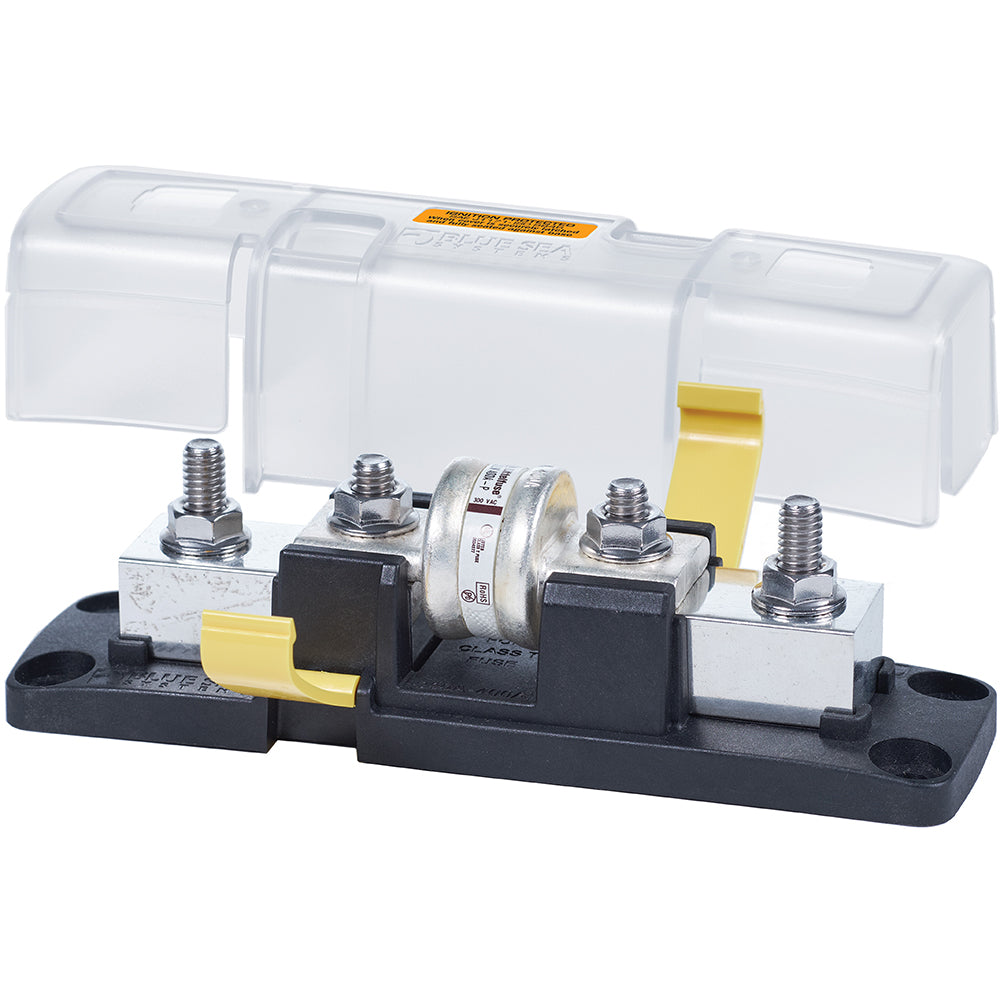

Class T Fuse Block with Insulating Cover - 225 to 400A
Allows the use of Class T fuses for fast acting circuit protection of inverters and other electronics
- Four stud design provides ample access around connecting stud to install large cable lugs without obstruction from the fuse
- Insulating cover satisfies ABYC/USCG insulation requirements
- Cover breakouts allow wire access in any direction
- Stud design ensures secure fuse mounting even with high heat
- Stainless steel studs provide resistance to corrosion and high torque
- One-piece stainless flange nuts ensure safe and secure connections
- UL 94-V0 base resists high heat
Specifications
Specifications
Identification
| MPN | 5502100 |
|---|---|
| Barcode | 632085550219 |
Physical
| Cable Size | Up to 4/0 AWG |
|---|---|
| Fuse Mounting Blocks | Tin-Plated Copper |
| Terminal Stud Size | 5/16"-18 (M8) |
General
| Ignition Protected | Yes |
|---|
Electrical
| Maximum Amperage | 320A |
|---|---|
| Maximum Voltage | 160V DC |
