SKU:
BSS/7316
Regular price
$11799
Unit price
Description
Description

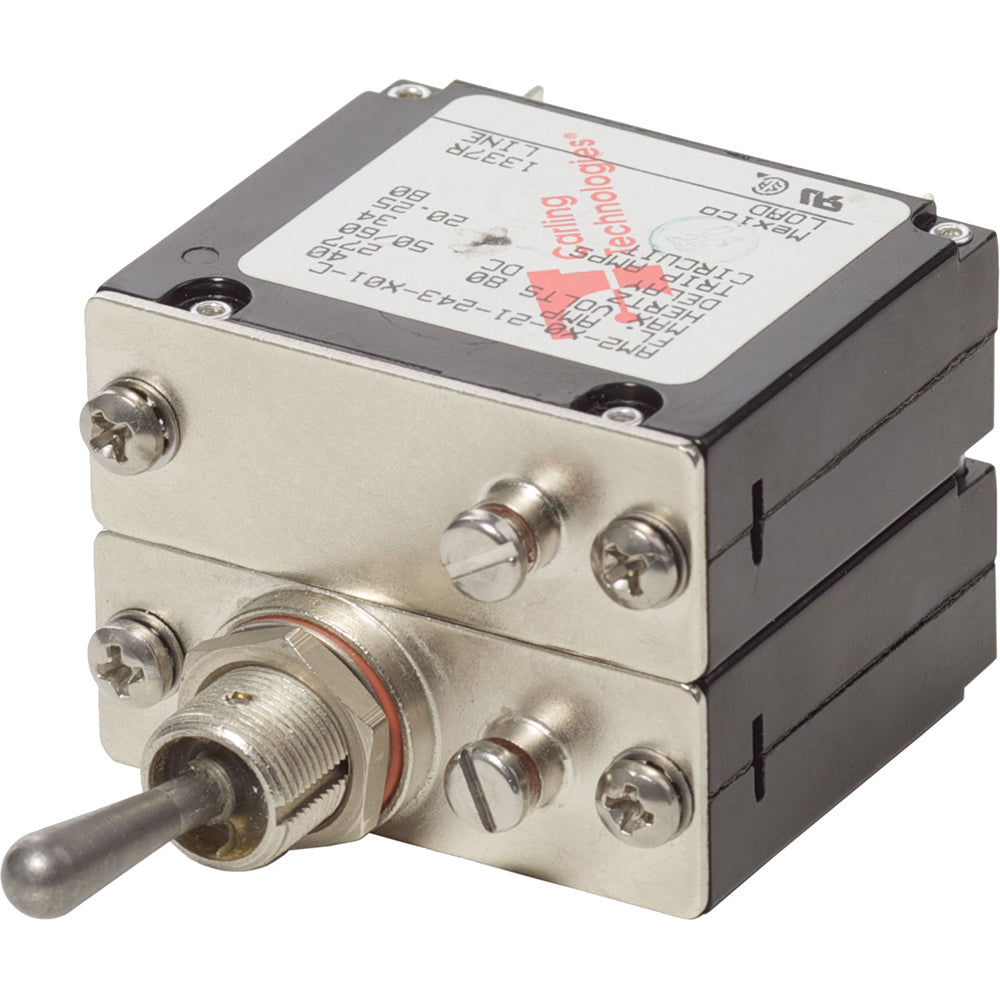

7316 COTS Military Grade A-Series 40 Amp
May be suitable for use when military specifications are required under CFR 46.
Specifications
Specifications
Identification
| MPN | 7316 |
|---|---|
| Barcode | 632085073169 |
Electrical
| Amperage | 40A |
|---|---|
| Max Voltage | 277V AC, 65V DC |
General
| Actuator Style | Metal Toggle |
|---|---|
| Poles | 2 |
| Circuit Breaker Type | Magnetic Hydraulic - Trip Free |
| Interrupt Capacity | 1500 A AC, 7500A DC |
| Min Operating Temp | -40°C |
| Max Operating Temp | 85°C |
| Screw Terminal Torque | 14"-lb |
| Terminal Screw | #10-32 SS |
| Note 1 | UL 1077 |
Physical
| Mounting Boss | 1/2-32 Hex Nut SS |
|---|---|
| Mounting Nut Torque | 30"-lb |
| Weight | 0.13lb (0.06 kg) |
Control & Connectivity
| Switching Cycles | 6000 Electrical/4000 Mechanical |
|---|
