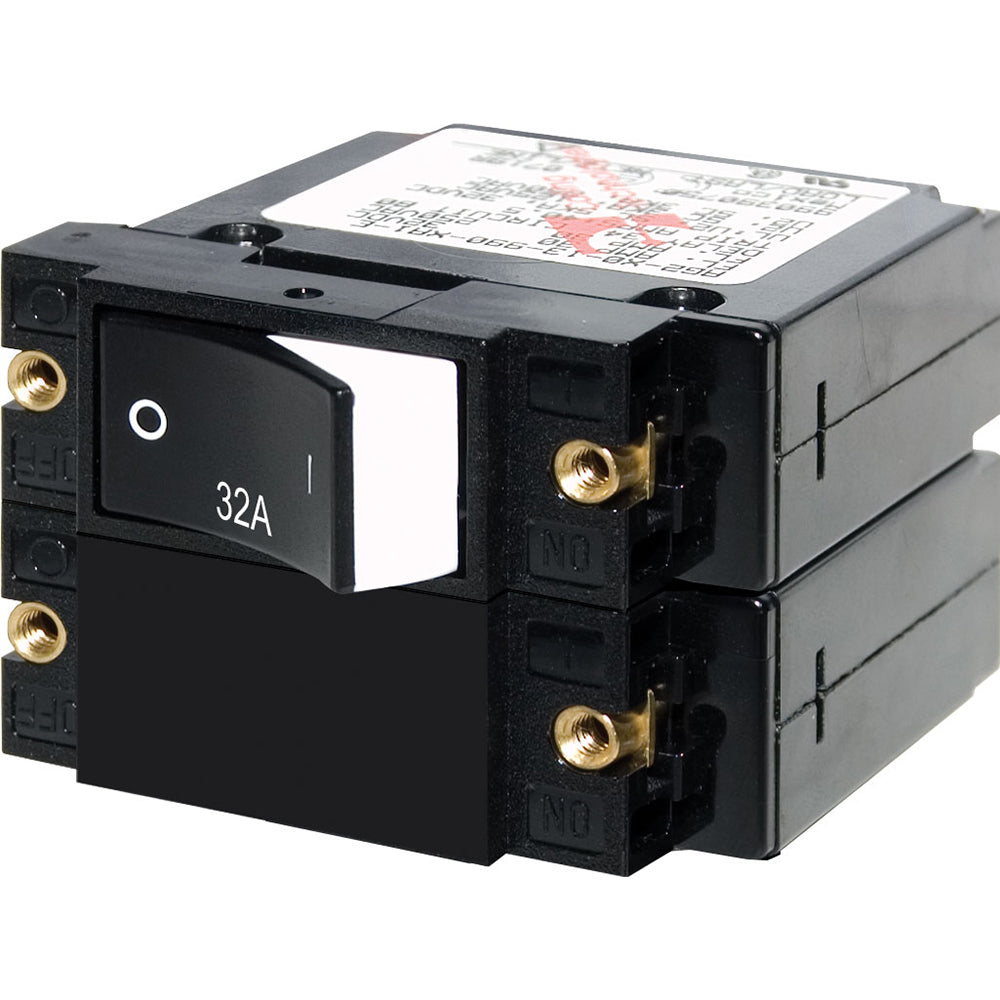

A-Series Raised Rocker Circuit Breaker - Double Pole - 32A
Features:
- Color actuator indicates "OFF" position
- "Trip Free" design cannot be held "ON" during a fault current condition
- International ON/OFF symbols support vertical or horizontal mounting
Specifications
Specifications
Identification
| MPN | 7575 |
|---|---|
| Barcode | 632085075750 |
Electrical
| Amperage | 32A AC / 32A DC |
|---|---|
| Maximum Voltage | 120V AC / 240V AC / 32V DC |
General
| Actuator Style | Raised Rocker |
|---|---|
| Poles | 2 |
| Circuit Breaker Type | Magnetic Hydraulic - trip free |
| Interrupt Capacity | 3000A @ 240V AC / 1500A @ 240V AC[TUV] / 5000A @ 32V DC |
| Minimum Operating Temperature | -40° C |
| Maximum Operating Temperature | 85° C |
| Screw Terminal Torque | 14 in-lb (1.58 Nm) |
| Terminal Screw | #10-32 Stainless Steel |
Physical
| Mounting Screw | #6-32 Stainless Steel |
|---|---|
| Mounting Screw Torque | 6 in-lb (0.68 Nm) |
| Weight | 0.38lb (0.17 kg) |
Control & Connectivity
| Switching Cycles | 10000 |
|---|
