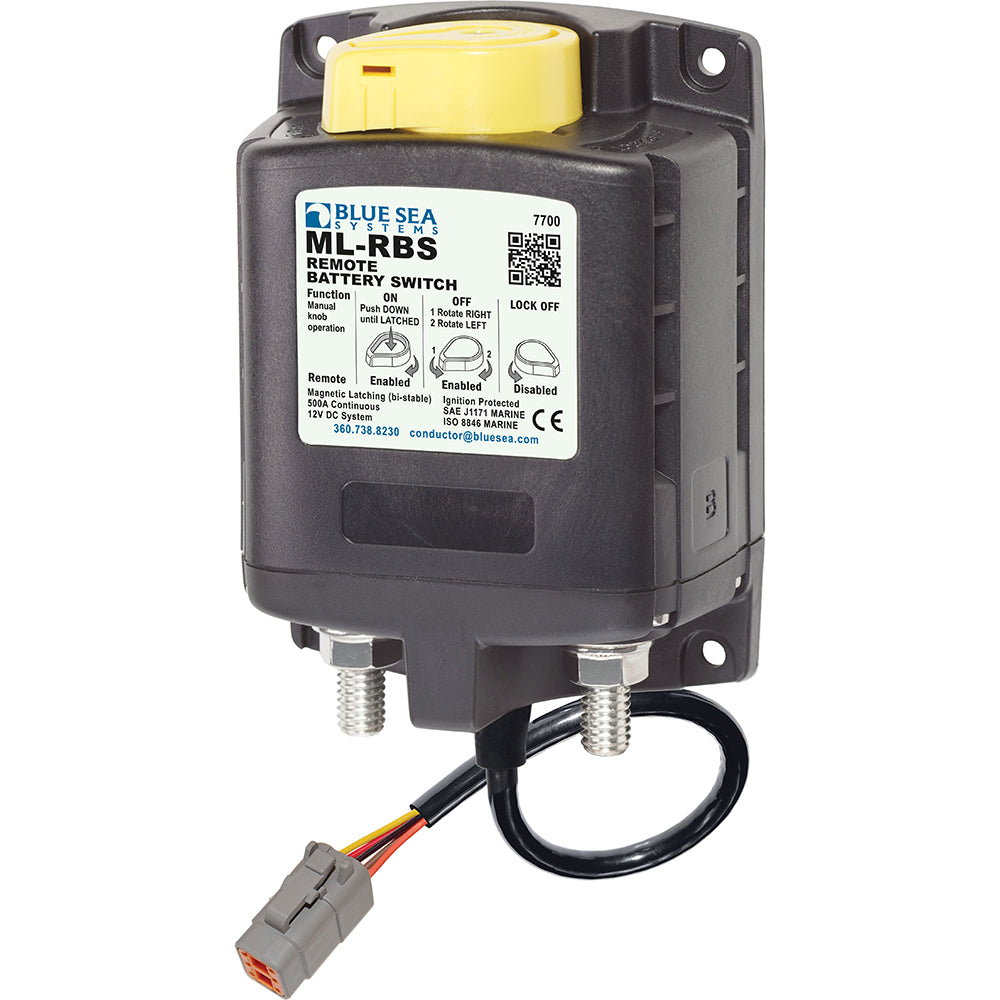

7700100 ML Solenoid 12V 500A with Manual Control & Deutsch Connector
500 Amp magnetic latching switch provides high amperage switching under load, manually or from remote locations.
Features:

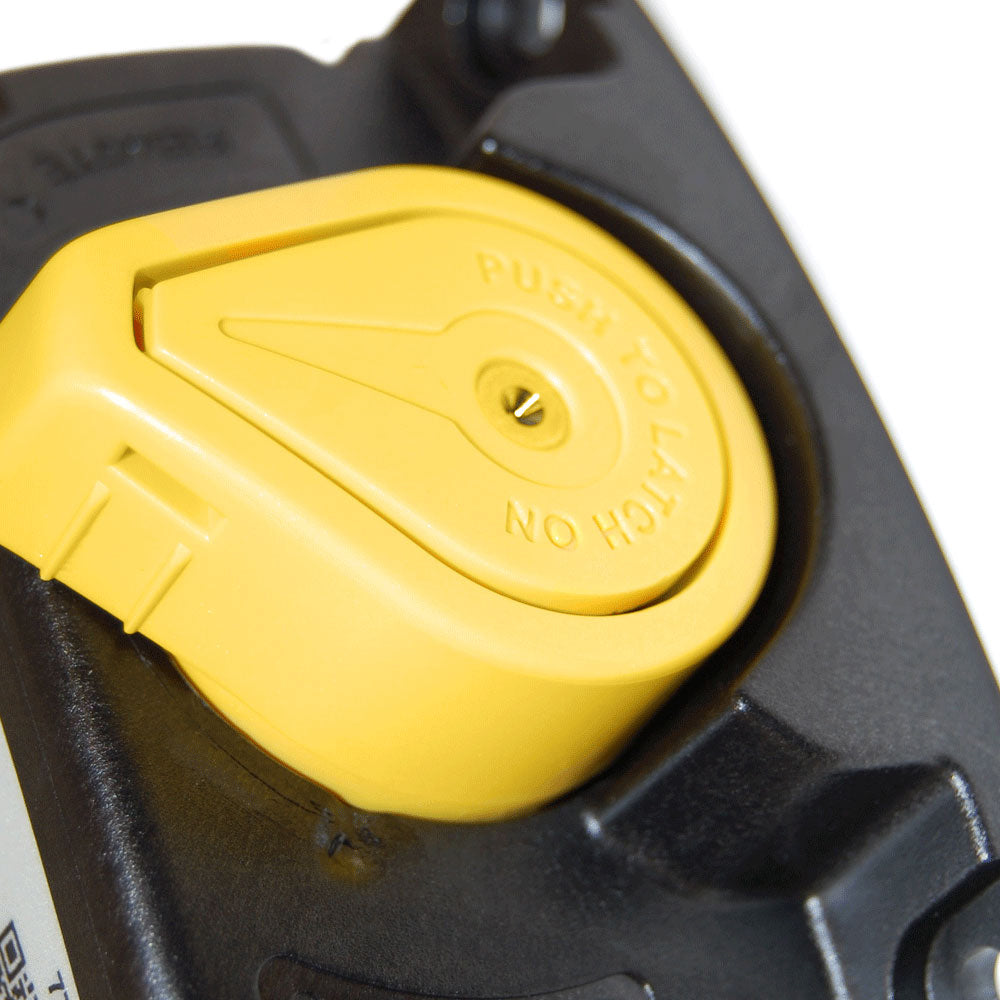

- Manual override knob provides an added level of safety allowing control with or without power and offering LOCKED OFF capability for servicing
- LED output to remotely indicate switch state - requires optional LED
- 3/8"-16 tin-plated copper studs for maximum conductivity and corrosion resistance
- 7/8" (22 mm) stud length accepts multiple cable terminals
- Label recesses for circuit identification
- Silver alloy contacts provide high reliability for switching live loads
Specifications
Specifications
Identification
| MPN | 7700100 |
|---|---|
| Barcode | 632085770013 |
General
| Control Circuit Connection | Deutsch DTM |
|---|---|
| Coil Function | Bi-Stable |
| Terminal Stud Torque | 140 in-lb (15.82 Nm) |
| Continuous Rating | 500A |
| Intermittent Rating | 700A (5 min) |
| Cranking Rating 30 Seconds | 1450A DC |
| Mechanical Endurance | 100,000 Cycles |
Electrical
| Nominal Voltage | 12VDC |
|---|---|
| Amperage Operating Current Continous | 0mA |
| Live Current Switching | 300A@12VDC |
Physical
| Mounting | #10 |
|---|---|
| Cable Size to Meet Ratings | 2x (4/0) |
| Terminal Ring Diameter Clearance | 1.18" (29.97 mm) |
| Terminal Stud Length | 0.875" (22.23 mm) |
| Terminal Stud Size | 3/8" - 16 (M10) |
| Weight | 1.75lb (0.79 kg) |
Control & Connectivity
| Master Control Switch Capability | No |
|---|
