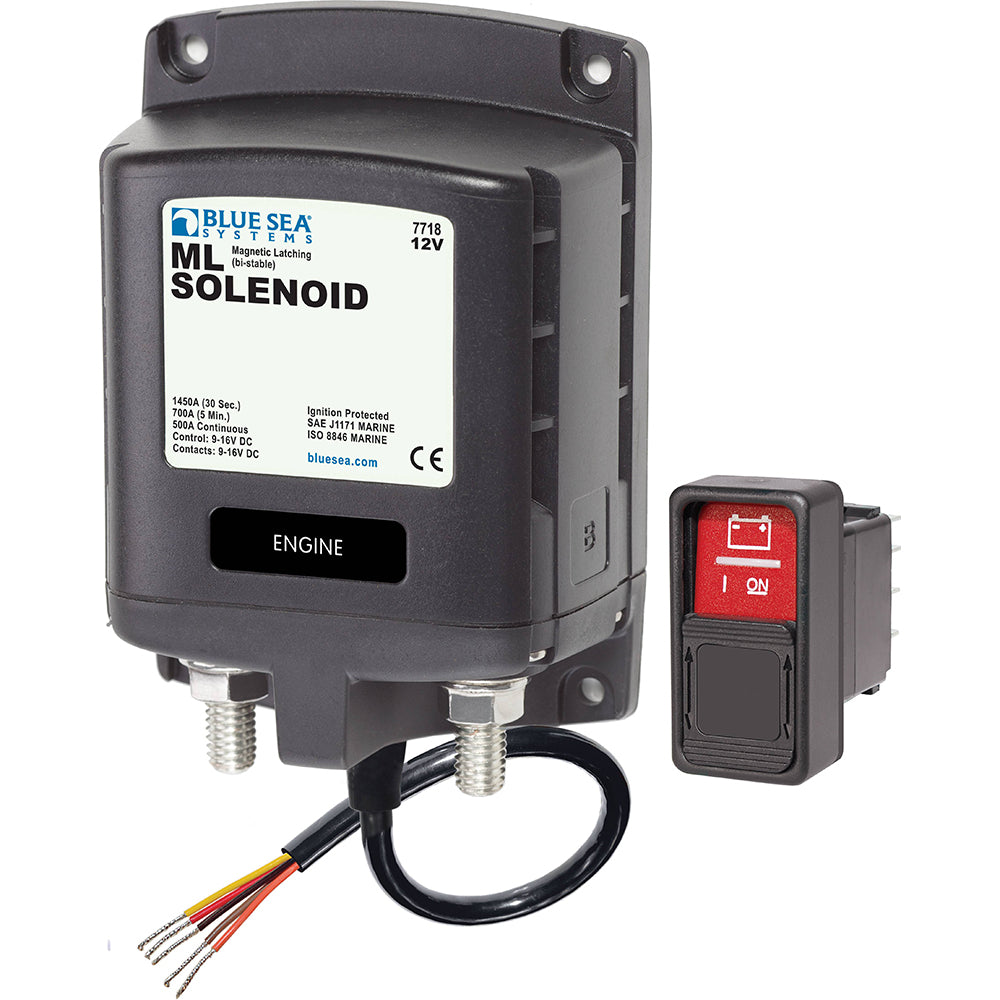

7718 - ML-Series Solenoid Switch - Stripped Wire - 12V
For applications where sustained control signals are needed to emulate a normally open relay with a lower current draw.
Features:
- Silver alloy contacts provide high reliability for switching live loads
- LED output to remotely indicate switch state
- 3/8"- 16 tin-plated copper studs for maximum conductivity and corrosion resistance
- One-piece stainless flange nuts for safe and secure connections
- Label recesses for circuit identification
Specifications
Specifications
Identification
| MPN | 7718 |
|---|
Electrical
| Control Circuit Voltage | 10.1 to 16.5 V DC |
|---|---|
| Nominal Voltage | 12V DC |
| Amperage Operating Current | OFF - 8mA and ON 13mA |
General
| Control Circuit Connection | Tinned wire |
|---|---|
| Coil Function | Auto-releasing |
| Mechanical Endurance | 100,000 Cycles |
Physical
| Terminal Ring Diameter Clearance | 1.18" (30mm) |
|---|---|
| Terminal Stud Length | .875" (22mm) |
| Terminal Stud Size | 3/8" - 16 (M10) |
