SKU:
BSS/8084
Regular price
$1,62099
Unit price
Description
Description

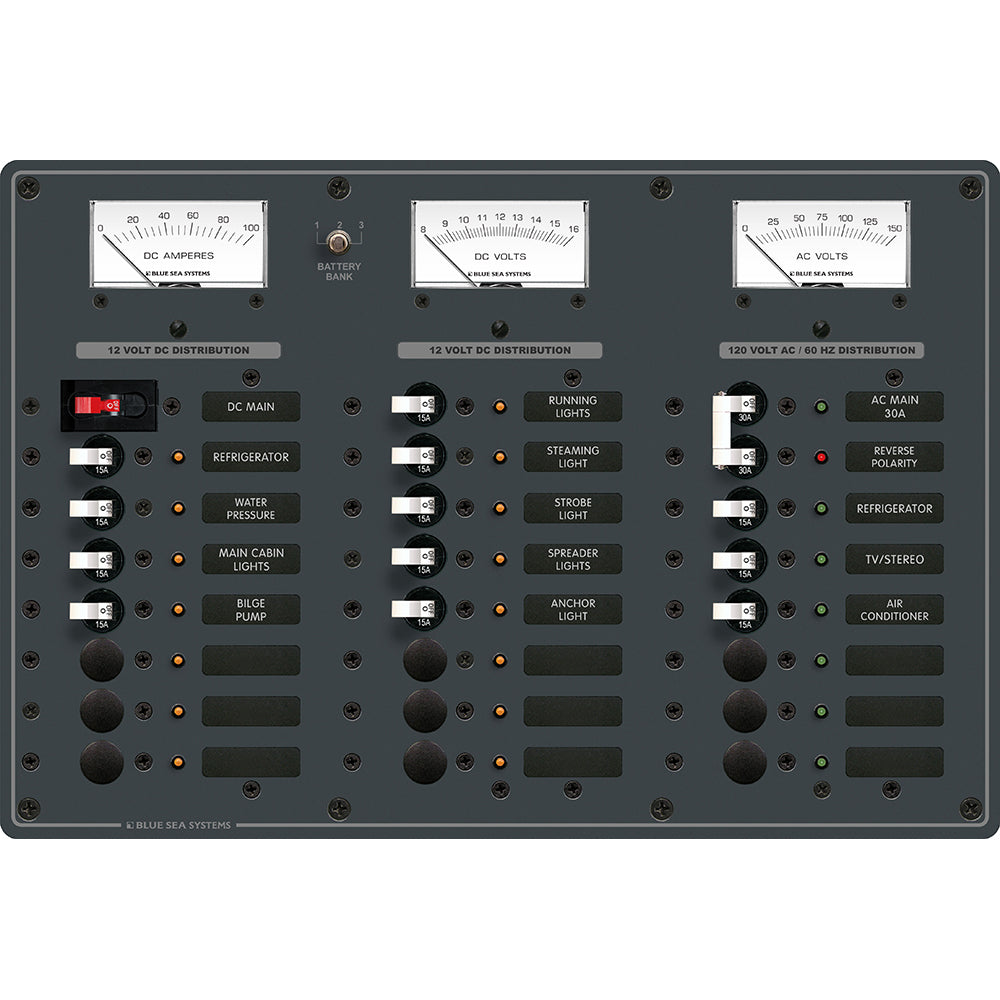

8084 AC Main +6 Positions/DC Main +15 Positions Toggle Circuit Breaker Panel - White Switches
Features:
- Includes set of 30 common AC and 30 common DC labels
- All AC and DC buses installed, fully pre-wired
- Label backlighting pre-installed
- All LEDs installed
- Maximum panel Amperage: 100 Amperes DC / 50 Amperes AC
AC Features:
- Red reverse polarity indicating LED
- Ready for installation of optional 4029 AC Isolation Cover
- 9353, 0-150 Volt AC Voltmeter
DC Features:
- 100 Amp C-Series circuit breaker provides main circuit protection and switching for DC branch circuits
- 8003, 8-16 Volt DC Voltmeter
- 8017, 0-100 Amp DC Ammeter
- Owner upgradeable to 24 Volts with 8240, 18-32 Volt DC Voltmeter
Specifications
Specifications
Identification
| MPN | 8084 |
|---|---|
| Barcode | 632085080846 |
General
| AC Positions | Main +6 |
|---|---|
| DC Positions | Main +15 |
| Note 1 | 120 Volts AC |
| Note 2 | 12 Volts DC |
| (1) 30A | (3) 15A AC Circuit Breakers |
| (1) 100A | (9) 15A DC Circuit Breakers |
