SKU:
BSS/8086
Regular price
$2,85599
Unit price
Description
Description

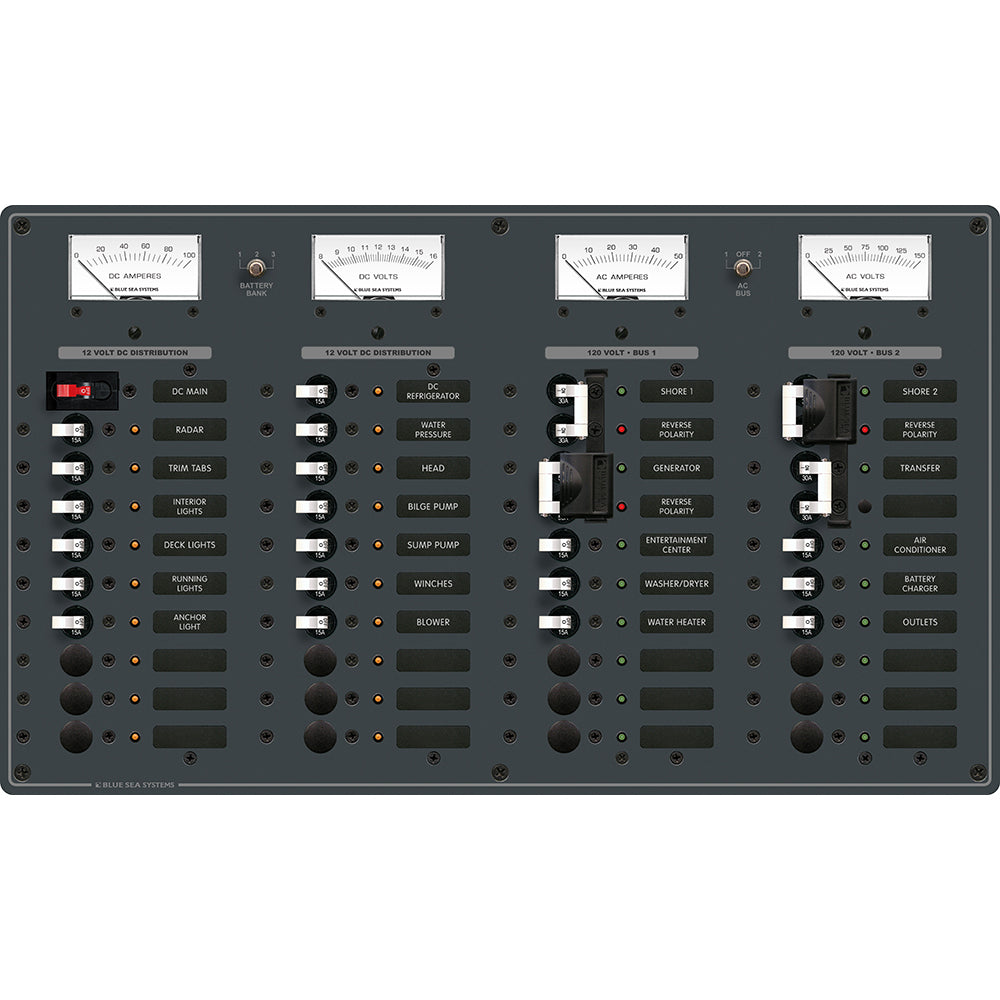

8086 AC 3 Sources +12 Positions/DC Main +19 Position Toggle Circuit Breaker Panel - White Switches
Features:
- Includes set of 30 common AC and 30 common DC labels
- All AC and DC buses installed, fully pre-wired
- Label backlighting pre-installed
- All LEDs installed
- Maximum panel Amperage
- 100 Amperes DC
- 50 Amperes AC
AC Features:
- Two separate AC load groups with transfer switch to combine into one load group
- Switch allows Ammeter and Voltmeter to read either AC load group
- Reverse polarity indicators on both AC load groups
- Ready for installation of optional 4031 AC Isolation Cover
- 9353, 0-150 Volt AC Voltmeter
- 9630, 0-50 Amp AC Ammeter
DC Features:
- 100 Amp C-Series circuit breaker provides main circuit protection and switching for DC branch circuits
- 8003, 8-16 Volt DC Voltmeter
- 8017, 0-100 Amp DC Ammeter
Specifications
Specifications
Identification
| MPN | 8086 |
|---|---|
| Barcode | 632085080860 |
General
| AC Positions | Source Selectors +12 |
|---|---|
| DC Positions | Main +19 |
| Note 1 | 120 Volts AC |
| Note 2 | 12 Volts DC |
| (3) 30A | (1) 50A - (6) 15A AC Circuit Breakers |
| (1) 100A | (13) 15A DC Circuit Breakers |
Reviews (0)
Reviews (0)
In The Box
In The Box
In The Box:
Package Dimensions:
Available Method: Ground
