Blue Sea Systems  |  SKU: BSS/6010  |  Barcode: 632085060107

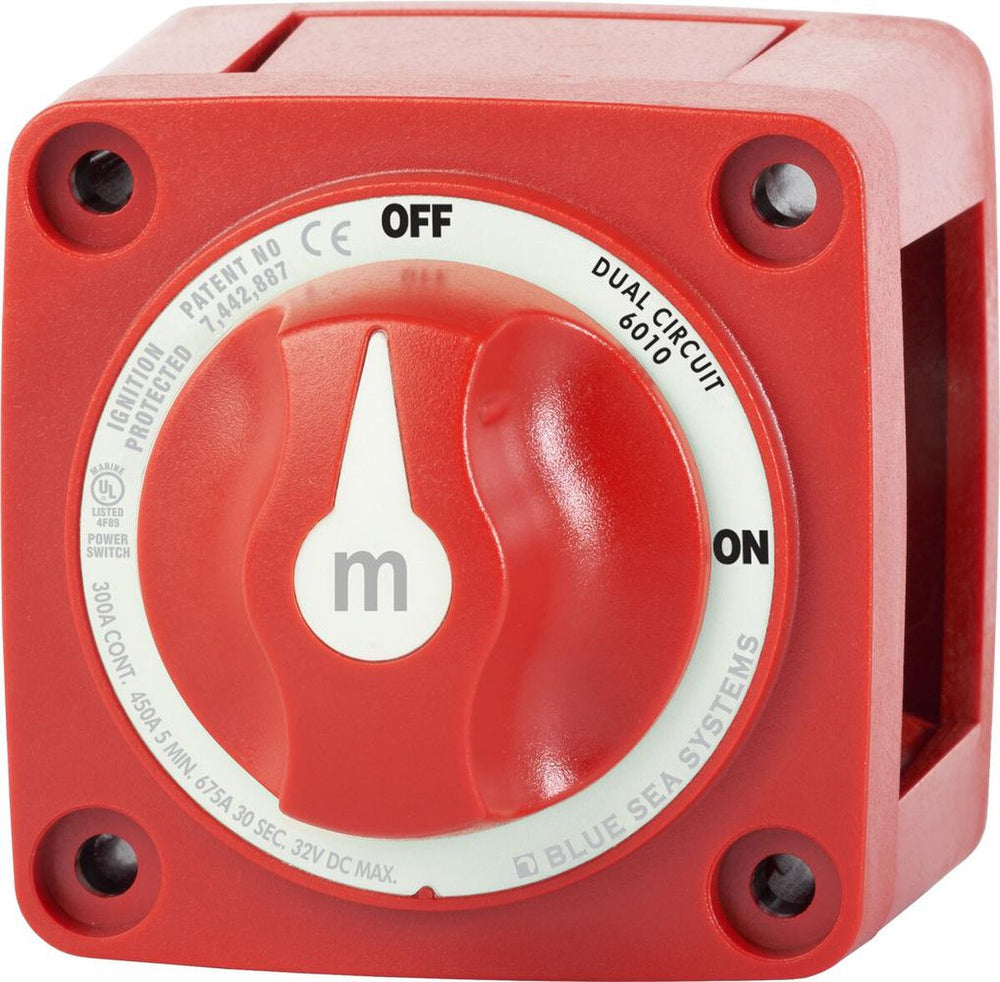

M-Series Battery Switch - On/Off/ Dual Circuit

Red On/Off/ Dual Circuit Battery Switch

$7999
Options
M-Series Battery Switch - On/Off M-Series Battery Switch - On/Off M-Series Battery Switch - On/Off M-Series Battery Switch - On/Off Black On/Off Battery Switch M-Series Battery Switch - On/Off Dual Circuit Plus M-Series Battery Switch - On/Off Dual Circuit Plus M-Series Battery Switch - On/Off Dual Circuit Plus M-Series Battery Switch - On/Off Dual Circuit Plus Black Off/On/Combine Battery Switch M-Series Battery Switch - On/Off/ Dual Circuit M-Series Battery Switch - On/Off/ Dual Circuit Red On/Off/ Dual Circuit Battery Switch M-Series Battery Switch - On/Off/ Dual Circuit M-Series Battery Switch - On/Off/ Dual Circuit Black On/Off/ Dual Circuit Battery Switch M-Series Battery Switch - On/Off/On M-Series Battery Switch - On/Off/On Red On/Off/On Battery Switch M-Series Battery Switch - On/Off/On M-Series Battery Switch - On/Off/On Black On/Off/On Battery Switch M-Series Battery Switch - On/Off/On/Both M-Series Battery Switch - On/Off/On/Both M-Series Battery Switch - On/Off/On/Both M-Series Battery Switch - On/Off/On/Both Black On/Off/On/Both Battery Switch

Need This Product Installed?

We Offer Mobile Installation From West Palm Beach - Fort Pierce, FL

Click Here To Set Up Your Installation

Description

Simultaneously switches two isolated battery banks

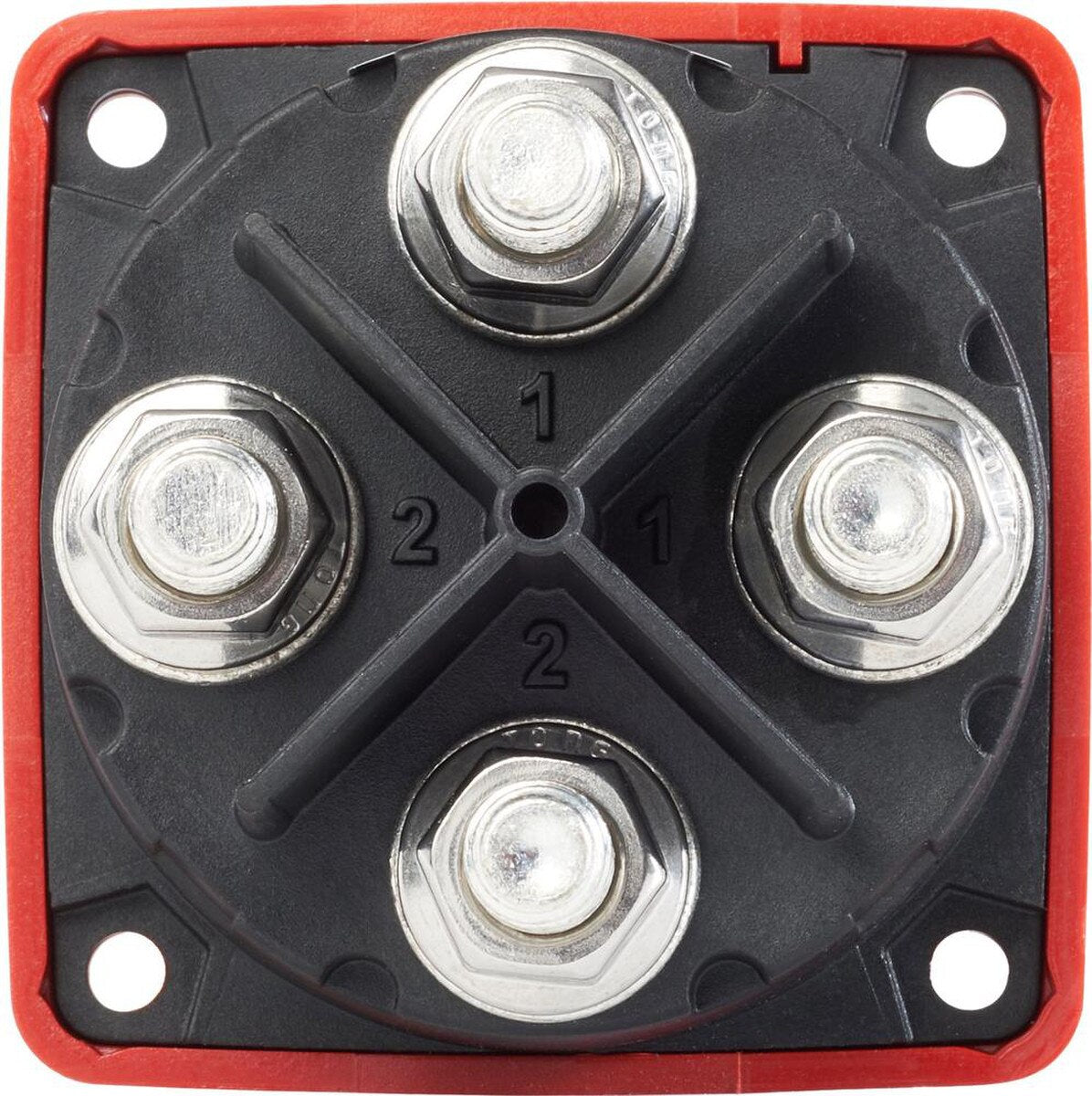

  • Tin-plated copper studs for maximum conductivity and corrosion resistance
  • Studs accept 3/8 (M10) ring terminals
  • 7/8 in (22mm) stud length accepts multiple cable terminals
  • Blue Sea Systems one-piece terminal stud design never loosens over time
  • Isolating cover with snap-on sections protects rear contacts
  • Case design allows surface or rear panel mounting
  • Waterproof - rated IP66 from water projected in powerful jets
  • One-piece stainless flange nuts ensure safe and secure connections
  • Breakout tabs allow wire access in any direction

Specifications
  • Product Series
    M
  • MPN
    6010
  • Physical
    Dimensions: 2.95" x 2.95" x 3.32" (74.93 mm x 74.93 mm x 84.34 mm)
    Weight: 0.65 lbs (0.29 kg)
  • Mounting
    Type: Surface, Flush, Rear Mounting
    Screw Holes: #10
  • Power
    Max Voltage: 32v DC
    Continuous Current: 300 A
    Intermittent Current (5min): 450 A
    Cranking Current: 675 A
  • Connectivity
    Studs: 3/8"-16
  • Other
    Alternator Field Disconnect: No
  • IP Rating
    IP66
  • Certifications
    Ignition Protected, CE, ISO 8846, SAE J1171, UL 1107, UL 1500

Reviews (0)

In The Box

In The Box:

Battery Switch
Documentation

Package Dimensions:

Support/Warranty

Product Support:

Subscription Information:

Release Date:

Warranty:



* ALL WARRANTY IS THROUGH MANUFACTURE *
