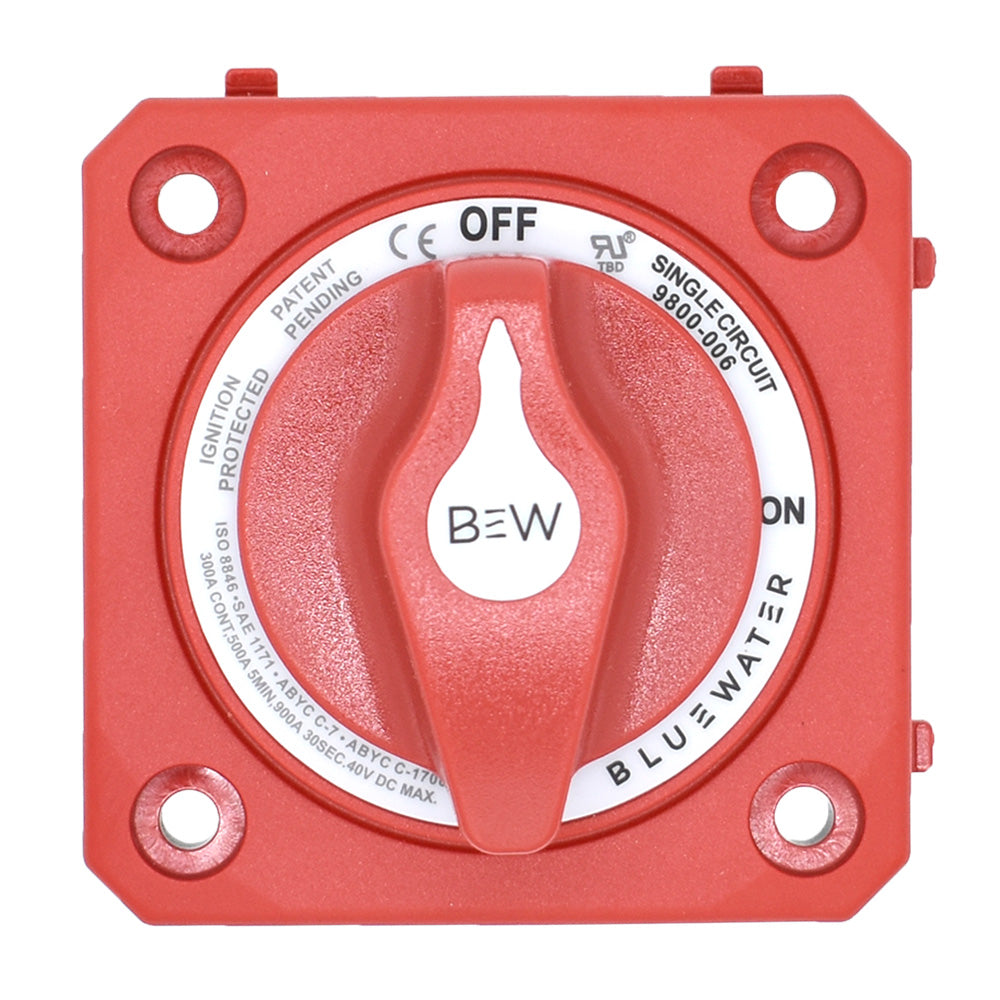

On/Off Switch Battery Switch - Panel Mount - Red
Simple, reliable, and built for tough environments, this On/Off Battery Switch provides secure control of power to a single circuit. It’s ideal for isolating batteries or equipment when not in use, helping to ensure safety and prevent unwanted battery drain.
Ignition-protected and safe for use aboard gasoline-powered boats, this switch is well-suited for both marine and RV applications. The versatile case design allows for surface, front panel, or rear panel mounting.
Constructed from all non-corrosive marine-grade metals and molded in reinforced polycarbonate, it delivers long-lasting durability in harsh conditions. Tactile knob textures allow users to confirm switch position by feel, and the included international ON/OFF label and ICON label set make circuit identification easy and intuitive.
Specifications
Specifications
Identification
| MPN | 9800-006-10 |
|---|---|
| Barcode | 810196331143 |
General
| Continuous Rating | 300 Amps DC |
|---|---|
| Intermittent Rating | 500 Amps DC (5 min) |
| Cranking Rating | 900 Amps DC (30 sec) |
Electrical
| Max Voltage | 40VDC |
|---|
Physical
| Cable Size | 4/0 AWG |
|---|
