EGIS  |  SKU: EGIS/2012B

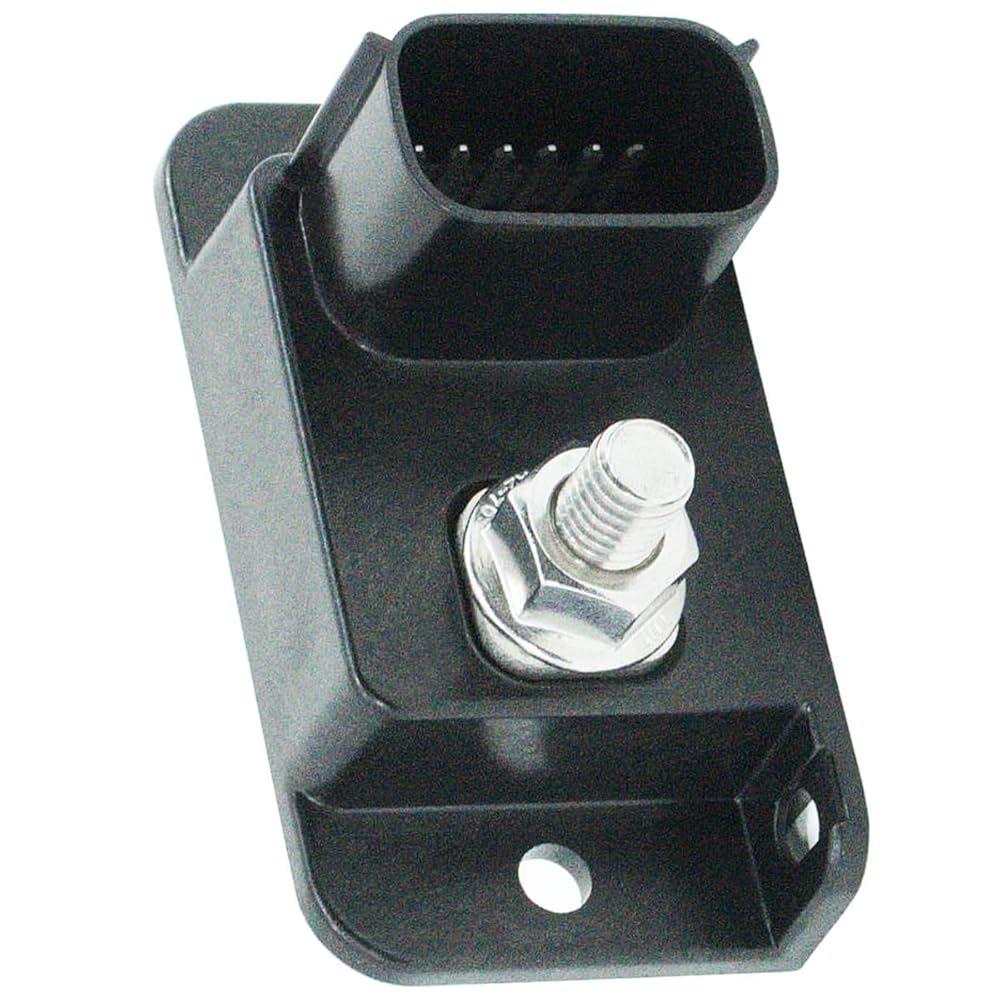

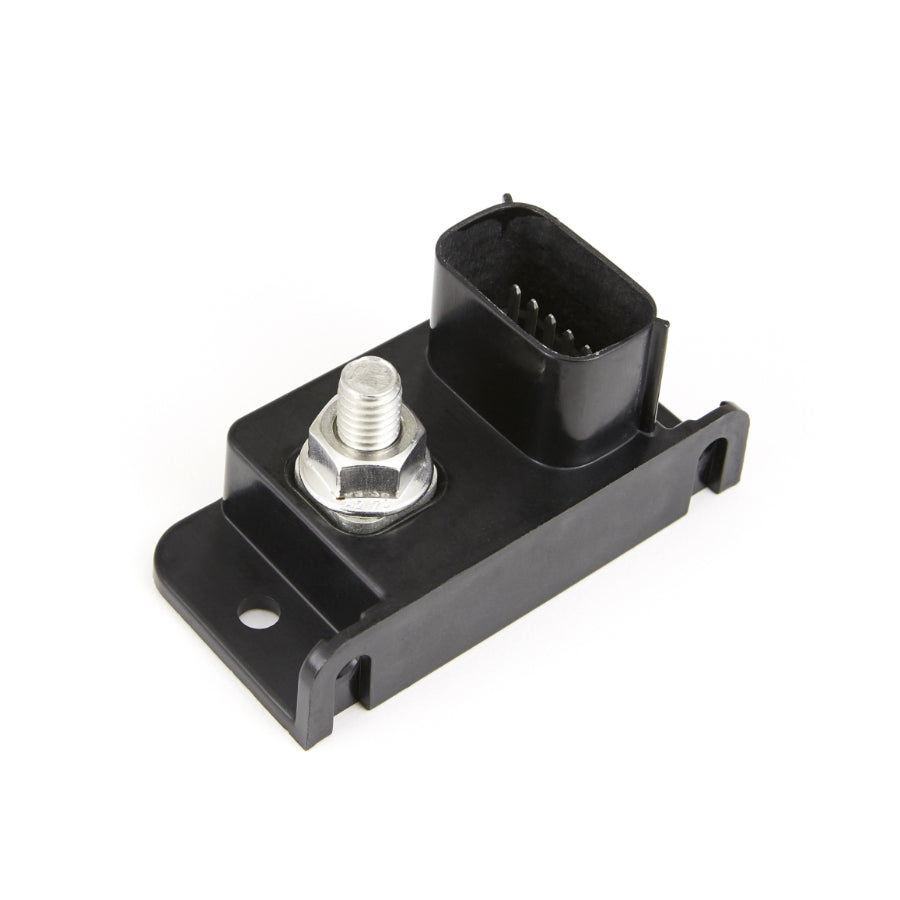

12-Circuit Sealed BusBar

12-Position Sealed BusBar

$2500
Shipping calculated at checkout.

Improves robustness of ground return connections  that are otherwise exposed to corrosion & shorting with exposed  busbars.

Eliminates unreliable butt splice connections and allows for removable pull and test of circuit for system inspection and diagnosis while allowing for sealed connections.

Reduces the mounting space required for busbar and wire connections  with a very compact footprint and two mounting orientations, increasing potential locations for installation.

BusBar
Barcode: 304841518435
1.5 lb
  • Power
    Voltage: 0-36v DC
    Max Amperage:
    - Circuit: 22A
    - Block: 200A
  • Other
    Horizontal Mounting: For spaces where minimum height from mounting surface is available.

    Vertical Mounting: Provides minimal mounting footprint, for spaces where multiple blocks are mounted adjacent to each other

    Harsh Environment Rated: Stainless steel hardware, tin plated copper alloy, sealed enclosure and connector

    Internal Connections: High-Amp M6 terminal provides ability to return ground or distribute positive power as needed.
