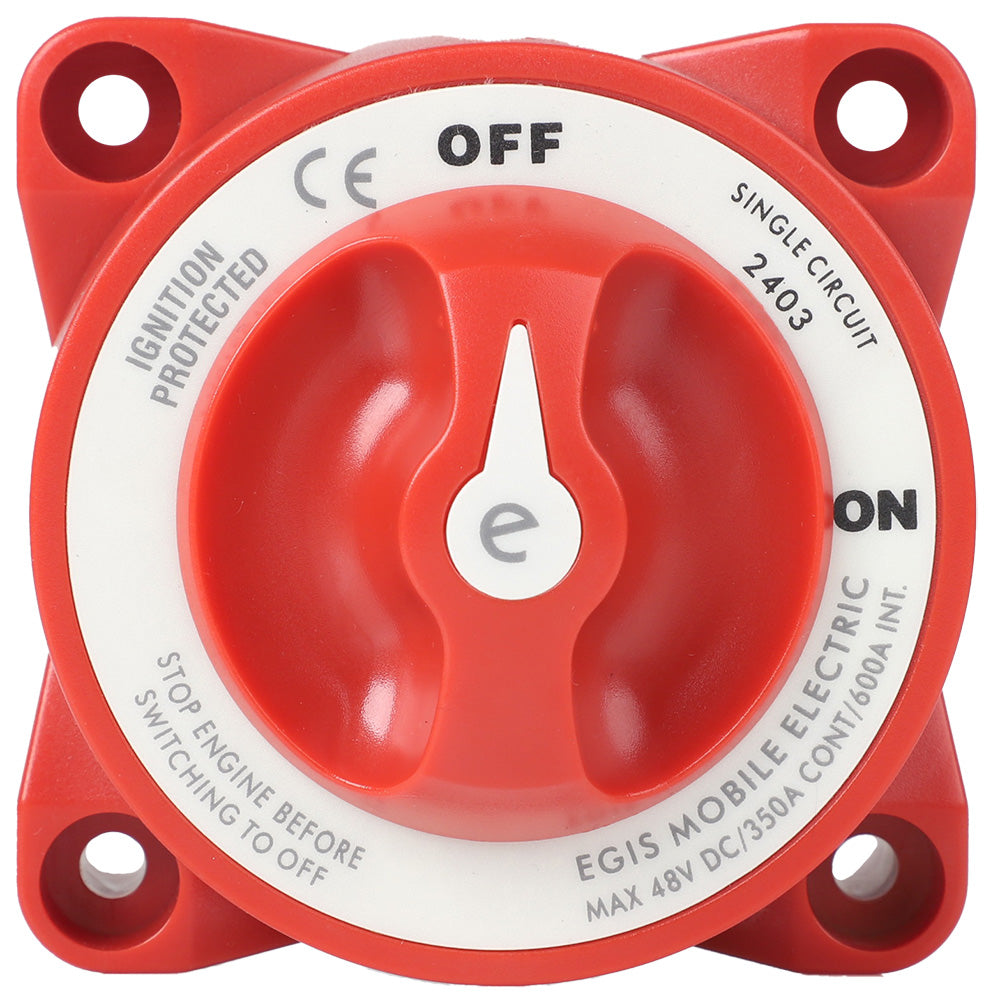

Egis E-Series 350A Battery Switch Off/On
Regular price
$4830
Unit price
Description
Description
E-Series 350A Battery Switch Off/On
Sealed Against Dust & Water Intrusion - To ensure reliable circuit protection for the life of the electrical system installation.
Ignition Protected - Safe for installation in closed compartments with potential explosive gases.
Serrated Flange Lock Nuts - Improves resistance to cable terminal loosening in high-vibration environments.
Flexible Mounting Options - Allow for multiple mounting configurations and a variety of installation types.
Harsh Environment Design - With stainless steel hardware, serrated flange nuts, and high-temperature materials.
Specifications
Specifications
Identification
| MPN | 2403 |
|---|---|
| Barcode | 850067590569 |
Electrical
| Maximum Voltage (Single Circuit) | 48 Vdc |
|---|---|
| Maximum Voltage (Selector / Dual Circuit) | 32 Vdc |
Physical
| Stud Size And Thread | 3/8”-16 |
|---|---|
| Ring Terminal Size Acceptance | 3/8” (M10) |
| Mounting Holes | #1/4" (M6) Screw |
| Bulkhead / Panel - Mounting Hole Size | 3-5/8" Diameter |
| Cable Size to Meet Rating | 4/0 AWG |
General
| Terminal Stud Torque | 140 in-lbs (15.8 N-m) |
|---|---|
| Ignition Protection Rating | SAE J1171 / ISO 8846 |
Control & Connectivity
| Live Switching Rating | 25 Amps |
|---|
