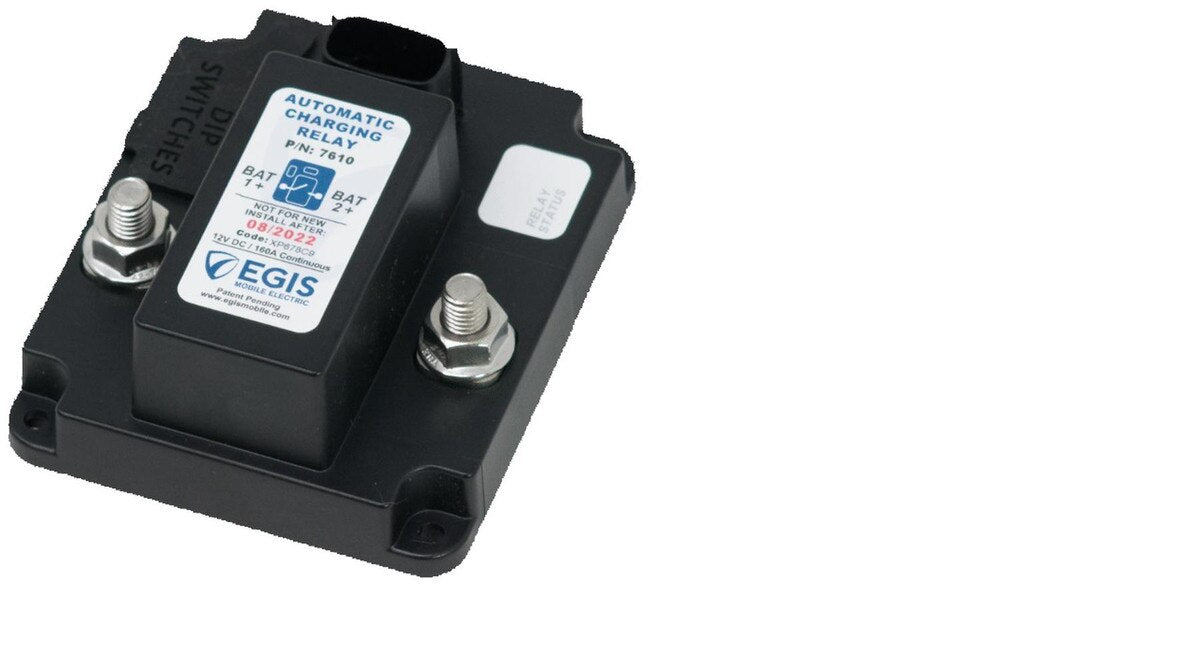

Egis Programmable Automatic Charging Relay (ACR) 160A, 12V
Regular price
$15280
Unit price
SKU:
EME/7610
Regular price
$15280
Unit price
Description
Description
Programmable Automatic Charging Relay (ACR) 160A, 12V
This 160A Egis charging relay is automatic and programable. The relay eliminates dead start batteries by sharing charging on either of two batteries and isolating batteries when no charge sources are present.
Applications:
- Supports multiple engines or independent charge systems by incorporating two independent start or engine isolation inputs to allow isolation of charge sources when both are active to maximize charging performance.
- Protects Electrical System Cascading Faults with an optional lock-out from closing if one terminal is connected to a battery with a shorted cell.
Features:
- Ultra-Low Power Draw Compared to typical ACRs (7-10 mA) vs 7610 ACR @ 1.3 mA, will not deplete batteries even after extended electrical system downtime.
- Start Assist input option to ensure maximum cranking amps are available by allowing the manual connection of batteries via a remote switch.
- Additional low-amp output can be used to report device status remotely or drive a secondary relay for charging a battery bank without a charge source (see example)
Specifications
Specifications
Identification
| MPN | 7610 |
|---|---|
| Barcode | 850035199633 |
Electrical
| Continuous Current (Amps) | 160 |
|---|---|
| Voltage Range | 8-18 VDC |
| Off-State Current Draw mA | 1.3 |
| Interrupt Current (Amps) | 240 |
| ACR Closing Voltage (VDC) | 12.9-13.6 |
| ACR Opening Voltage (VDC) | 12.1-12.8 |
Physical
| Simple and robust installation | The integrated sealed plug eliminates corrosion and includes a Deutsch/Amphenol DTM connector harness |
|---|---|
| Bullet-proof construction | Sealed unit, stainless steel hardware, and high-temperature materials allow mounting anywhere. Integrated thermal overload shutdown protection. |
