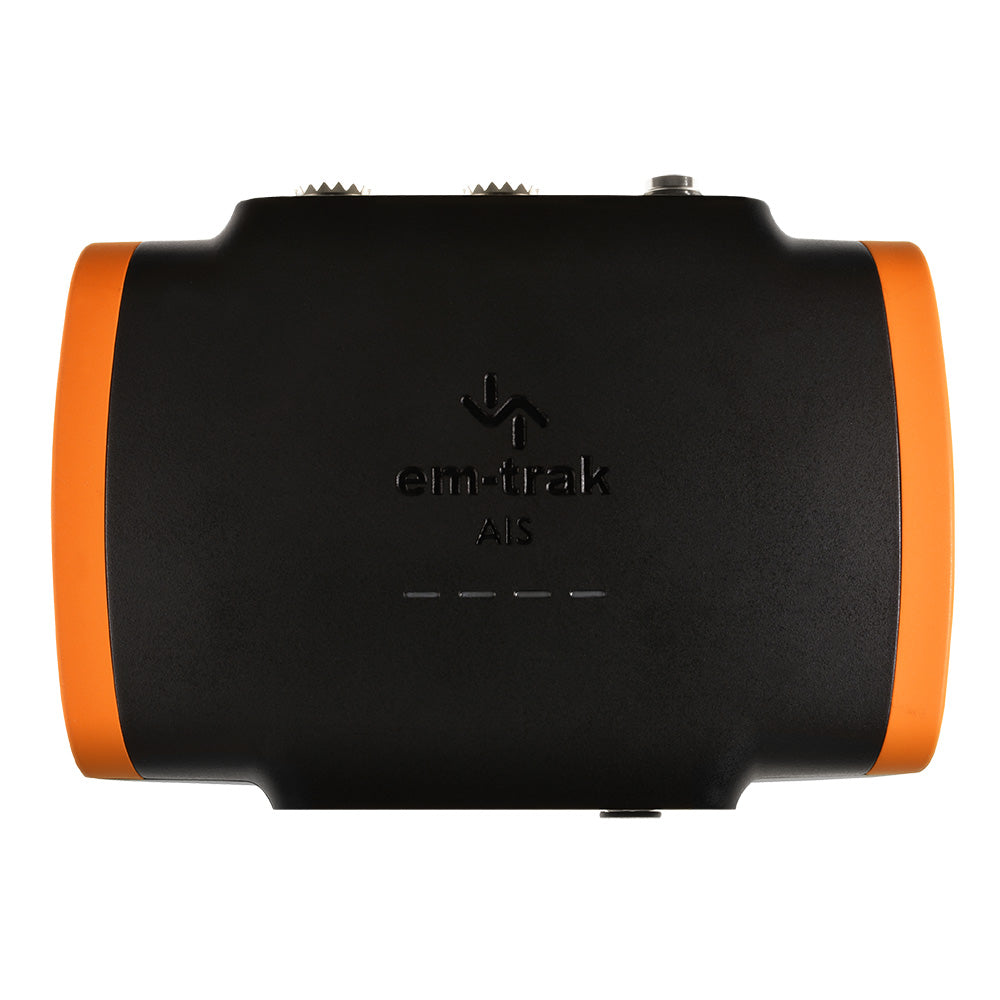

em-trak B924 Class B AIS Transceiver w/WiFi, Bluetooth & VHF Antenna Splitter - 2W CSTDMA

B924 Class B AIS Transceiver with WiFi, Bluetooth & VHF Antenna Splitter - 2W CSTDMA

**As the FCC requires all units sold in the US to be programmed by a qualified technician. Please submit the form below for programming at the time of purchase. A copy of the MMSI registration or FCC Ship Station License is required along with the vessel master or owner's signature on the completed programming form.**

Click here to download form.

The most feature-rich 2W CSTDMA AIS transceiver in the B900 range. The B924 includes WiFi & Bluetooth for seamless wireless connectivity and AIS data streaming to any mobile device, PC, or wearable, with an integrated VHF antenna splitter to enable your transceiver to share your existing VHF antenna without any loss of performance. Like all B900 transceivers, it also includes an integrated next-generation GPS receiver and antenna and is designed for em-trak's unique FLEXI-FIT® bracket system to make installation as easy as possible.

Exceptionally lightweight and completely weatherproof, the B924 delivers the very best (2W) AIS receive and transmit performance, so you see all AIS information and targets, even at maximum range. Your transceiver will also work with our CONNECT-AIS mobile phone app to make programming, configuration, and transceiver health monitoring simple and convenient.

Features:

• Certified AIS Class B – 2W CSTDMA
• Integrated WiFi and Bluetooth
• Integrated VHF antenna splitter
• SRT-AIS™ Transceiver Engine for superlative proven performance
• FLEXI-FIT™ bracket system for easy, convenient, and secure installation
• Internal high-performance GPS receiver and antenna (external antenna optional)
• Water, pressure spray, and damp proof (IPx6, IPx7 certified)
• Protected from vibration, shock, and extreme temperatures
• Small and lightweight
• Ultra-low power consumption – best in class
• Guaranteed connectivity and interoperability with any app, chart plotter, smartphone, tablet, or PC
• NMEA 0183 & NMEA 2000
• Automated health and performance monitoring
• Silent mode (transmit-off) function
• Enhanced RF screening to protect against electromagnetic interference
• Built-in power surge protection

Physical & Environmental Specifications:

Electrical Specifications:

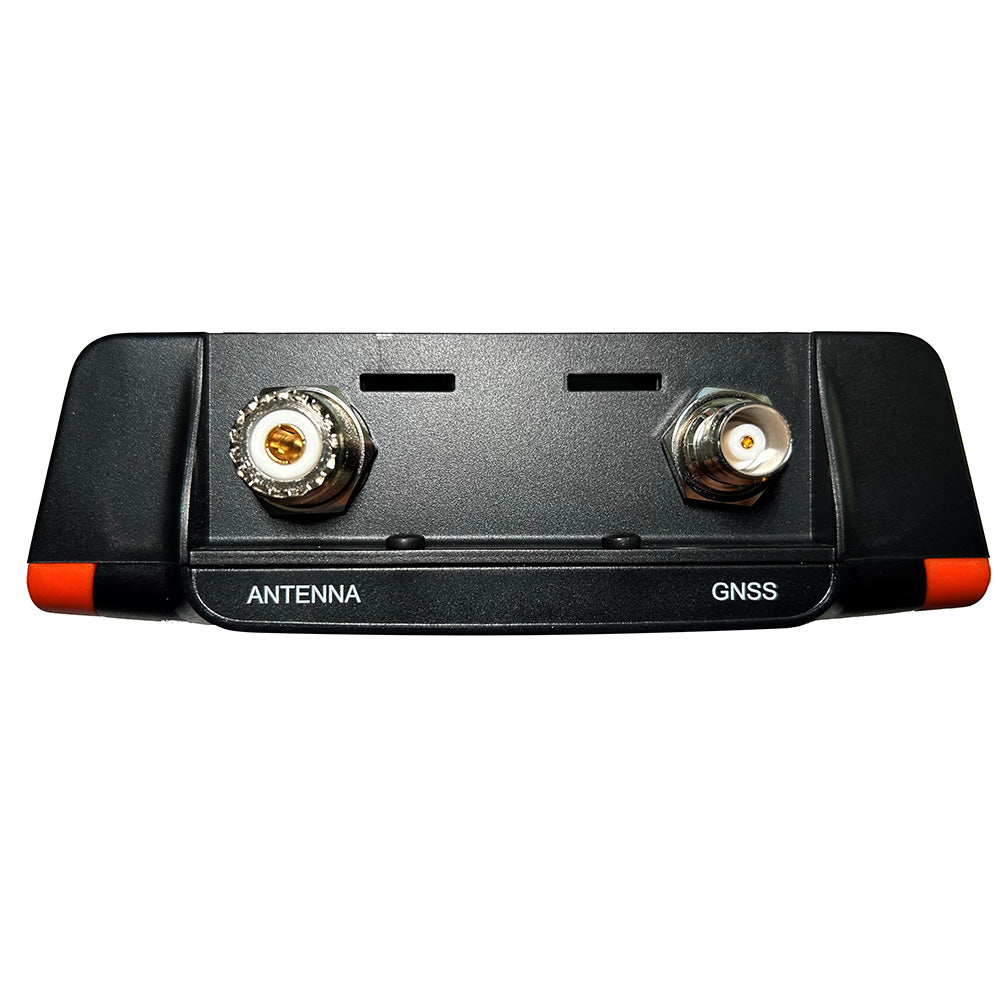

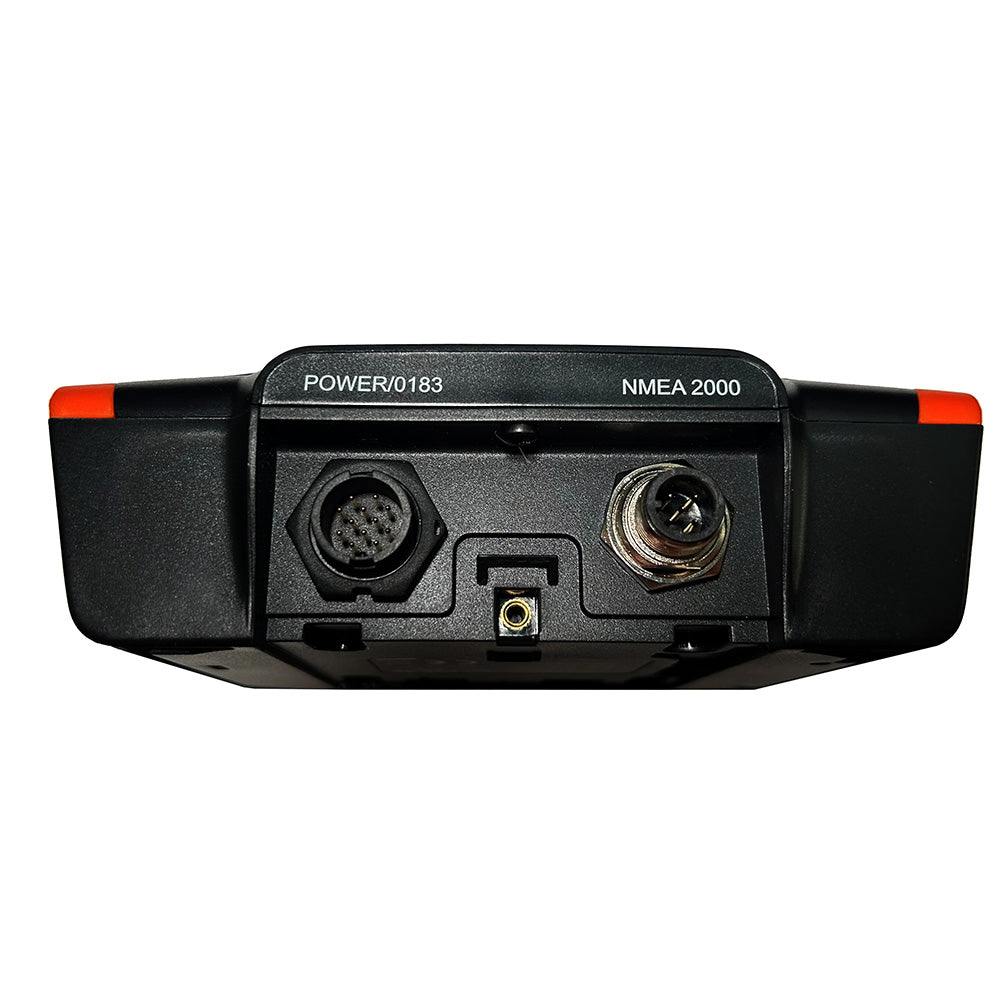

Connectors:

Data Interfaces:

Standards Compliance:

• AIS standards: IEC 62287-1 Ed. 3, ITU-R M.1371.5
• Environmental standards: IEC 60945 Ed. 4

GNSS:

• Systems supported: GPS, GLONASS, BeiDou, Galileo (two of any combination, three including GPS, Galileo)
• Time to first fix from the cold start: 26s

VHF Transceiver:

User Interface:

In The Box:

1 x AIS transceiver
1 x Power and data cable (2M)
1 x VHF radio accessory cable
1 x FLEXI-FIT™ mounting bracket
Complete with screws & optional fixing tape

Package Dimensions:

7" x 7" x 6"

Available Method:

• Ground
• 2 Day

• Installation Guide
• Quick Guide
• Brochure

* ALL WARRANTY IS THROUGH MANUFACTURE *
