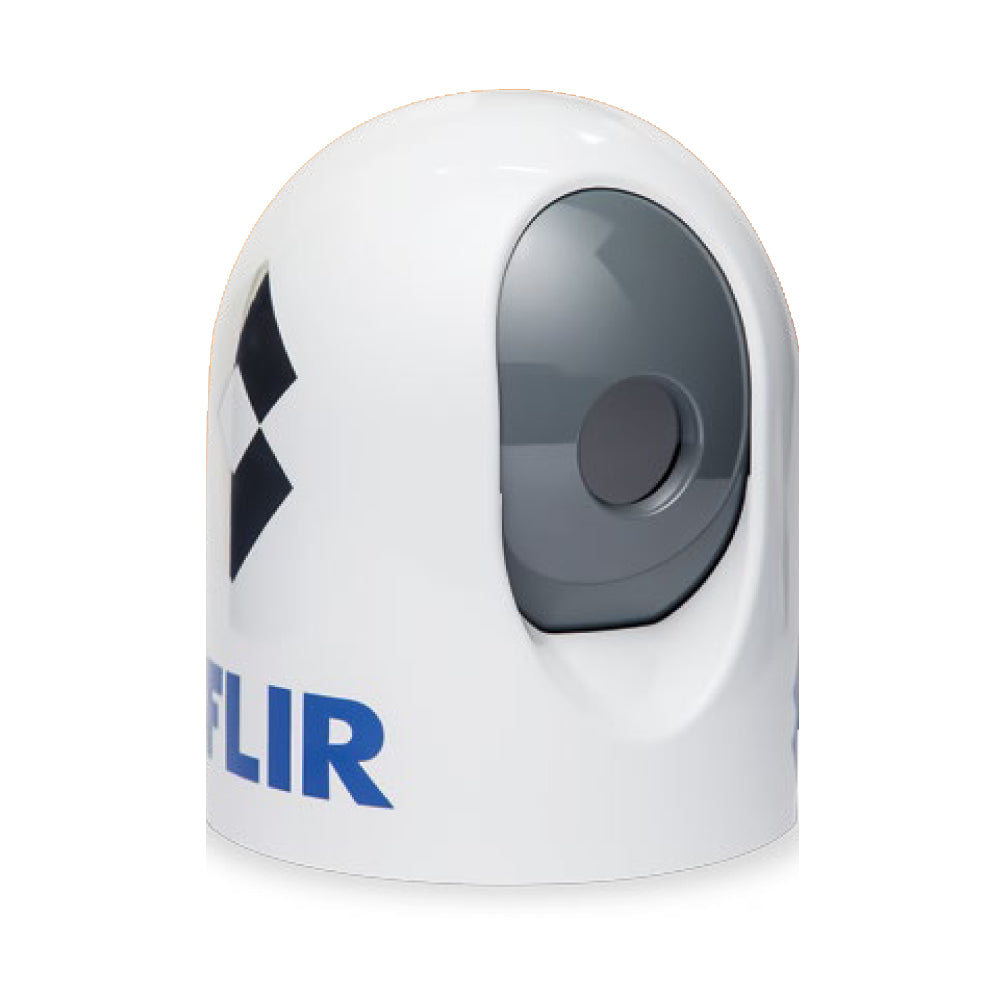

FLIR MD-324 Static Thermal Night Vision Camera

SKU: FLI/432-0010-01-00
Regular price $6,39500

Description

MD-324 Thermal Night Vision Camera

This affordable, fixed-mount thermal night vision system helps with steering around obstacles, collision avoidance and finding people in the water at night. Simple to mount and easy to integrate into your existing electronics, MD-Series' display can be mounted separately on your dashboard, or the feed can be integrated into an existing display to save space.

Now even small boats can see clearly at night with the MD-Series Fixed Mount Thermal Night Vision Camera from FLIR.

The MD-324 features a 320 x 240 pixel thermal imager with a wide angle 19mm lens, a 2X digital zoom allowing you to magnify distant targets for enhanced viewing and identification & 30Hz refresh for smooth, clear images.

The MD-Series delivers stunning detail and clarity day or night thanks to its state-of-the-art FLIR thermal imaging technology. The camera can easily detect floating objects, navigation aids, other vessels, and even people in the water with ease.

Engineered for smaller cruising, fishing and sailing vessels, MD-Series is both compact and lightweight. The camera measures 5.9" in diameter and just 7" high. The small footprint allows the camera to easily mount on any T-top, cabin roof, radar arch or mast.

Features:

  • Available in 320 x 240
  • 2x e-zoom standard
  • Ethernet-enabled for simple integration into your current electronics
  • Slim profile (7" high and only 3 pounds) makes for an unobtrusive mount

Specifications

Identification

MPN 432-0010-01-00
Barcode 815121015426

Camera

Thermal Sensor 320 x 240 VOx Microbolometer
Field of View 24° x 18°
Focal Length 13mm
Zoom 2x E-Zoom
Frame Rate 9 Hz
Video Output NTSC or PAL analog video

Detection Range

Person ~1,500 ft
Small Vessel ~4,200 ft

Physical

Dimensions 6" dia x 7" H (15.2 x 17.8cm)
Weight ~3 lb (1.4 kg)
Housing IPx6 water ingress rating, 100 knot (115 mph) wind rating

Electrical

Power Input 12-24 VDC (via PoE injector)
Power Consumption 4.8W nominal, 12.5W max

Environmental

Operating Temperature -25°C to +55°C (-13°F to +131°F)
