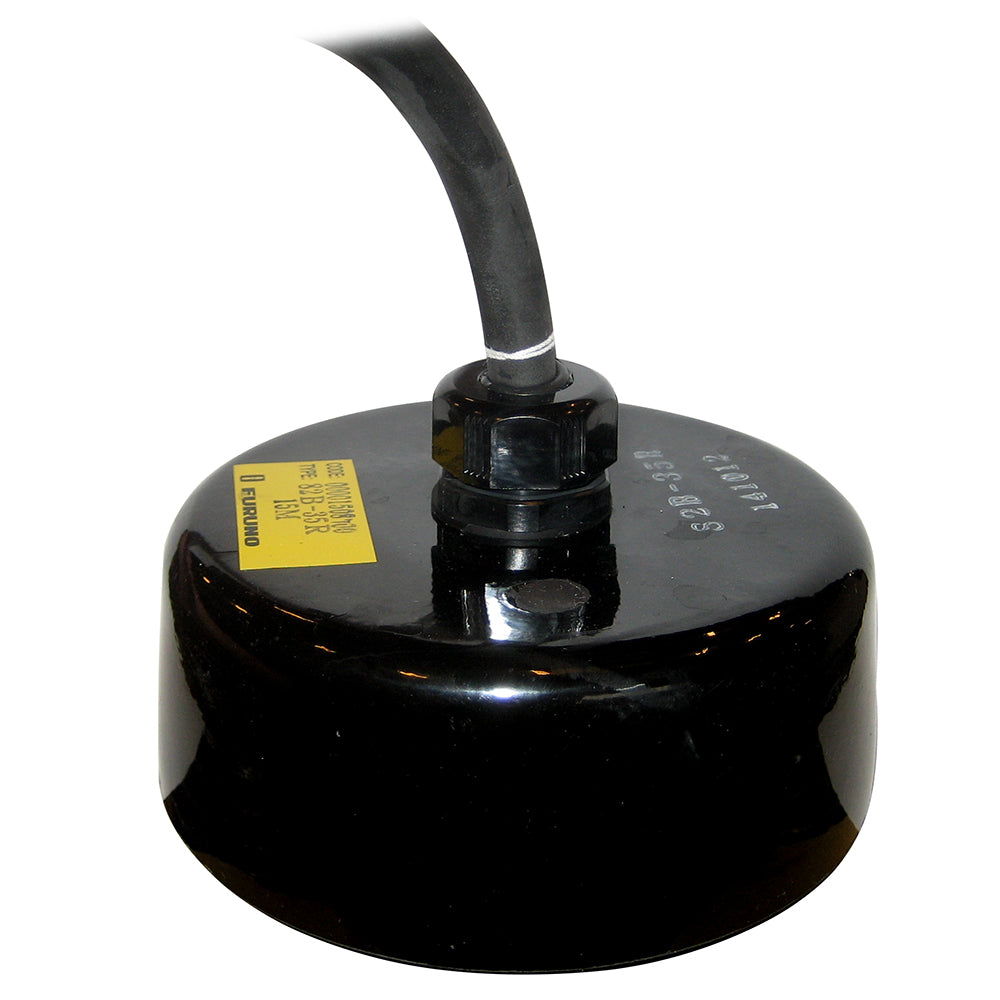

Furuno CA82B-35R FRP Tank-Mounted Transducer - 65kHz-110kHz - 2kW (No Plug)

CA82B-35R FRP Tank-Mounted Transducer - 65kHz-110kHz - 2kW (No Plug)

Furuno's CA82B-35R transducer has a wide bandwidth of 65kHz-110kHz, and is usable with the FCV295, FCV292*, FCV1150, FCV1100, FCV1200, DFF3 and BBFF3. When used with the FCV1100/1200, sensitivity remains high even if the frequency is shifted +/- 10% to suppress interference.

The CA82B-35R may be installed in the tank of the CA88B-10 or CA100B-10R. When retrofitting these or other transducers, the directional pattern and sidelobe characteristics of the beam will be different, and therefore the sounder image may differ from previous installations.

Features:

• 2kW

• Selectable frequency - 65kHz to 110kHz

• Beam angle becomes sharper at higher frequencies: 68kHz = 12.5°, 88kHz = 9.6°, 107kHz = 7.7°

• Rugged FRP construction - tank mounted

• 15 meter cable

• No connector provided

*88kHz frequency only

Shipping Information: 12 lbs, 14 x 14 x 9This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

In The Box:

Package Dimensions:

14" x 14" x 8"

Available Method: Ground

* ALL WARRANTY IS THROUGH MANUFACTURE *
