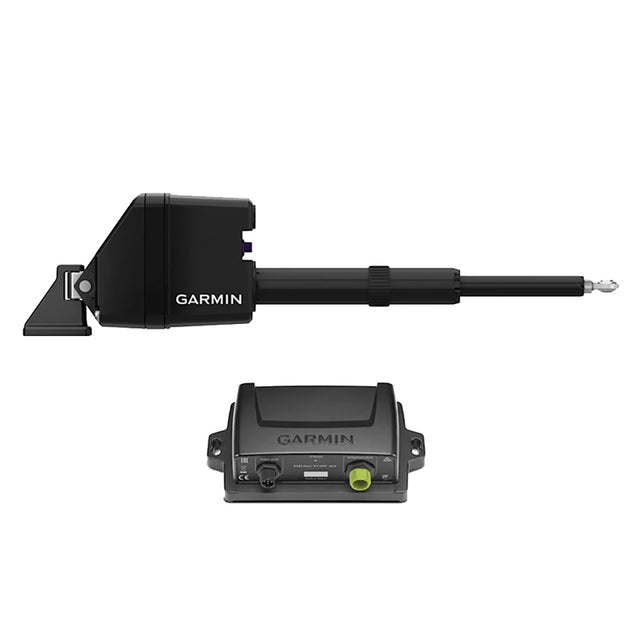

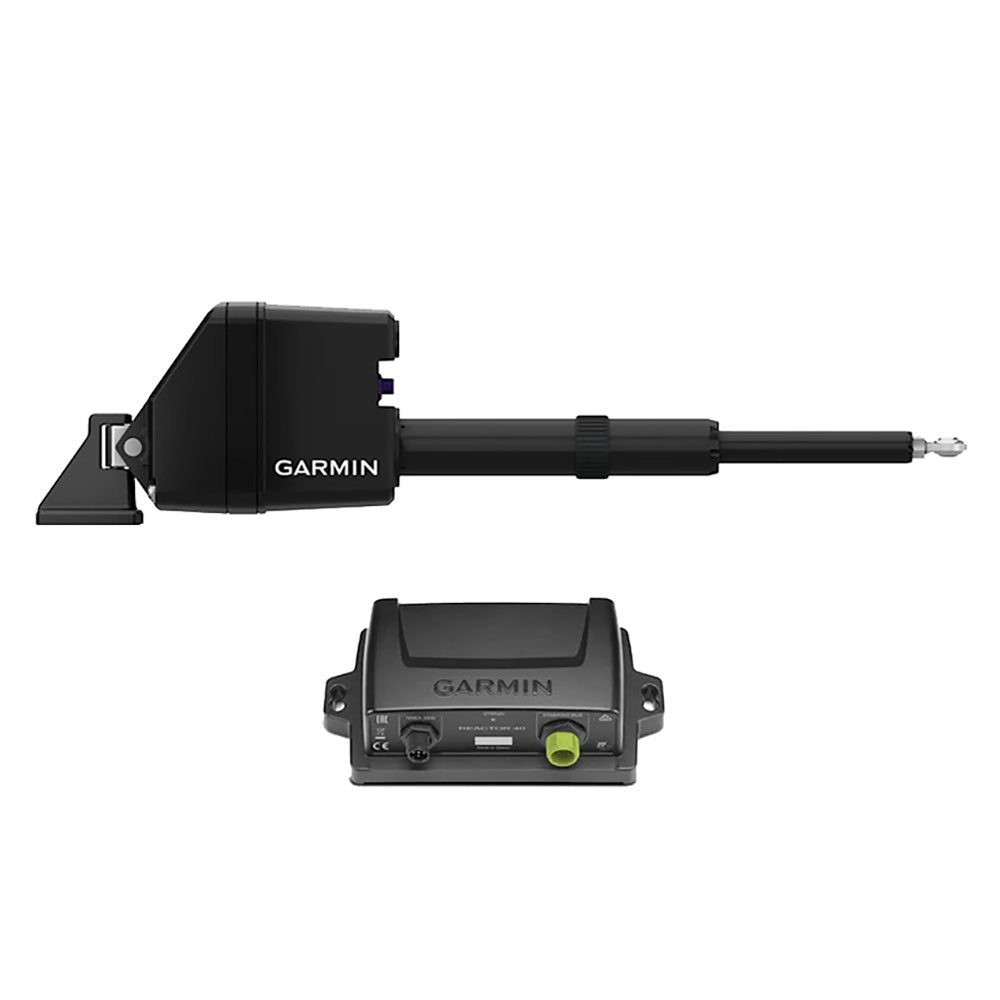

Reactor™ 40 Sail Corepack with SmartDrive™ - No Display
The Reactor 40 sail corepack with SmartDrive actuator is the first sailboat autopilot to use a brushless linear actuator with built-in ECU. Get precise rudder awareness with minimal mechanical wear.
Course Computer Unit (Reactor™ 40)
Our CCU is the brain of the Reactor 40 autopilot system, containing sensory equipment used to determine heading and rate of turn. Connect the CCU to the NMEA 2000® network to communicate with your GHC™ 20 and optional NMEA 2000-compatible devices.
Specifications
Specifications
Identification
| MPN | 010-00705-97 |
|---|
Physical
| Dimensions | 3 19/32" diameter (91.4 mm) |
|---|---|
| Weight | 19.8 lbs (9 kg) |
| Case material | Fully gasketed, high-impact plastic, waterproof to IEC 529 IPX7 standards |
| CCU cable length | 9.5 ft (3 m) |
| Stroke length | 12" (300 mm) |
| Dimensions, including base, mid-stroke (WxHxD) | 4.5" x 7.75" x 27.6" (114 x 197 x 700 mm) |
Performance
| Temperature range | From -15 C to +55 C (5 F to 131 F) |
|---|---|
| Operating temperature | -20° to 55° C (-4° to 131° F) |
Electrical
| NMEA 2000® power input | 9-16 V |
|---|---|
| Supply voltage | 10 to 32 Vdc |
| Average typical current at 12 V | 0.8 to 5 A, depending on conditions |
| Peak momentary current | 25 A |
Control & Connectivity
| NMEA 2000 LEN | 3 (150 mA) |
|---|
General
| Drive unit type | Mechanical linear |
|---|---|
| Maximum boat displacement | 33,000 lbs (15,000 kg) |
| Maximum thrust (adjustable software setting) | High: 1050 lbs (476 kg), Medium: 600 lbs (272 kg), Low: 400 lbs (181 kg) |
| Lock-to-lock time | 11 seconds |
| Water ingress | IPX7 |
