Discontinued
Garmin  |  SKU: GAR/010-02367-01

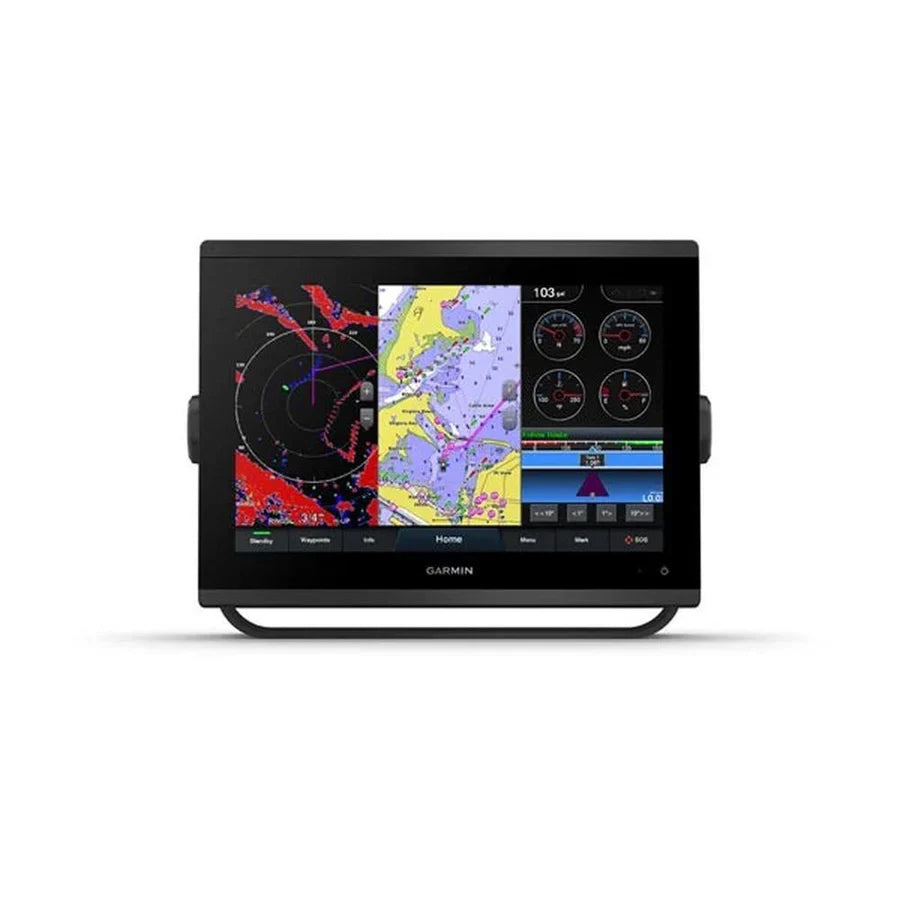

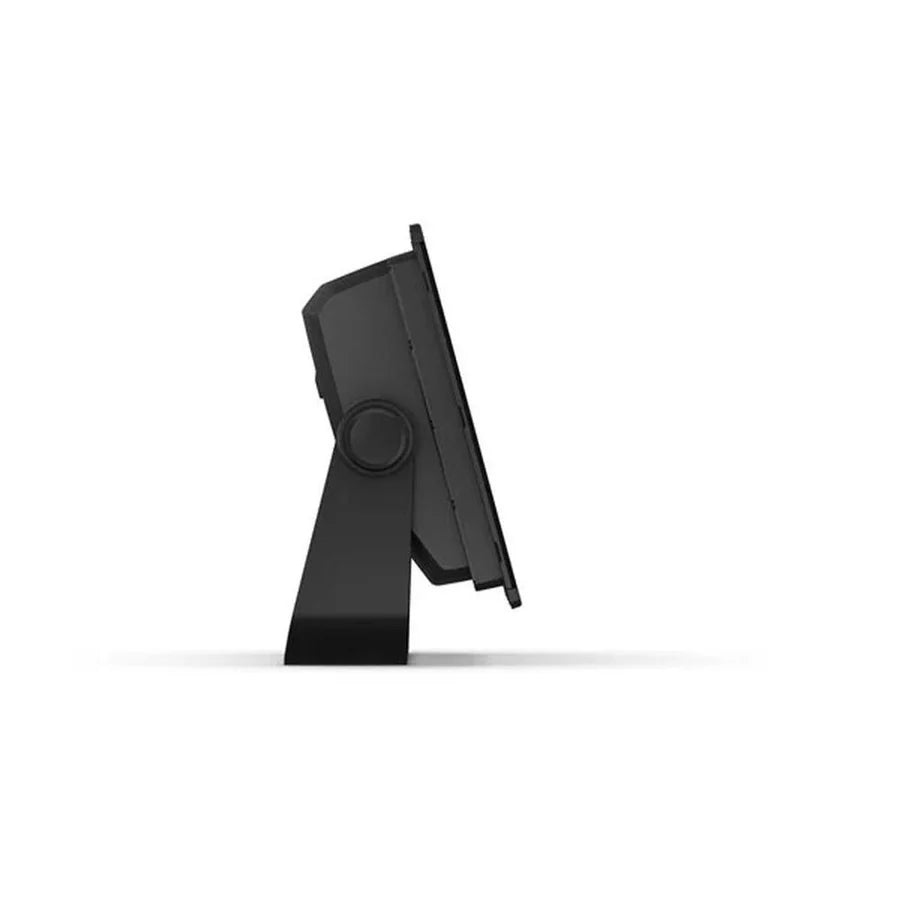

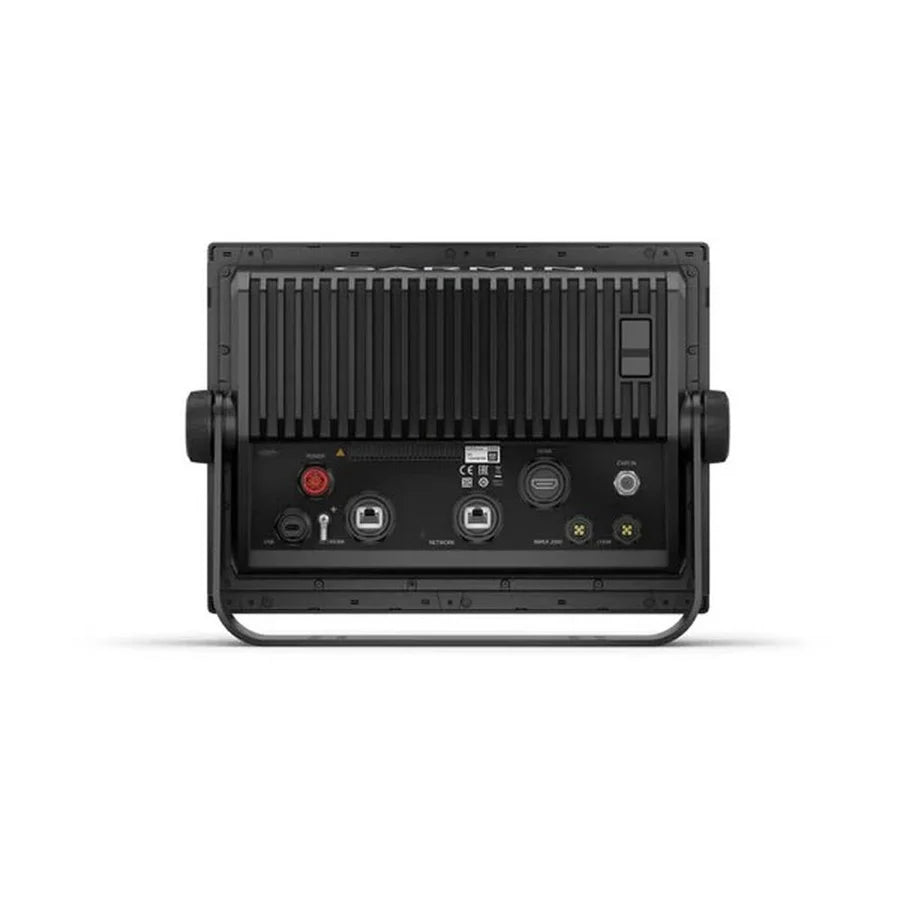

GPSmap 1243 (G3)

12" MFD w/ BlueChart G3 Charting

$2,79999
Shipping calculated at checkout.

DISCONTINUED

Limited To Stock Available

Discontinued:

Description

SERIOUS ANGLERS, CRUISERS, SAILORS AND SAIL RACERS DEMAND SERIOUS EQUIPMENT

Specifications
  • Product Series
    GPSmap x3
  • MPN
    010-02367-01
  • Physical
    Dimensions: 12.1” x 8.9” x 3.2” (30.8 x 22.8 x 8.2 cm)
    Weight: 6.6 lbs (3.0 kg)
  • Mounting
    Type: Bracket, Flush or Flat
    Cutout: 11 5/8" x 7 15/16" (295.4 mm x 201.1 mm)
  • Power
    Input: 10-32v DC
    Typical Draw: 1.67 A @ 12v
    Max Draw: 2.15 A @ 12v
  • Screen
    Touchscreen: Yes
    Type: WXGA
    Size: 12.1"
    Resolution: 1280 x 800
  • Sonar
    No (Requires Sonar Module or Networked XSV Unit)
  • Connectivity
    Built-In GPS: Yes - 10Hz
    SD Cards: Yes - microSD (2)
    Wireless: WiFi, Bluetooth, ANT
    Network: Marine Network (2)
    NMEA 0183: Yes
    NMEA 2000: Yes
    J1939: Yes
    Analog Video In: Yes
    HDMI In: No
    HDMI Out: No
    USB: Yes
    Sonar: No
  • Built-In Chart
    BlueChart G3
  • IP Rating
    IPx7

Reviews (0)

In The Box

In The Box:

GPSMAP 1243 chartplotter
microSD™ card preinstalled
Power cable
NMEA 2000® T-connector
NMEA 2000 drop cable (2 meters)
Bail mount kit with knobs
Flush mount kit with gasket
Protective cover
Trim piece snap covers
Documentation

Package Dimensions:

Support/Warranty



Release Date:

Warranty: 2yr
