Garmin | SKU: GAR/010-02367-52 | Barcode: 753759326029

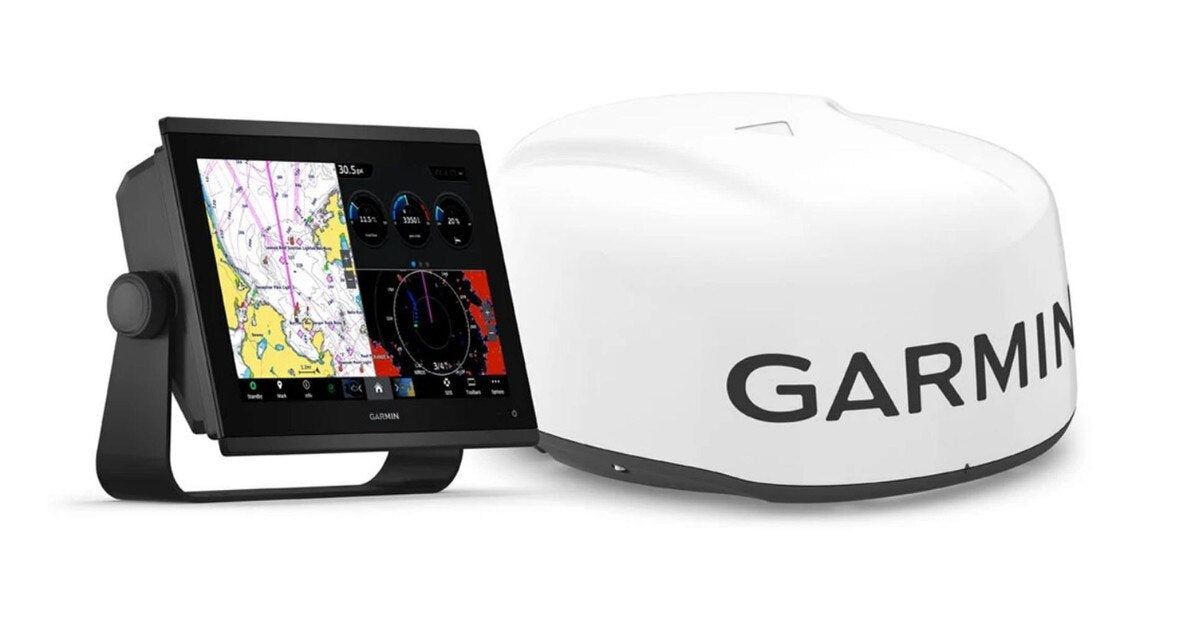

GPSmap 1223xsv Multi-Function Display + GMR18 HD3 Dome Radar

Name: GPSmap 1223xsv Multi-Function Display + GMR18 HD3 Dome Radar
Brand: Garmin
SKU: GAR/010-02367-52
Price: 4699.99 USD
Availability: InStock

12" MFD w/ Built-In Sonar & Dome Radar Bundle

$4,699⁹⁹

Need This Product Installed?

We Offer Mobile Installation From West Palm Beach - Fort Pierce, FL

Click Here To Set Up Your Installation

Description

12" IPS Sunlight-Readable Display – High-resolution in-plane switching screen delivers excellent clarity and wide viewing angles even in bright sunlight

• Ultra High-Definition SideVü™ & ClearVü™ Sonar – Provides detailed scanning sonar with vivid color palettes to clearly distinguish fish and underwater structure

• 1 kW CHIRP Traditional Sonar Support – Delivers superior target separation and deep-water sonar performance

• Live Sonar Compatible – Supports Panoptix™ and Panoptix LiveScope™ live sonar systems for real-time views around your boat (transducer sold separately)

• Garmin Marine Network Integration – Share sonar, maps, radar, user data and IP camera video across multiple compatible Garmin displays

• Advanced System Integration – Connect autopilots, AIS, VHF radios, digital switching, weather and Fusion-Link™ audio systems from a single screen

• Built-In Wi-Fi® Connectivity – Pair with the mobile app to access OneChart™, software updates, smart notifications and Garmin Quickdraw™ Community data

• ANT® Wireless Connectivity – Connect compatible quatix® marine smartwatches, gWind™ Wireless 2 transducers, GNX™ Wind instruments and wireless remotes

• Engine Data Integration – Supports connection to compatible marine engines, including select Yamaha engines, for onboard engine monitoring

• EmpirBus™ Digital Switching Support – Control supported third-party onboard systems directly from the chartplotter display

Specifications

Product Series

GPSmap x3
MPN

010-02367-52
Physical

Unit:
Dimensions: 12.1” x 8.9” x 3.2” (30.8 x 22.8 x 8.2 cm)
Weight: 6.6 lbs (3.0 kg)

Radar:
Dimensions: 20" diameter, 9.8" high (508 mm diameter, 248 mm high)
Weight: 15.4 lb (7.0 kg)
Mounting

Type: Bracket, Flush or Flat
Cutout: 11 5/8" x 7 15/16" (295.4 mm x 201.1 mm)
Power

Unit:
Input: 10-32v DC
Typical Draw: 1.68 A @ 12v
Max Draw: 3.56 A @ 12v

Radar:
Input: 11-32v DC
Standby Draw: 15 W
Typical Draw: 40 W
Screen

Touchscreen: Yes
Type: WXGA
Size: 12.1"
Resolution: 1280 x 800
Sonar

Built-In Sonar: Yes
Port: 12pin
Power: 1kW
Frequencies:
Traditional: Dual Channel CHIRP, 70/83/200 kHz, L, M, H CHIRP)
ClearVu: 260/455/800/1000/1200 kHz
SideVu: 260/455/800/1000/1200 kHz
Connectivity

Built-In GPS: Yes - 10Hz
SD Cards: Yes - microSD (2)
Wireless: WiFi, Bluetooth, ANT
Network: Marine Network (2)
NMEA 0183: Yes
NMEA 2000: Yes
J1939: Yes
Analog Video In: Yes
HDMI In: No
HDMI Out: No
USB: Yes
Sonar: Yes - 12pin
Built-In Chart

Basemap
IP Rating

IPx7

Reviews (0)

In The Box

In The Box:

GPSMAP 1223xsv chartplotter
microSD™ card preinstalled
Power cable
NMEA 2000® T-connector
NMEA 2000 drop cable (2 meters)
8-pin transducer to 12-pin sounder adapter cable
Bail mount kit with knobs
Flush mount kit with gasket
Protective cover
Trim piece snap covers
Documentation
GMR 18 HD3 dome radar
Power cable (49.21 ft)
Network cable (49.21 ft)
Mounting hardware kit and template
Installation instructions

Package Dimensions:

Support/Warranty

Product Support:

Subscription Information:

Release Date:

Warranty: 2yr

* ALL WARRANTY IS THROUGH MANUFACTURE *
