Discontinued

Garmin | SKU: GAR/010-02529-51

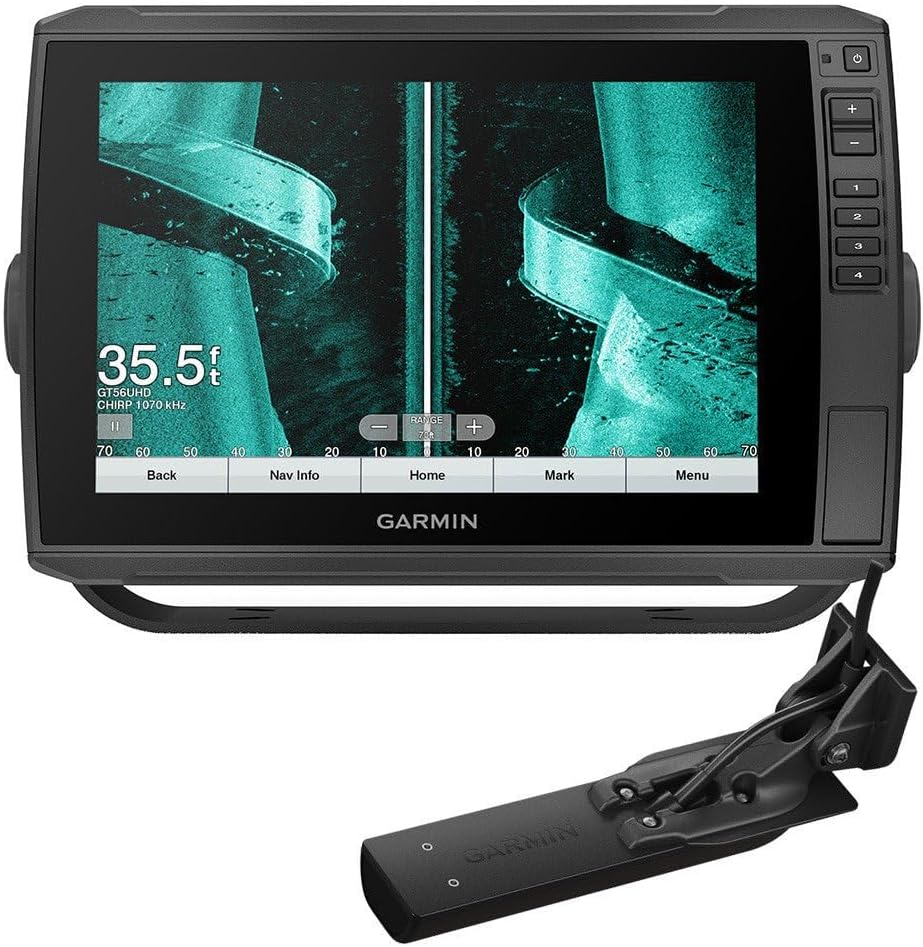

ECHOmap 126sv Ultra Chartplotter + Transducer

Name: ECHOmap 126sv Ultra Chartplotter + Transducer
Brand: Garmin
SKU: GAR/010-02529-51
Price: 2949.99 USD
Availability: OutOfStock

12" Chartplotter w/ GT56 Transducer & Navionics+ Charting

$2,949⁹⁹

Shipping calculated at checkout.

DISCONTINUED

Limited To Stock Available

Discontinued:

ALL THE TOOLS YOU NEED FOR SUCCESSFUL FISHING

The sunlight-readable 12” touchscreen combo features preloaded coastal and inland Garmin Navionics+^™ mapping, plus the transducer bundle adds CHIRP traditional and Ultra High-Definition scanning sonars.

The keyed-assist 12” touchscreen puts fishfinding know-how at your fingertips.
See crisp images of structure and fish in stunning detail.
Navigate confidently with built-in Garmin Navionics+^™ inland and coastal mapping.
Manage your marine experience from nearly anywhere with the ActiveCaptain^® app.
Connect your boat to share data, sonar and charts with your other compatible devices.
Explore your new favorite spot; create maps on the fly, and tailor them to fit your needs.

Product Series

ECHOmap Ultra
MPN

010-02529-51
Physical

Dimensions: 13.4" x 9.0" x 3.9" (34.1 x 22.9 x 9.8 cm)
Weight: 5.5 lbs (2.5 kg)
Mounting

Type: Bracket, Flush
Power

Input: 9-18v DC
Typical Draw: 2.8 A
Max Draw: 3.0 A
Screen

Touchscreen: Yes
Type: WXGA, IPS
Size: 12.1"
Resolution: 1280 x 800
Sonar

Built-In Sonar: Yes
Port: 12pin , LVS
Power: 600 W
Frequencies:
Traditional: Single Channel CHIRP, 70/83/200 kHz, L, M, H CHIRP)
ClearVu: 260/455/800/1000/1200 kHz
SideVu: 260/455/800/1000/1200 kHz
Connectivity

Built-In GPS: Yes - 10 Hz
SD Cards: Yes - microSD (2)
Wireless: WiFi, ANT
Network: Marine Network (2)
NMEA 0183: Yes
NMEA 2000: Yes
J1939: No
Analog Video In: No
HDMI In: No
HDMI Out: No
USB: No
Sonar: Yes - 12pin, LVS
Built-In Chart

Garmin Navionics+
IP Rating

IPx7

Current

Discontinued

Garmin

ECHOmap 126sv Ultra Chartplotter + Transducer

12" Chartplotter w/ GT56 Transducer & Navionics+ Charting

010-02529-51

Out of stock

$2,949⁹⁹

Garmin

Bail Mount - ECHOmap Ultra 122sv/126sv

010-12842-00

In stock (10)

$129⁹⁹

Garmin

Cover - ECHOmap Ultra 122/126

Protective Cover For ECHOmap Ultra 12x

010-12842-01

In stock (3)

$24⁹⁹

Garmin

Flush Mount - ECHOmap Ultra 122/126

010-12842-03

Out of stock

$24⁹⁹

Garmin

Power Cable (4pin) - ECHOmap UItra

010-12938-00

In stock (31)

$29⁹⁹

Garmin

Trim Pieces - ECHOmap Ultra/Ultra2 12x

010-12842-02

Out of stock

$19⁹⁹

Garmin

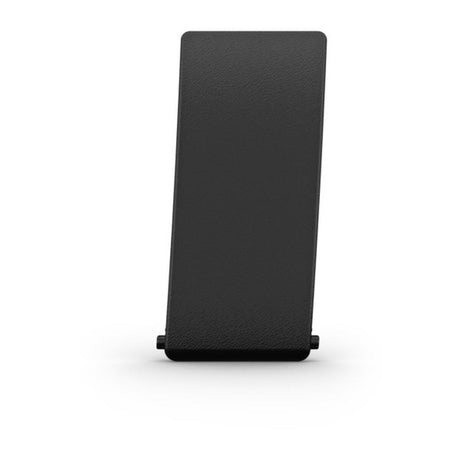

microSD Card Door - ECHOmap Ultra 12x
