Garmin | SKU: GAR/010-02779-10 | Barcode: 753759309909

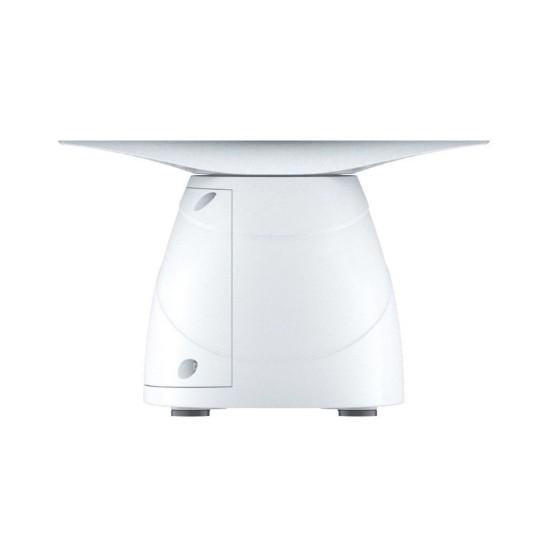

xHD3 123x Open Array Radar Pedestal

White xHD3 12kW Radar Pedestal

$5,599⁹⁹

Need This Product Installed?

We Offer Mobile Installation From West Palm Beach - Fort Pierce, FL

Click Here To Set Up Your Installation

Description

This is a 12kw radar pedestal, antenna sold separately.

Specifications

Product Series

xHD3
MPN

010-02779-10
Physical

Dimensions: 20.5" x 12.9" x 12.4" (520 mm x 328 mm x 314 mm)
Power

Input: 10-32v DC
Standby Draw: 18 W
Typical Transmit Draw: 70 W
Radar

Type: Open Array
Technology: Magnetron
Power Output: 12 kW
Min Range: 65' (20 m)
Max Range: 96 nm
RPM: 24/48
Modes: Dual Range, Bird Mode

* Requires Array *
Connectivity

Garmin BlueNet
Other

Max Wind Load: 100 kt

Reviews (0)

In The Box

In The Box:

123x Radar Pedestal

Package Dimensions:

Support/Warranty

Product Support:

Subscription Information:

Release Date:

Warranty: 2yr

Garmin Warranty Policy

* ALL WARRANTY IS THROUGH MANUFACTURE *
