Garmin  |  SKU: GAR/010-02794-02  |  Barcode: 753759302863

Reactor 40 Retrofit Corepack + GHC50

Mechanical/Retrofit/Solenoid Autopilot w/ GHC50

Regular price $2,24999

Need This Product Installed?

We Offer Mobile Installation From West Palm Beach - Fort Pierce, FL

Click Here To Set Up Your Installation

Description

EVERY CAPTAIN NEEDS A CO-PILOT

Designed for powerboats and sailboats, the Reactor 40 autopilot gives you the extra hand you need, so you can explore paradise worry-free.

The Reactor 40 mechanical/retrofit/solenoid corepack works with a wide variety of steering systems

Yes, it features a solid-state 9-axis AHRS. And yes, that means you can mount it nearly anywhere.

Even when you’re pitching or rolling, this autopilot reacts to sea conditions to keep you on course.



Specifications

  • Product Series
    Reactor 40
  • MPN
    010-02794-02
  • Physical
    CCU dimensions: 4.3 " x 4.4 " x 1.9 " (10.9 x 11.2 x 4.8 cm)
    ECU dimensions: 6.6 " x 4.6 " x 2.1 " (16.8 x 11.7 x 5.3 cm)
  • Power
    Power Input: 10 V to 30 V

    Maximum sustained motor current: 15A
    Maximum instantaneous motor current: 40A
    Maximum clutch current: 2.5A (for drives requiring higher current than 2.5A, a relay needs to be added to the clutch circuit)
  • Other
    THREE CLASS DRIVES: Choose between class A, class B compact or class B drive units for your steering system (sold separately). All Garmin linear drives include built-in rudder feedback sensing.
  • Temp Range
    -15° C to 60 C° (5° F to 140° F)

Reviews (0)

In The Box

In The Box:

Reactor 40 CCU (Course Computer Unit)
GHC™ 50 helm control display
ECU (Electronic Control Unit)
ECU power cable
Interconnect cable
Buzzer
NMEA 2000® drop cables (2 meters)
NMEA 2000 T-connectors
Male and female terminators
Documentation

Package Dimensions:

Support/Warranty

Product Support:

Subscription Information:

Release Date:

Warranty: 2yr

Garmin Warranty Policy

* ALL WARRANTY IS THROUGH MANUFACTURE *

Seastar

Autopilot Fitting Kit - NPT

NPT Autopilot Fitting Kit

HF5501

In stock (4)
Regular price $18899
View details

Seastar

Autopilot Fitting Kit - ORB

ORB Autopilot Fitting Kit

HF6007

In stock (4)
Regular price $21299
View details

Garmin

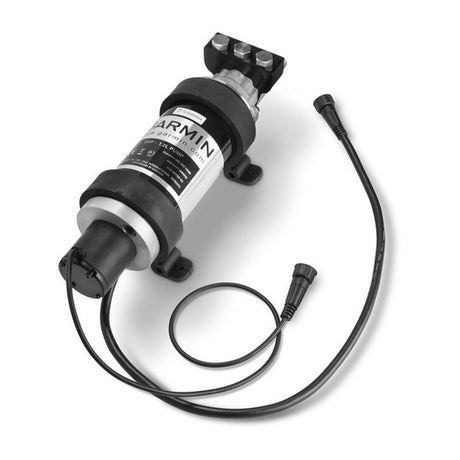

Autopilot Pump - 1.2L

1.2L Pump For Reactor Autopilot Systems

010-00705-64

In stock (3)
Regular price $1,15999
View details

Garmin

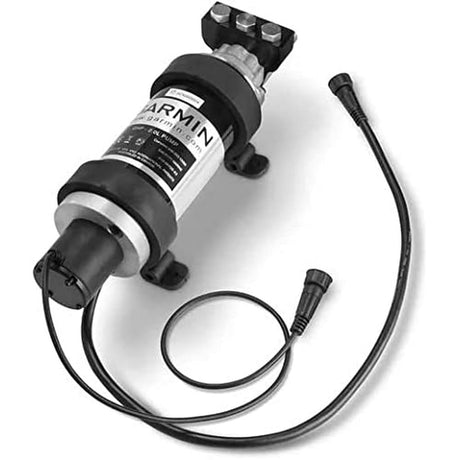

Autopilot Pump - 2.0L

2.0L Pump For Reactor Autopilot Systems

010-00705-63

In stock (5)
Regular price $1,15999
View details

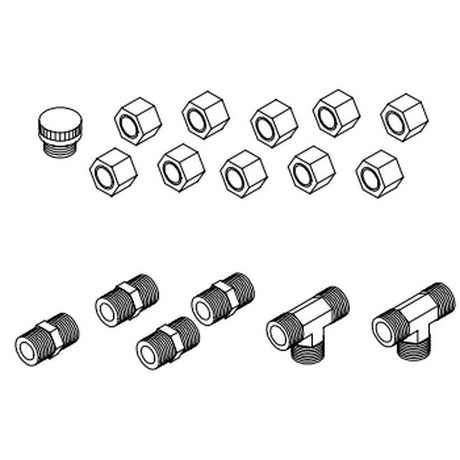

SeaStar

HF5502

Dual Station/Autopilot Fitting Kit

HF5502

Backordered
Regular price $8798
View details

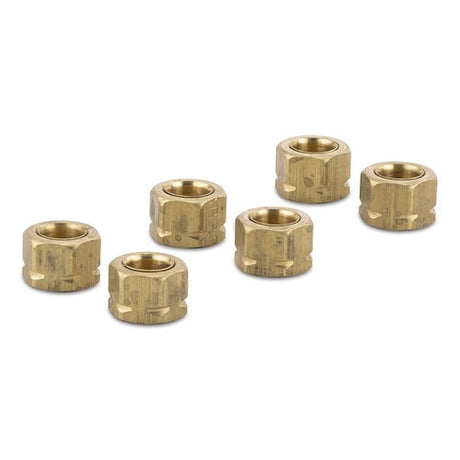

SeaStar

HF5526

Hydraulic Steering Tube Nut

HF5526

Backordered
Regular price $2999
View details

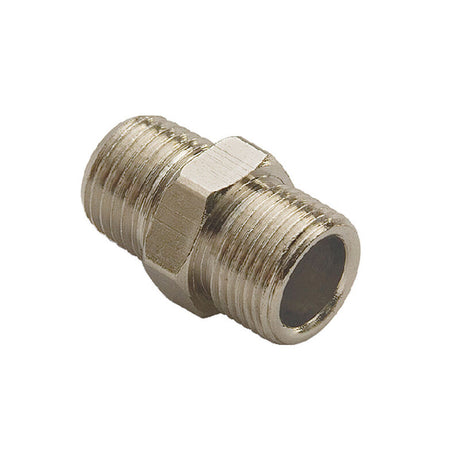

SeaStar

HF5528

NPT Hydraulic Steering Straight Fitting

HF5528

Backordered
Regular price $2898
View details

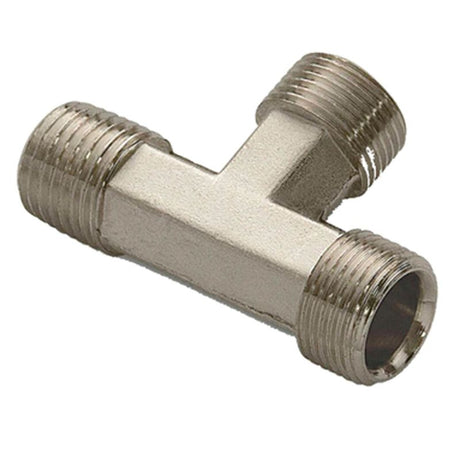

SeaStar

HF5531

NPT Hydraulic Steering Tee Fitting

HF5531

Backordered
Regular price $5148
View details

SeaStar

HF6004

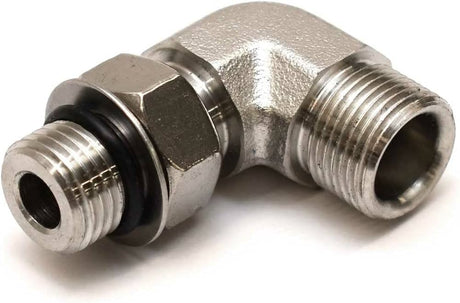

ORB Elbow Fitting

HF6004

Backordered
Regular price $4599
View details

SeaStar

HF6006

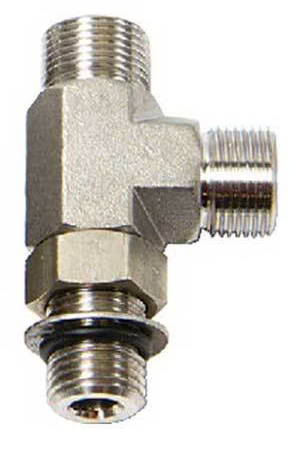

ORB Vertical Tee

HF6006

Backordered
Regular price $7398
View details

SeaStar

HF6009

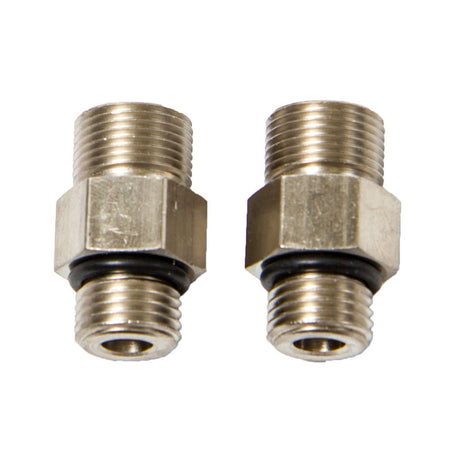

ORB Straight Fitting

HF6009

Backordered
Regular price $2748
View details

SeaStar

HF6011

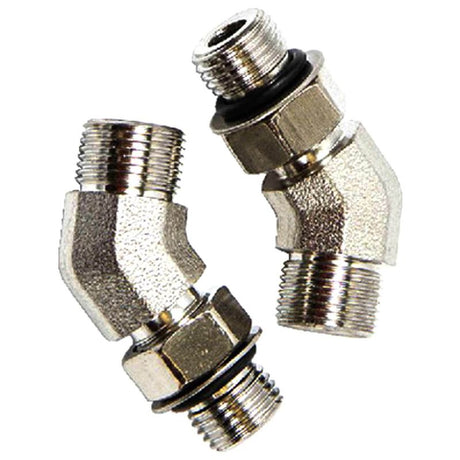

ORB 45º Fitting

HF6011

Backordered
Regular price $3799
View details

SeaStar

HF6012

ORB to NPT Adaptor Fittings

HF6012

Backordered
Regular price $4899
View details

SeaStar

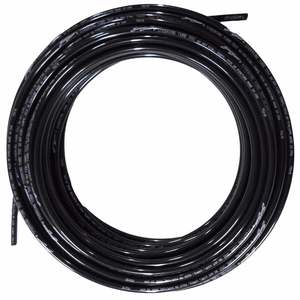

Hydraulic Compensating Hose

HT5100

Backordered
Regular price $299
View details

Garmin

Solenoid Power Cable

Reactor Autopilot Retrofit Solenoid Power Cable

010-11533-10

Out of stock
Regular price $5999
View details

SeaStar

Steering Hose - 2'

HO5102

Backordered
Regular price $18399
View details

Garmin

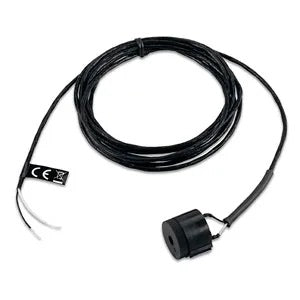

Autopilot Buzzer
