Garmin Reactor™ 40 Sail Corepack w/SmartDrive™ & GHC™ 50 Display

Name: Garmin Reactor™ 40 Sail Corepack w/SmartDrive™ & GHC™ 50 Display
Brand: Garmin
SKU: GAR/010-02794-11
Price: 4999.99 USD
Availability: OutOfStock

SKU: GAR/010-02794-11

$4,999⁹⁹

Need This Product Installed?

We Offer Mobile Installation From West Palm Beach - Fort Pierce, FL

Click Here To Set Up Your Installation

Description

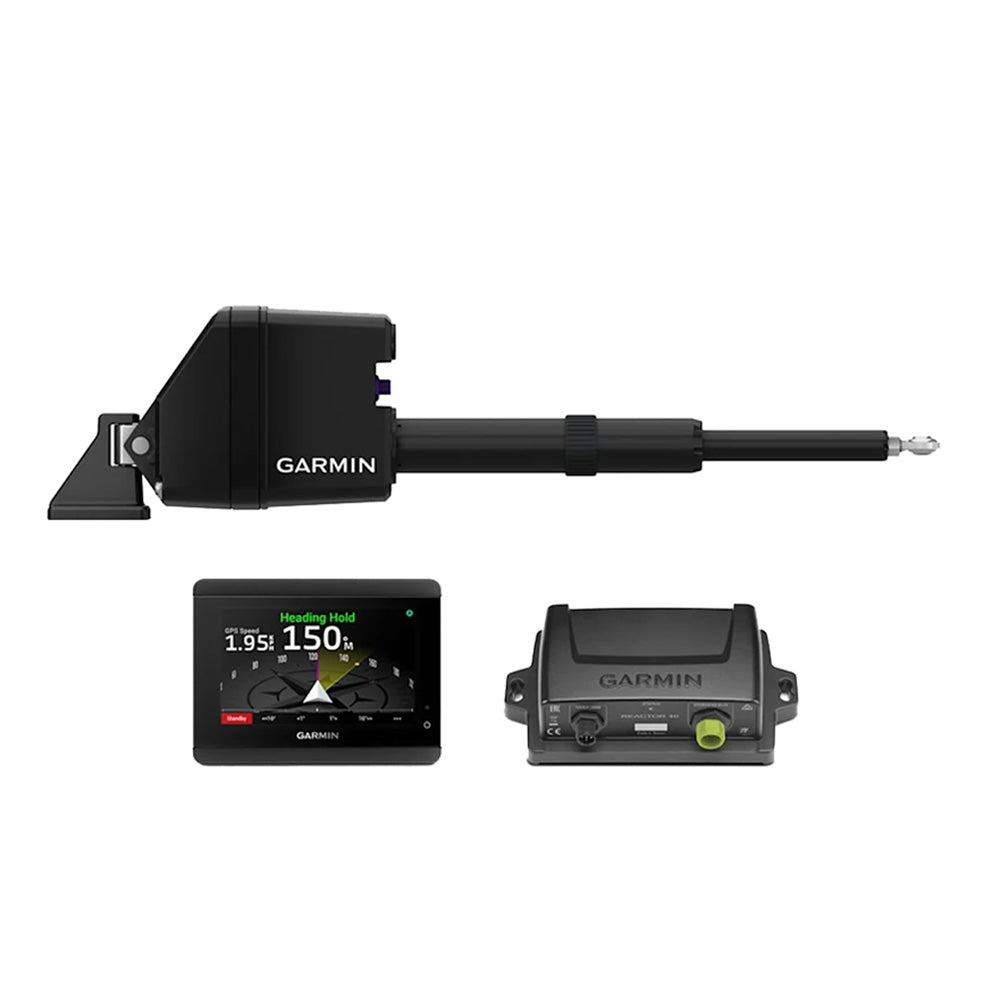

Reactor™ 40 Sail Corepack with SmartDrive™ & GHC™ 50 Display

The Reactor 40 sail corepack with SmartDrive actuator is the first sailboat autopilot to use a brushless linear actuator with a built-in ECU. Get precise rudder awareness with minimal mechanical wear.

GHC 50 Display

A 5” touchscreen interface with a bright display. Call it navigating with a simple touch.
Sleek. That’s the look you get with the instrument’s edge-to-edge glass design.
Share settings with your Garmin MFDs, and watch your integrated system come to life.
From the Garmin Marine Network (GMN) to wireless connectivity1, there are many ways to connect to your autopilot.
Control your boat your way with wired or wireless remote-controlled options.

Specifications

Identification

MPN	010-02794-11

Physical

Dimensions without sun cover (H x W x D)	4.13” x 5.51” x 2.01” (105 x 140 x 51 mm)
Dimensions with sun cover (H x W x D)	4.45” x 5.67” x 2.20” (113 x 144 x 56 mm)
Weight	19.8 lbs (9 kg)
Mounting options	Flat or flush
Dimensions	3 19/32" diameter (91.4 mm)
Case material	Fully gasketed, high-impact plastic, waterproof to IEC 529 IPX7 standards
CCU cable length	9.5 ft (3 m)
Stroke length	12" (300 mm)
Dimensions, including base, mid-stroke (WxHxD)	4.5" x 7.75" x 27.6" (114 x 197 x 700 mm)

General

Touchscreen	yes
Water Rating	IPX7
Drive unit type	Mechanical linear
Maximum boat displacement	33,000 lbs (15,000 kg)
Maximum thrust (adjustable software setting)	High: 1050 lbs (476 kg), Medium: 600 lbs (272 kg), Low: 400 lbs (181 kg)
Lock-to-lock time	11 seconds
Water ingress	IPX7

Performance

Display resolution	800 x 480
Temperature range	From -15 C to +55 C (5 F to 131 F)
Operating temperature	-20° to 55° C (-4° to 131° F)

Lighting

Display type	WVGA

Control & Connectivity

NMEA 2000 ports	1
Garmin Marine Network ports	1
ANT+ (Connectivity)	yes
Garmin Wi-Fi Network (local connection)	yes
NMEA 2000 LEN	3 (150 mA)

Electrical

Power input	9 to 32 VDC
Typical current draw at 12 VDC	220 mA
Maximum current draw at 12 VDC	400 mA
Maximum power usage at 10 VDC	4.9 W
NMEA 2000® power input	9-16 V
Supply voltage	10 to 32 Vdc
Average typical current at 12 V	0.8 to 5 A, depending on conditions
Peak momentary current	25 A

Reviews (0)

In The Box

In The Box:

Reactor™ CCU (course computer unit)
SmartDrive™ actuator
GHC™ 50 display
Buzzer
Power cables
2 m backbone/drop cable, T-connectors, power cable, and terminators for the NMEA 2000® network
Mounting hardware
Documentation
