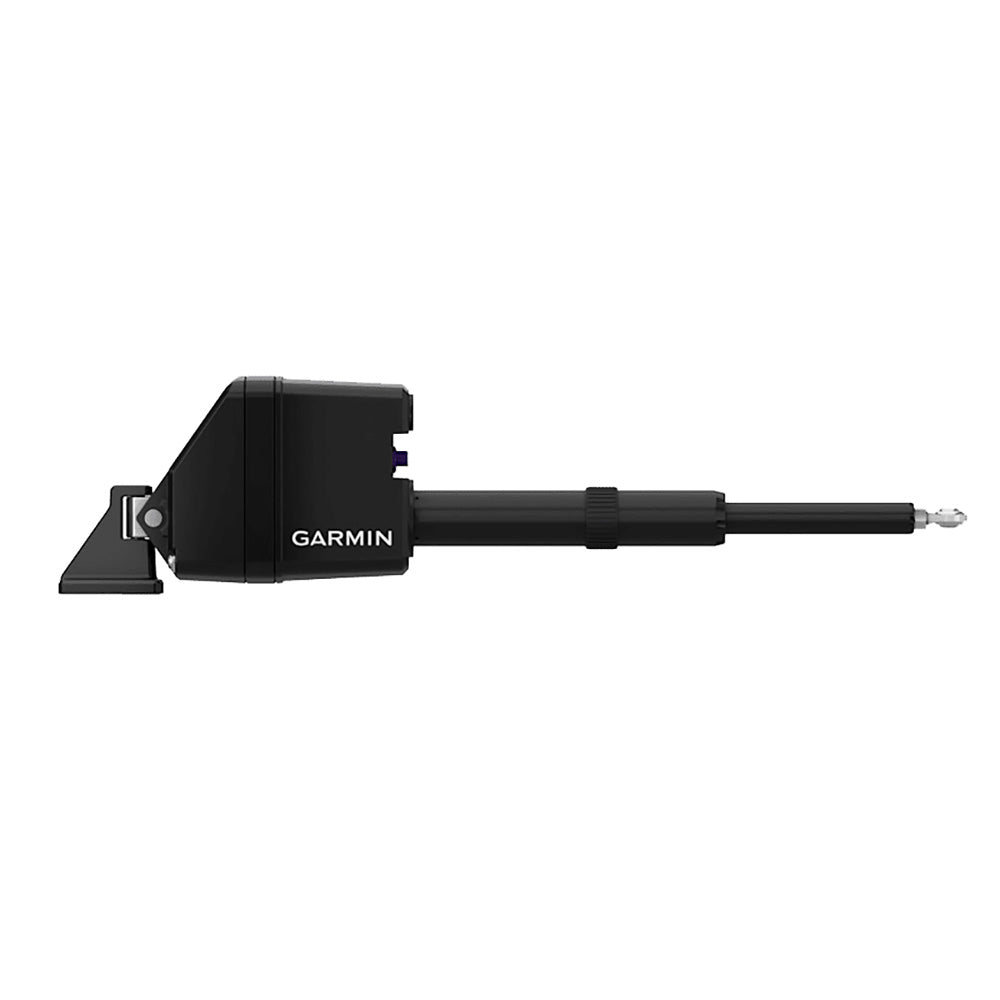

SmartDrive™ Autopilot Actuator for Sailboats
The Reactor 40 sail corepack with SmartDrive actuator is the first sailboat autopilot to use a brushless linear actuator with a built-in ECU. Get precise rudder awareness with minimal mechanical wear.
Features:
- BUILT-IN ECU FULLY ENGINEERED AND MADE BY GARMIN
- PREMIUM AUTOPILOT PERFORMANCE WITH MAXIMUM THRUST UP TO 1,050 LBS
- CONTACTLESS RUDDER POSITION SENSOR FOR SUPERIOR RELIABILITY AND FEWER MOVING PARTS
- SIMILAR FORM FACTOR TO OTHER ACTUATORS ALLOWS EASY REPLACEMENT FOR RETROFIT
- USER-ADJUSTABLE MAX FORCE OUTPUT SUITS A WIDE RANGE OF VESSELS
- MORE ACCURATE TACK AND GYBE WITH ADJUSTABLE SPEED, AUTO RESPONSE, AND IMPROVED UPWIND HOLD
FITS YOUR VESSEL
The brushless linear actuator is suitable for a wide range of sailboats and catamarans (up to 45 feet/maximum 33,000 lbs displacement).
SMARTDRIVE ACTUATOR
This product is the first sailboat autopilot to use a brushless DC motor with a built-in ECU to provide superior performance and simplified installation.
Specifications
Specifications
Identification
| MPN | 010-02794-12 |
|---|
General
| Drive unit type | Mechanical linear |
|---|---|
| Maximum boat displacement | 33,000 lbs (15,000 kg) |
| Maximum thrust (adjustable software setting) | High: 1050 lbs (476 kg), Medium: 600 lbs (272 kg), Low: 400 lbs (181 kg) |
| Lock-to-lock time | 11 seconds |
| Water ingress | IPX7 |
Physical
| Stroke length | 12" (300 mm) |
|---|---|
| Dimensions, including base, mid-stroke (WxHxD) | 4.5" x 7.75" x 27.6" (114 x 197 x 700 mm) |
| Weight | 19.8 lbs (9 kg) |
Electrical
| Supply voltage | 10 to 32 Vdc |
|---|---|
| Average typical current at 12 V | 0.8 to 5 A, depending on conditions |
| Peak momentary current | 25 A |
Performance
| Operating temperature | -20° to 55° C (-4° to 131° F) |
|---|
