Garmin | SKU: GAR/010-02842-00 | Barcode: 753759320751

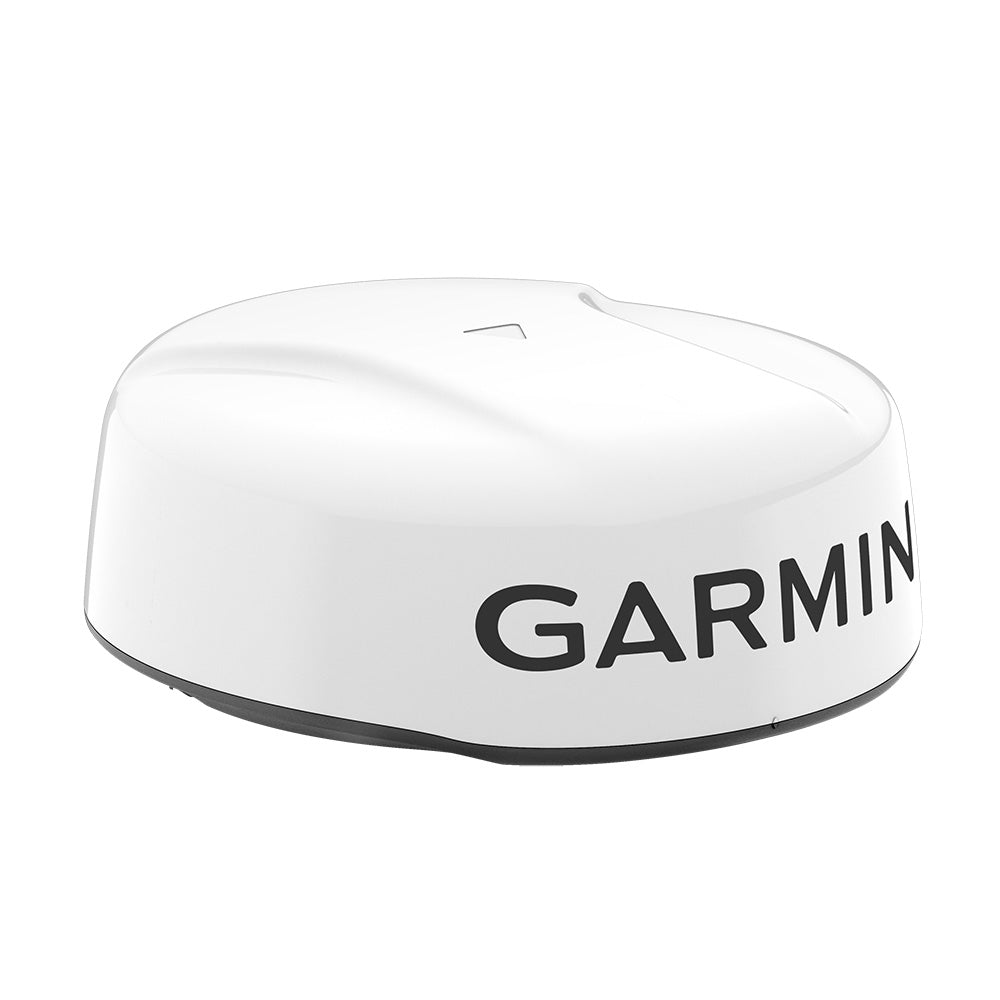

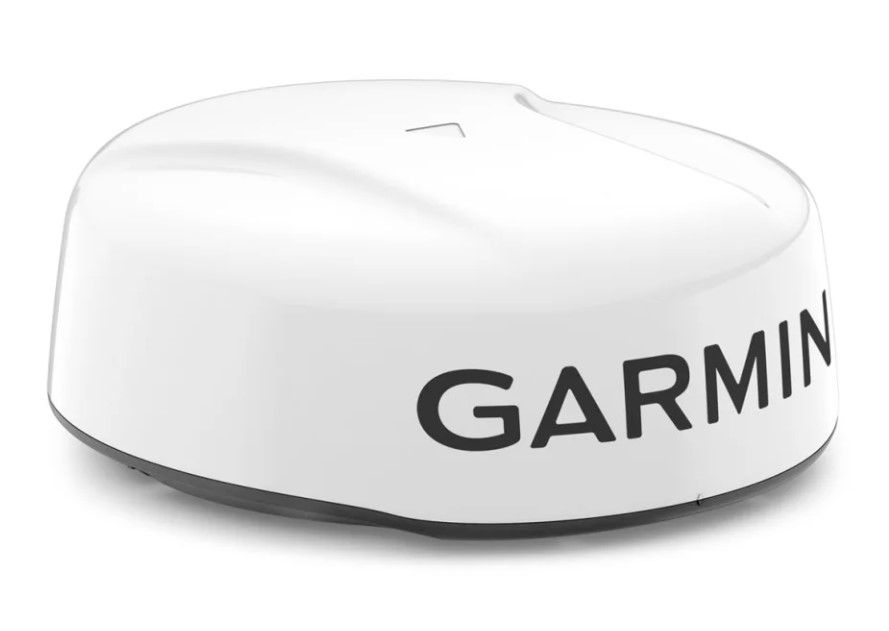

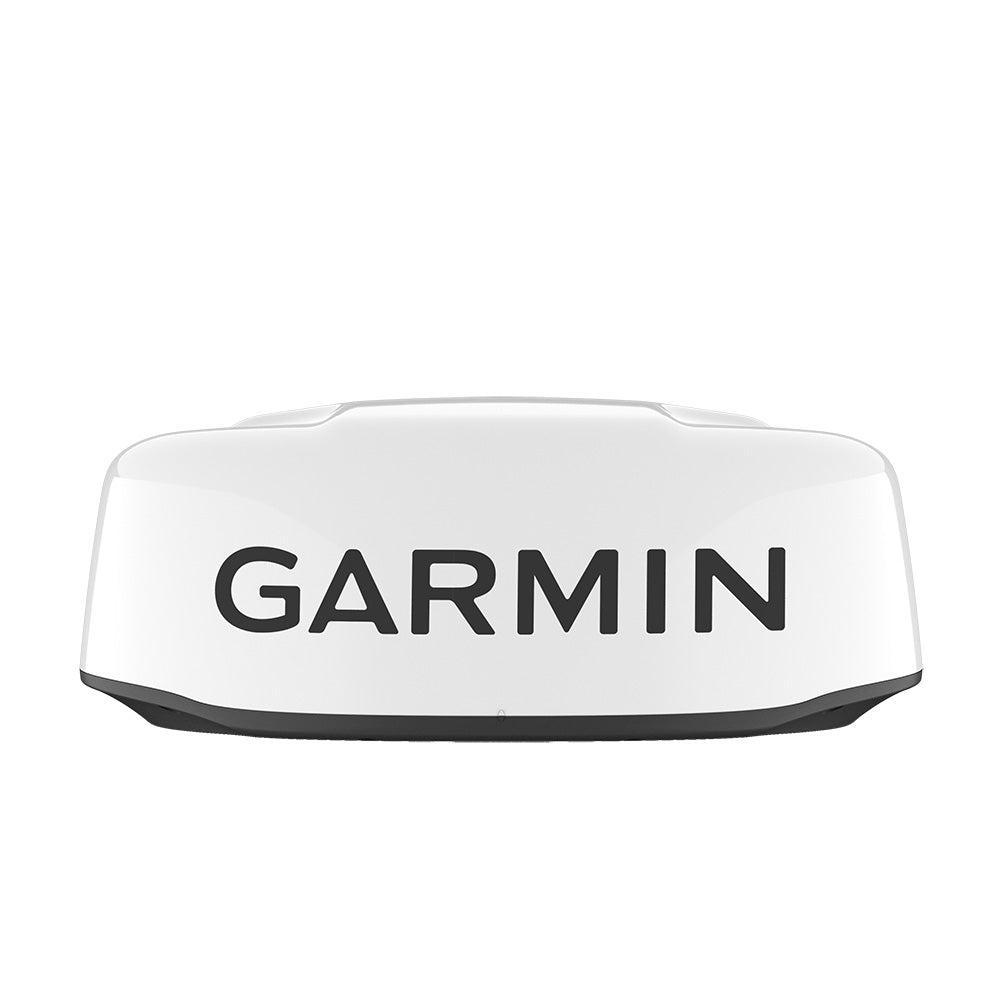

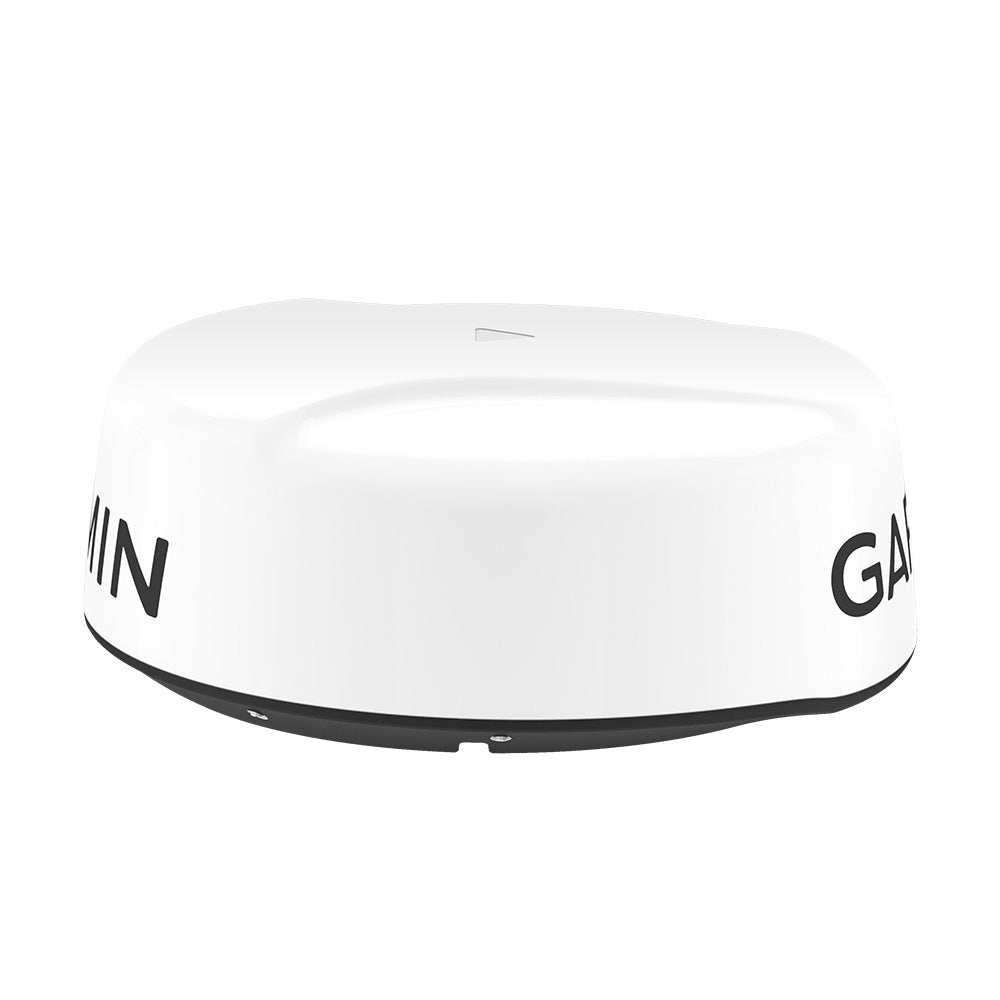

GMR24 xHD3 Dome Radar

White 24" xHD3 Magnetron Dome Radar

$2,799⁹⁹

Options

GMR18 xHD3 Dome Radar

White 18" xHD3 Magnetron Dome Radar

GMR24 xHD3 Dome Radar

White 24" xHD3 Magnetron Dome Radar

Need This Product Installed?

We Offer Mobile Installation From West Palm Beach - Fort Pierce, FL

Click Here To Set Up Your Installation

Description

See more of what’s out there, and gain extra peace of mind with the GMR™ xHD3 series dome radars. Combining high-definition imaging with our latest platform technology, these robust 4-kW magnetron radars offer new levels of confidence, clarity and performance for boaters who want to venture out on the water. Scan averaging, a first for Garmin magnetron radar, results in reduced sea clutter and interference on the display. Plus, other advanced features include true echo trails, auto bird gain, improved target-size processing and more. Delivering crisp, high-resolution picture quality and up to a 48-nautical mile detection range, these radars easily connect to your compatible Garmin chartplotter or MFD through the Garmin Marine Network.

Specifications

Product Series

xHD3
MPN

010-02842-00
Physical

Dimensions: 25.4" x 9.8" (64.5 cm x 24.9 cm)
Weight: 19.18 lbs (8.7 kg)
Power

Input: 11-32v DC
Standby Draw: 15 W
Typical Draw: 40 W
Radar

Type: Radome
Technology: Magnetron
Power Output: 4 kW
Beamwidth: 3.7° horizontal, 25° vertical
Min Range: 65' (20 m)
Max Range: 48 nm
RPM: Up to 60 rpm, depending on settings
Modes: Dual Range, Overlay
IP Rating

IPx7

Reviews (0)

In The Box

In The Box:

GMR 24 xHD3 dome radar
Power cable (15 m/49.21 ft)
Network cable (15 m/49.21 ft)
Mounting hardware kit and template
Installation instructions

Package Dimensions:

Support/Warranty

Product Support:

Subscription Information:

Release Date:

Warranty: 2yr

* ALL WARRANTY IS THROUGH MANUFACTURE *
