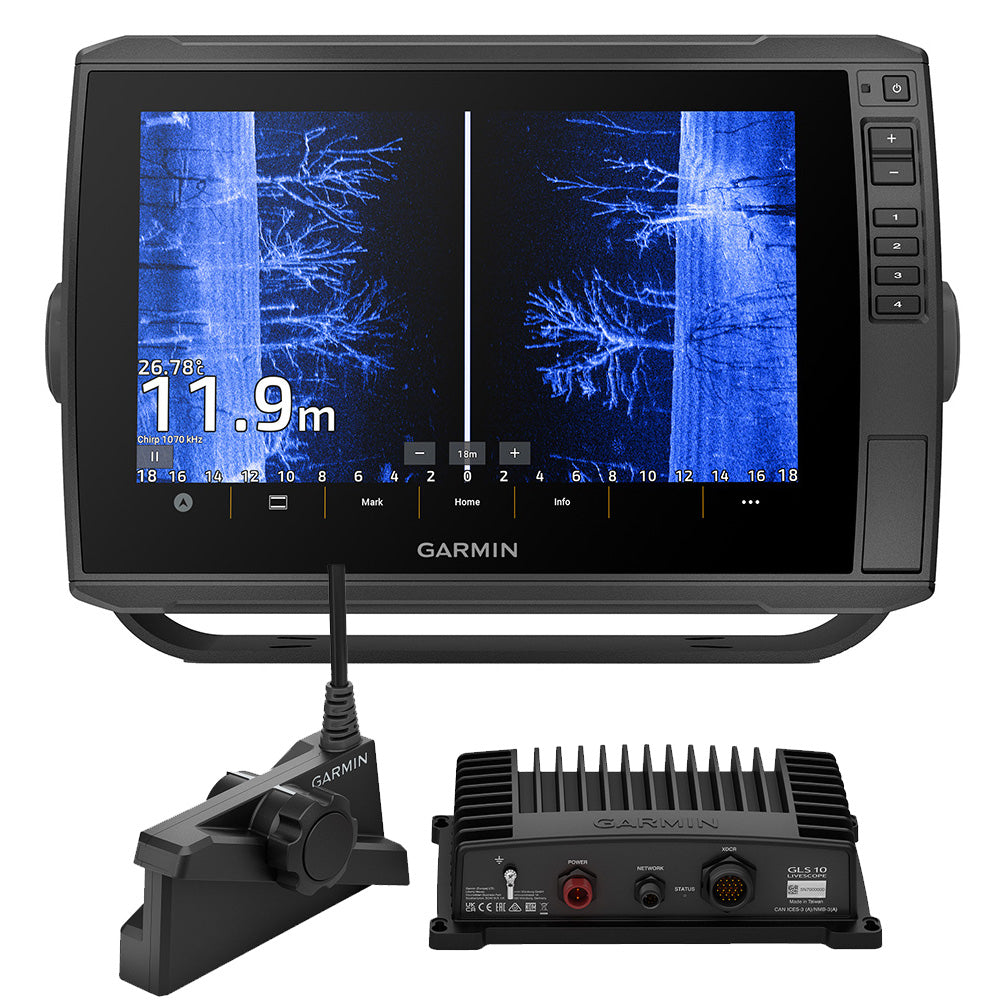

ECHOMAP™ Ultra 2 102sv Livescope LVS34 Bundle
With big, crisp, sunlight-readable touchscreen displays, these versatile chartplotters put a world of fish-finding capability at the angler's fingertips.
Features:
- ECHOMAP™ Ultra 2 102sv with Worldwide Basemap
- 10” touchscreen
- Supports livescope™ sonar, and more
- Wirelessly network; share sonar, waypoints, and routes.
- Capture screen recordings to share fish catches
- Multi-band GPS for improved position accuracy
Livescope™ Sonar Support
The ECHOMAP Ultra 2 series supports the full lineup of LiveScope live-scanning sonar products (transducers sold separately).
Built-in UHD Sonar
Select models are bundled with a GT56 transducer, which provides Garmin CHIRP traditional sonar and Ultra High-Definition ClearVü™ and SideVü™ scanning sonars for photo-like images of what’s beneath the surface.
Vivid Color Palettes
High-contrast, vivid scanning sonar color palettes make it easier than ever to distinguish targets and structures.
Premium Map Upgrades
Bring a fresh new look and feel to the chartplotter with optional Garmin Navionics Vision+™ premium mapping (sold separately), featuring high-resolution relief shading, satellite imagery, and more.
Wireless Networking
If users have another compatible ECHOMAP Ultra 2 or ECHOMAP UHD2 chartplotter on the boat, users can wirelessly share information — such as sonar, waypoints, and routes — with them.
Additional Features:
- Stay Connected
- Multi-Band GPS - Get improved position accuracy with multi-band GPS
- NMEA 2000® Network Compatibility - Connect to heading sensors, autopilots, Fusion-Link™ audio systems, and more.
- ActiveCaptain® App - Pair with the free smart-device app for software updates, screen recording, Garmin Quickdraw™ Community data, and more.
- Force® Trolling Motor - Wirelessly connect to a Force trolling motor to navigate to waypoints, draw and follow routes, and more.
- Take It With You - The quick-disconnect bail mount lets users quickly install and remove the unit.
Specifications
Specifications
Identification
| MPN | 010-02879-00/LIVESCOPE |
|---|
General:
| Dimension | 11.6" x 7.7" x 3.9" (29.5 x 19.5 x 9.8 cm) |
|---|---|
| Weight | 4.0 lbs (1.8 kg) |
| Waterproof | IPX7 |
| Touchscreen | Yes |
| Display Type | WXGA, IPS |
| Display Size | 8.5" x 5.4"; 10" diagonal (21.7 x 13.6 cm; 25.4 cm diagonal) |
| Display Resolution | 1280 x 800 pixels |
| Mounting Options | Bail or flush |
| Input | Touchscreen with Keyed Assist |
Maps & Memory:
| Accepts Data Cards | 2 microSD cards |
|---|---|
| Waypoints | 5000 |
| Track Points | 50,000 |
| Tracks | 50 saved tracks |
| Navigation Routes | 100 |
Sensors:
| GPS | Yes |
|---|---|
| GLONASS | Yes |
| Galileo | Yes |
| BeiDou | Yes |
| Has Built-In Receiver | Yes |
| Receiver | 10 Hz |
| NMEA 2000 Compatible | Yes |
| NMEA 0183 Compatible | Yes |
| Supports WAAS | Yes |
| Supports Multi-Band, Multi-Constellation GPS | Yes |
Built-In Maps:
| Built-In Auto Guidance+ | Yes |
|---|---|
| Garmin Navionics+ Inland & Coastal | Yes (see Additional) |
| Tide Tables | Yes (see Additional) |
Optional Map Support:
| BlueChart g3 | Yes |
|---|---|
| BlueChart g3 Vision | Yes |
| LakeVü g3 | Yes |
| LakeVü g3 Ultra | Yes |
| Garmin Navionics+™ | Yes |
| Garmin Navionics+ Vision+™ | Yes |
| TOPO 100k | Yes |
| Standard Mapping | Yes |
| Garmin Quickdraw Contours | Yes |
Chartplotter Features:
| AIS | Yes |
|---|---|
| DSC | Yes |
| Supports Fusion-Link™ Compatible Radios | Yes |
| ActiveCaptain® Compatible | Yes |
| Sailing Features | Yes |
Electrical Features:
| Power Input | 9 to 18 VDC |
|---|---|
| Typical Current Draw at 12 VDC | 2.5 A |
| Maximum Current Draw at 12 VDC | 5.0 A |
| Maximum Power Usage at 10 VDC | 36 W |
Sonar Features:
| Displays Sonar | Yes |
|---|---|
| Power Output | 600 W |
| Traditional Sonar (Dual Frequency/Beam) | Built-in (Single Channel Chirp, 70/83/200 Khz, L, M, H Chirp) |
| ClearVü | Built-in 260/455/800/1000/1200 kHz |
| SideVü | Built-in 260/455/800/1000/1200 kHz |
| Panoptix™ Sonar | Yes |
| Livescope | Yes |
Connections:
| NMEA 2000® Ports | 1 |
|---|---|
| Garmin Marine Network Ports | 2 (Large Connector) |
| 12-Pin Transducer Ports | 12-Pin Scanning Sonar |
| ANT+ (Connectivity) | Yes |
| Garmin Wi-Fi Network (Local Connection) | Yes |
General
| Sonar Type | LiveScope™ Plus |
|---|
