Garmin | SKU: GAR/010-02919-03 | Barcode: 753759335076

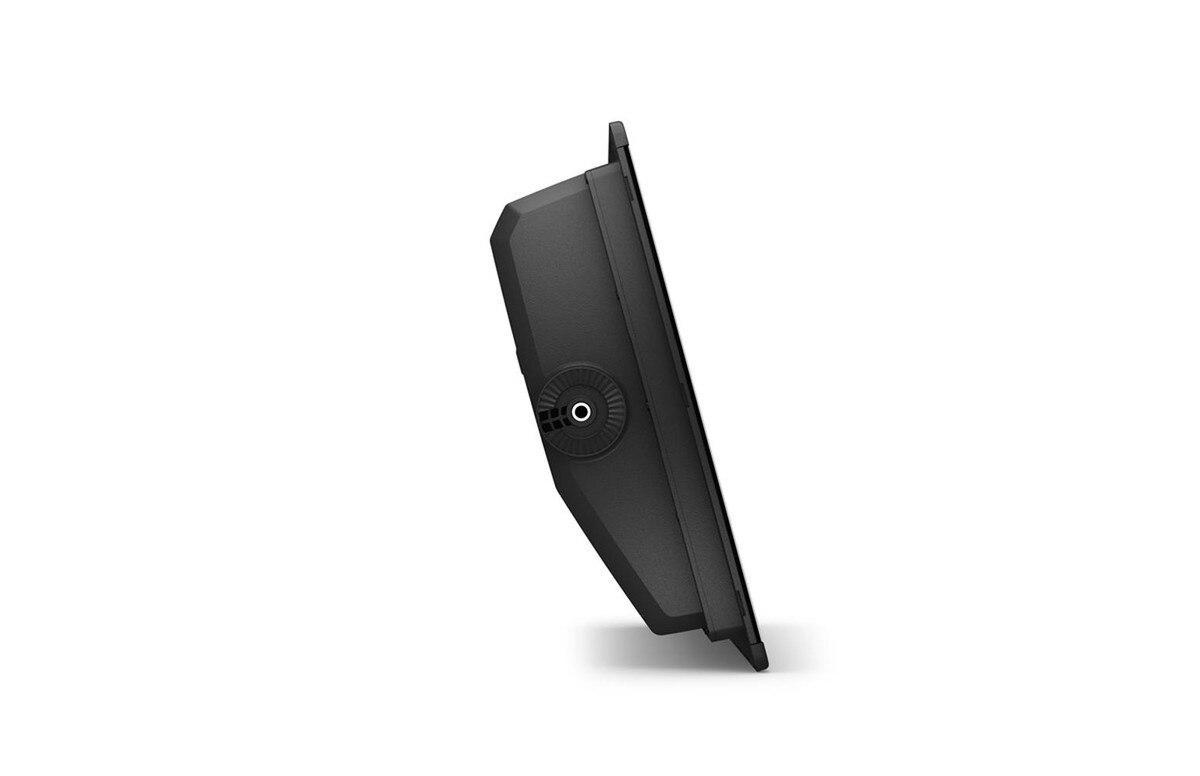

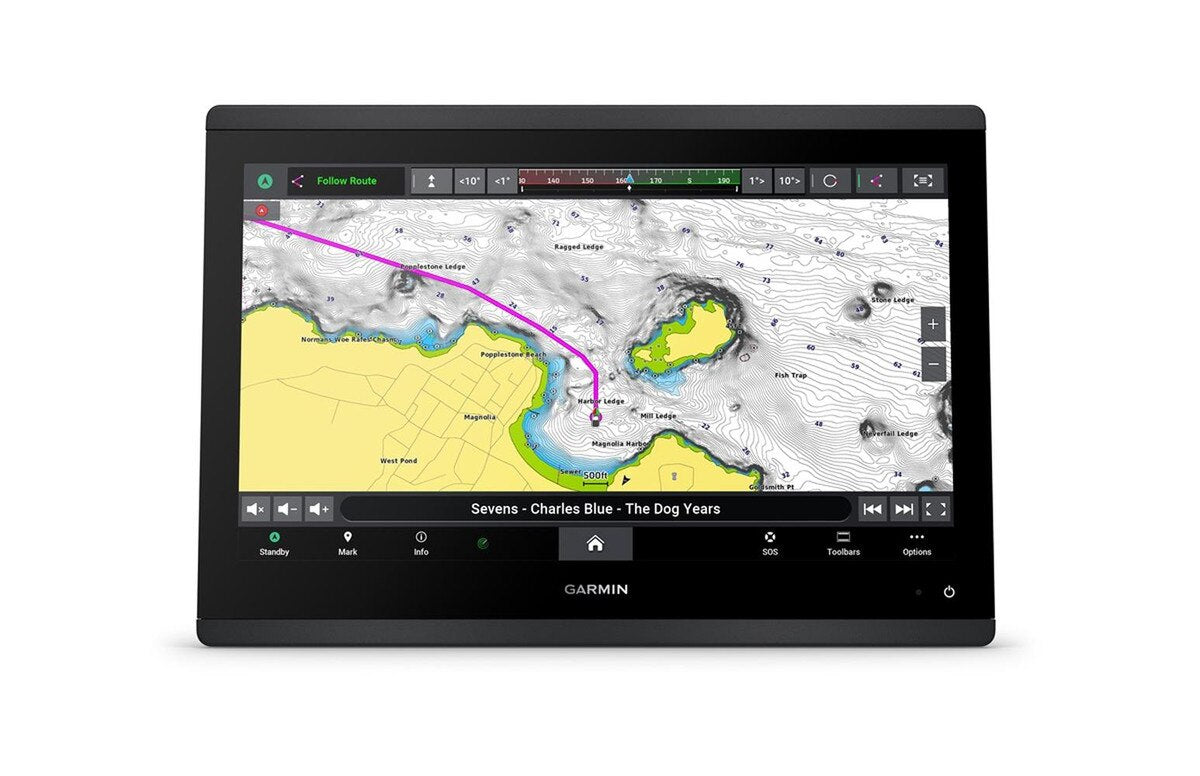

GPSmap 1643xsv Multi-Function Display

Name: GPSmap 1643xsv Multi-Function Display
Brand: Garmin
SKU: GAR/010-02919-03
Price: 4899.99 USD
Availability: InStock

16" MFD w/ Built-In Sonar & Navionics+

$4,899⁹⁹ $5,099⁹⁹

Options

GPSmap 1623 Multi-Function Display

16" MFD

GPSmap 1623xsv Multi-Function Display

16" MFD w/ Built-In Sonar

GPSmap 1643 Multi-Function Display

16" MFD w/ Navionics+

GPSmap 1643xsv Multi-Function Display

16" MFD w/ Built-In Sonar & Navionics+

Need This Product Installed?

We Offer Mobile Installation From West Palm Beach - Fort Pierce, FL

Click Here To Set Up Your Installation

Description

SERIOUS ANGLERS, CRUISERS, SAILORS AND SAIL RACERS DEMAND SERIOUS EQUIPMENT

PRELOADED MAPPING

Experience unparalleled coverage and detail with built-in Garmin Navionics+^™integrated coastal and inland mapping that includes Auto Guidance+^™technology and a 1-year subscription for downloadable daily updates and more on select chartplotters.

ULTRA HIGH-DEFINITION SCANNING SONAR

Get built-in Ultra High-Definition SideVü^™ and ClearVü^™scanning sonars with vivid, high-contrast color palettes to help distinguish fish from structure. The GPSMAP X3 chartplotter series also supports 1 kW traditional sonar capabilities.

Specifications

Product Series

GPSmap x3
MPN

010-02919-03
Physical

Dimensions: 15.1” x 10.3” x 3.0” (38.4 x 26.2 x 7.6 cm)
Weight: 9.7 lbs (4.4 kg)
Mounting

Type: Bracket (Sold Separately), Flush or Flat
Cutout: 14 3/4" x 9 3/16 (375 mm x 234 mm)
Power

Input: 10-32v DC
Typical Draw: 3.61 A @ 12v
Max Draw: 6.07 A @ 12v
Screen

Touchscreen: Yes
Type: FHD, IPS
Size: 15.6"
Resolution: 1920 x 1080
Sonar

Built-In Sonar: Yes
Port: 12pin
Power: 1kW
Frequencies:
Traditional: Dual Channel CHIRP, 70/83/200 kHz, L, M, H CHIRP)
ClearVu: 260/455/800/1000/1200 kHz
SideVu: 260/455/800/1000/1200 kHz

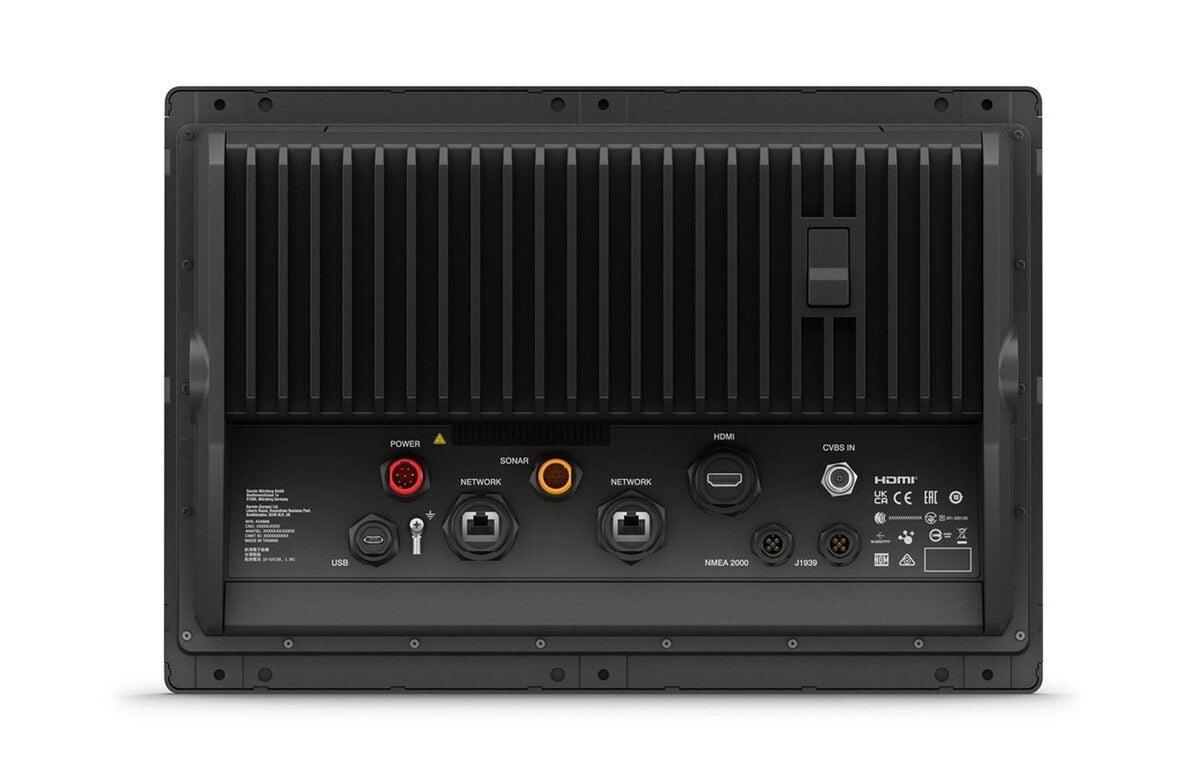

Connectivity

Built-In GPS: Yes - 10Hz
SD Cards: Yes - microSD (2)
Wireless: WiFi, Bluetooth, ANT
Network: Marine Network (2)
NMEA 0183: Yes
NMEA 2000: Yes
J1939: Yes
Analog Video In: Yes
HDMI In: No
HDMI Out: No
USB: Yes
Sonar: Yes - 12pin
Built-In Chart

Garmin Navionics+
IP Rating

IPx7

Reviews (0)

In The Box

In The Box:

- GPSMAP 1643xsv chartplotter
- microSD™ card preinstalled
- Power cable
- NMEA 2000® T-connector
- NMEA 2000 drop cable (2 meters)
- 8-pin transducer to 12-pin sounder adapter cable
- Bail mount kit with knobs
- Flush mount kit with gasket
- Protective c

Package Dimensions:

Support/Warranty

Product Support: Garmin 1643xsv Support

Subscription Information:

Release Date:

Warranty: 2

Garmin Warranty Policy

* ALL WARRANTY IS THROUGH MANUFACTURE *
