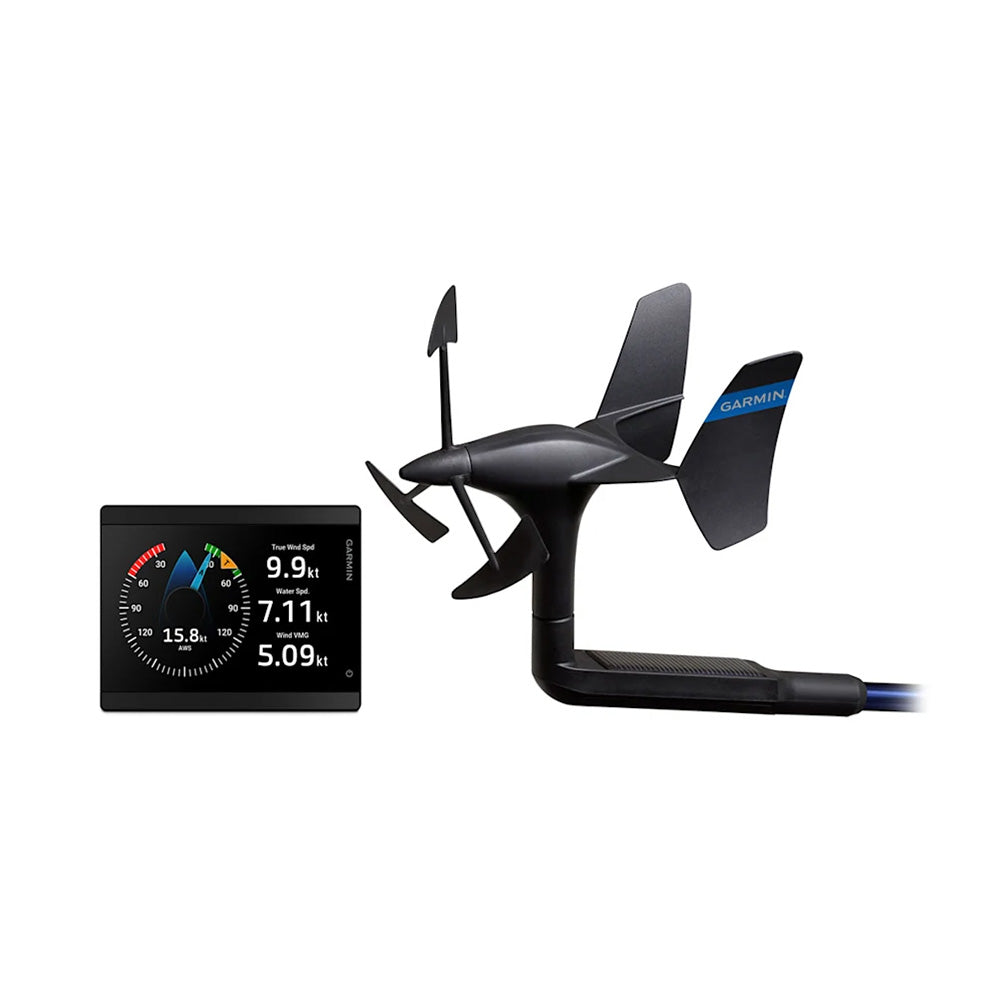

GMI™ 40 Wireless Wind Pack - GMI 40 Wind Instrument; gWind™ Wireless 2 Transducer
GMI 40 is the compact, easy-to-use multipurpose marine instrument that provides real-time data from your compatible devices on its high-resolution touchscreen display.
Features:
- High-Resolution 4.3" touchscreen display
- Wirelessly connects to the gWind sensor
- Supports real-time wind, speed, depth, heading, engine, fuel data, and more from your compatible devices
- Integrates with NMEA 2000® and Garmin Bluenet™ networks
- Software updates via Activecaptain® smartphone app
- Wirelessly shares data to your Garmin marine smartwatch
SLEEK & STREAMLINED
This modern touchscreen display has an intuitive interface and edge-to-edge glass that complements the look of your Garmin chartplotters.
COMPLETELY INTEGRATED
As an NMEA 2000-certified device, your GMI 40 marine instrument integrates smoothly with compatible systems across your boat.
SIMPLE YET CUSTOMIZABLE
Flexible gauge sets and page layouts let you place the data you need exactly where you want it.
A NETWORK YOU CAN TRUST
Garmin BlueNet offers streamlined connectivity with compatible Garmin devices for full-system integration.
SEAMLESS DATA
See the shift before you feel it with easy-to-read real-time wind, speed, depth, and heading insights from your compatible devices.
SIMPLIFIED ENGINE DATA
See engine and fuel data from your compatible devices at a glance to easily monitor levels and optimize performance.
Specifications
Specifications
Identification
| MPN | 010-03411-60 |
|---|
gWind™ Wired Wind Sensor
| Note 1 | Eliminate Wires Through Your Mast |
|---|---|
| Note 2 | An easy-to-install solution that eliminates running wires through masts up to 50 feet |
| Note 3 | 3-bladed propeller for more accurate wind speed in lighter wind conditions |
| Note 4 | Twin-fin design gives a more stable wind angle |
| Note 5 | Solar panel mounted on the transducer arm |
| Note 6 | Internal solar-charged battery lasts 3 years and is easily replaced |
Physical
| Unit Dimension, WxH | 13.6" x 24" (345 mm x 610 mm) |
|---|---|
| Weight | 350 g |
General
| Waterproof | Yes (IPX6¹) |
|---|
Performance
| Temp Range | From 5°F to 158°F (-15°C to 70°C) |
|---|---|
| Storage Temperature | From -4°F to 176°F (-20°C to 80°C) |
| Accuracy Angle | Better than ±1.5° |
| Speed | Better than ±3% |
| Wind Speed Range | 0. 8-90 knots (0. 4-50 m/s) |
Electrical
| Power Usage | Battery (rechargeable through the solar panel) |
|---|
Control & Connectivity
| Wireless Connectivity | Yes |
|---|
