Garmin  |  SKU: 010-02689-01

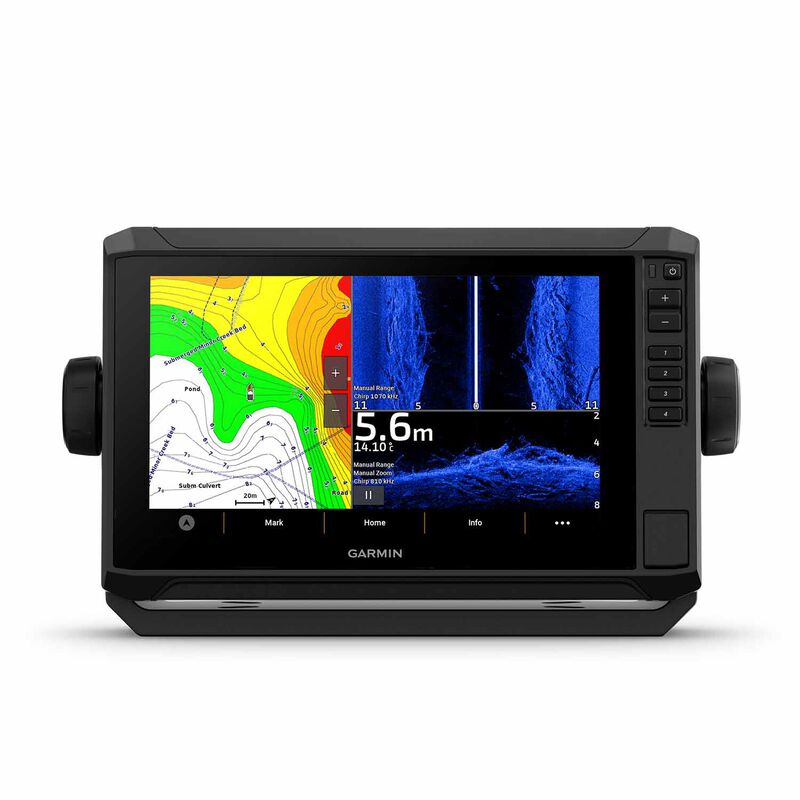

ECHOmap 94sv UHD2 Chartplotter w/ GT56UHD-TM Transducer

$1,19999 $1,29999

KNOW THE WATER BETTER THAN A LOCAL

When it comes to catching more fish, they say, “Talk to a local.” With the ECHOMAP UHD2 chartplotter, which offers our best-in-class sonar and mapping and premium touchscreen display with keyed-assist, you’ll know the water even better than they do.


Barcode: 753759308001
5.0 lb
  • Physical
    Dimensions:
    W: 10.4" (26.4 cm)
    H: 6.5" (16.6 cm)
    D: 3.2" (8.0 cm)
    Weight: 2.9 lbs (1.3 kg)
  • Screen
    Touchscreen: Yes (Keyed Assist)
    Size: 9.0" Diagonal (7.8" x 4.5")
    Resolution: 1024 x 600
    IPS Display: No
  • Sonar
    500 W
    Traditional: Built In - single channel CHIRP, 50/77/83/200 kHz, L, M, H CHIRP
    ClearVu: Built In - 260/455/800/1000/1200 kHz
    SideVu: Built In - 260/455/800/1000/1200 kHz
  • Power
    Power Input: 9 to 18 Vdc
    Power Draw:
    - Typical: 1.72 A
    - Max: 3.5 A
  • Connections
    Wireless: WiFi
    Physical Connections:
    - Power
    - Network (Large Garmin Marine Network)
    - Sonar (12pin)
    - NMEA2000
  • Other
    GPS: Built In (5 Hz)
  • Water Rating
    IPx7
