Garmin | SKU: 010-02365-61

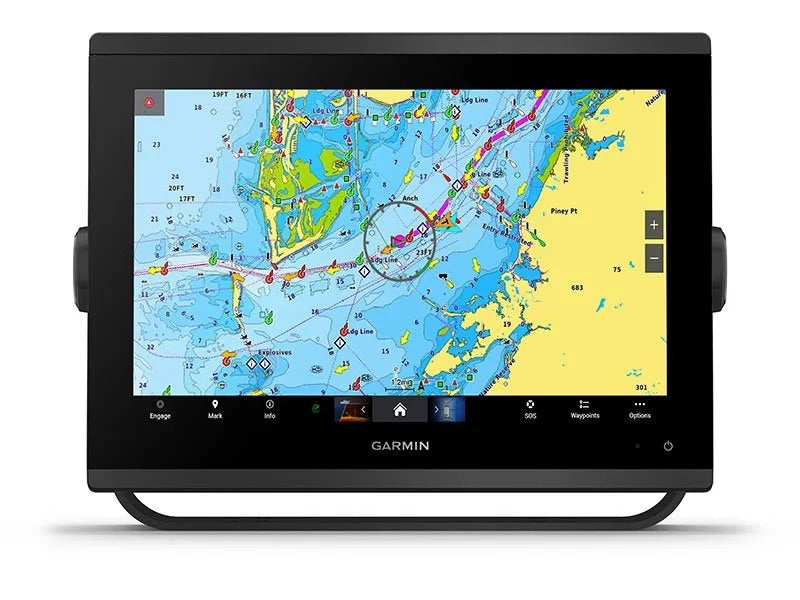

GPSmap 743xsv Multi-Function Display

Name: GPSmap 743xsv Multi-Function Display
Brand: Garmin
SKU: 010-02365-61
Price: 999.99 USD
Availability: InStock

$999⁹⁹ ~~$1,199⁹⁹~~

SERIOUS ANGLERS, CRUISERS, SAILORS AND SAIL RACERS DEMAND SERIOUS EQUIPMENT

PRELOADED MAPPING

Experience unparalleled coverage and detail with built-in Garmin Navionics+^™integrated coastal and inland mapping that includes Auto Guidance+^™technology and a 1-year subscription for downloadable daily updates and more on select chartplotters.

ULTRA HIGH-DEFINITION SCANNING SONAR

Get built-in Ultra High-Definition SideVü^™ and ClearVü^™scanning sonars with vivid, high-contrast color palettes to help distinguish fish from structure. The GPSMAP X3 chartplotter series also supports 1 kW traditional sonar capabilities.

Looking for Manuals & Documents?

Garmin GPSmap x3 Product Help

Chartplotter & MFD

Barcode: 753759285302

4.0 lb

Physical

Dimensions:
W: 7.6" (19.2 cm)
H: 5.5" (14.0 cm)
D: 2.9" (7.4 cm)
Weight: 2.8lbs
Screen

Touchscreen: Yes
Size: 7.0" (6.1" x 3.5")
Resolution: 1024 x 600
IPS Display: No
Sonar

Built In Sonar: Yes (12pin)
Power: 1kW
Frequencies:
- Traditional: built-in (dual channel CHIRP, 70/83/200 kHz, L, M, H CHIRP)
- ClearVu: built-in 260/455/800/1000/1200 kHz
- SideVu: built-in 260/455/800/1000/1200 kHz
Power

Power Input: 10 - 32v DC
Power Draw:
- Typical: 1.18 A
- Max: 2.96 A
Connections

2 microSD cards (Back Of Unit)
Wireless: BlueTooth | WiFi | ANT+
Physical Connections:
- 12pin Sonar
- Network (1)
- MEA2000
- J1939
- USB
- 8pin Power
Other

GPS: Internal (10Hz)
Built-In Chart

Garmin Navionics+
Water Rating

IPx7
