Garmin  |  SKU: 010-02091-51

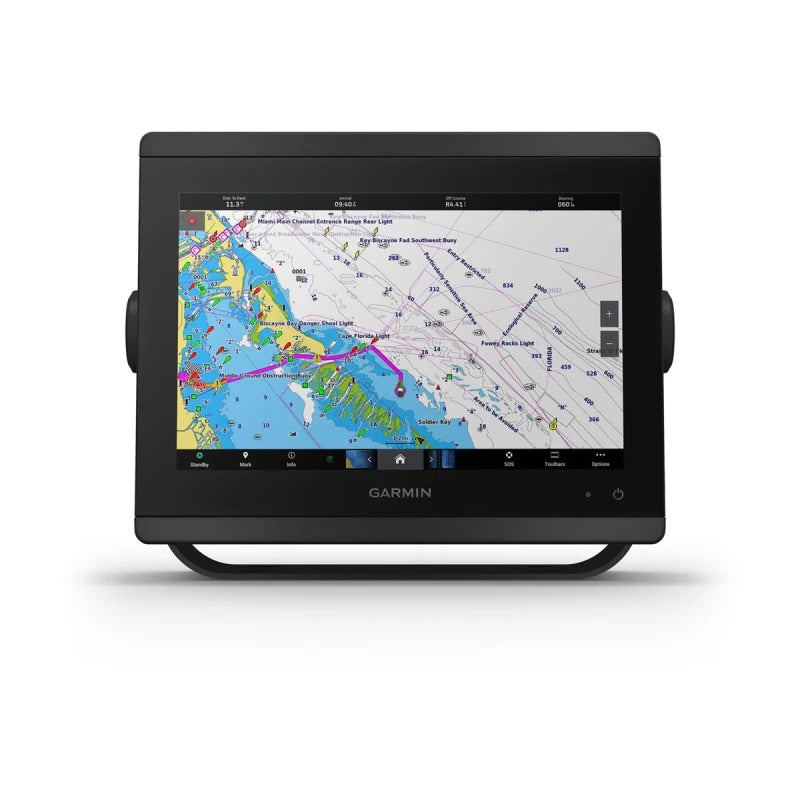

GPSmap 8610xsv Multi-Function Display

$2,39999 $2,79999

SERIOUS ANGLERS, CRUISERS, SAILORS AND SAIL RACERS DEMAND SERIOUS EQUIPMENT

Looking for Manuals & Documents?

Garmin GPSmap 8000 Series Product Help

Chartplotter & MFD
Barcode: 753759285364
14.0 lb
  • Physical
    Dimensions:
    W: 10.25" (25.9 cm)
    H: 8.0625" (20.5 cm)
    D: 2.95" (7.5 cm)
    Weight: 5.2 lbs (2.4 kg)
  • Screen
    Touchscreen: Yes
    Size: 10.1" (8.6" x 5.4")
    Resolution: 1920 x 1200
    IPS Display: Yes
  • Sonar
    Built In Sonar: Yes (8pin & 12pin)
    Power: 1kW
    Frequencies:
    - Traditional: built-in (dual channel CHIRP, 70/83/200 kHz, L, M, H CHIRP)
    - ClearVu: built-in 260/455/800/1000/1200 kHz
    - SideVu: built-in 260/455/800/1000/1200 kHz
  • Power
    Power Input: 10-32v DC
    Power Draw:
    - Typical: 1.5 A
    - Max: 6.0 A
  • Connections
    Wireless: BlueTooth | WiFi | ANT+
    (2) MicroSD Cards (Back of Unit)
    Physical Connections:
    - 2pin Power
    - Garmin Marine Network (2)
    - 8pin Sonar
    - 12pin Sonar
    - LVS Sonar Port
    - USB
    - NMEA2000
    - J1939
    - BNC Video In
    - Audio Out (NMEA0183)
    - HDMI In
    - HDMI Out
  • Other
    GPS: Internal (10 Hz)
  • Built-In Chart
    Garmin Navionics+
  • Water Rating
    IPx7
