Garmin  |  SKU: 010-02092-50  |  Barcode: 753759285395

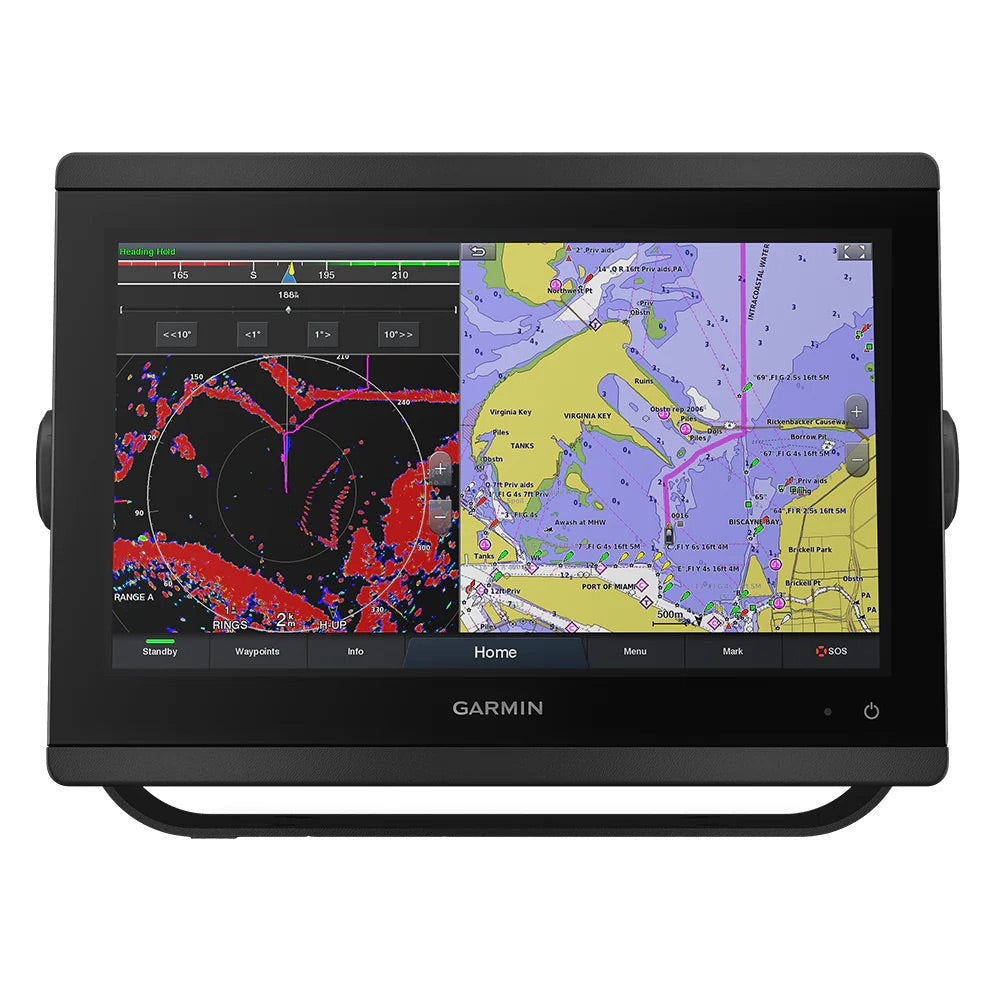

GPSmap 8612 Multi-Function Display

$3,19999 $3,59999

SERIOUS ANGLERS, CRUISERS, SAILORS AND SAIL RACERS DEMAND SERIOUS EQUIPMENT



  PRELOADED MAPPING

Experience unparalleled coverage and detail with built-in Garmin Navionics+integrated coastal and inland mapping that includes Auto Guidance+technology and a 1-year subscription for downloadable daily updates and more on select chartplotters.

HD IPS TOUCHSCREEN

this display offers wider viewing angles, superior clarity and sunlight readability, even with polarized sunglasses.

SMARTMODE STATION CONTROLS

Get quick, one-touch access to the information you need to ease high-stress situations such as docking. You can incorporate networked sonar, radar, cameras, media and more.

SAILING POLARS

Use the polar table to see key data, including how fast you should go at a certain wind angle and speed — so you know whether you need to adjust sail trim.

Looking for Manuals & Documents?

  • Physical
    Dimensions:
    W: 11.9" (30.3 cm)
    H: 8.5" (21.6 cm)
    D: 3.0" (7.6 cm)
    Weight: 6lbs
  • Screen
    Touchscreen: Yes
    Size: 11.6" (10.1" x 5.7")
    Resolution: 1920 x 1200
    IPS Display: Yes
  • Sonar
    Built In Sonar: No (Requires Sonar Module or Networked XSV Unit)
  • Power
    Power Input: 10 to 32 Vdc
    Power Draw:
    - Typical: 1.5A
    - Max: 6A
  • Connections
    Wireless: BlueTooth | WiFi | ANT+
    Physical Connections:
    - 2pin Power
    - Garmin Marine Network (2)
    - USB
    - NMEA2000
    - J1939
    - BNC Video In
    - Audio Out (NMEA0183)
    - HDMI In
    - HDMI Out

    2 microSD cards
  • Other
    GPS: Internal (10 Hz)
  • Built-In Chart
    Garmin Navionics+
  • Water Rating
    IPx7
