Garmin  |  SKU: GAR/K10-00012-19  |  Barcode: 753759189884

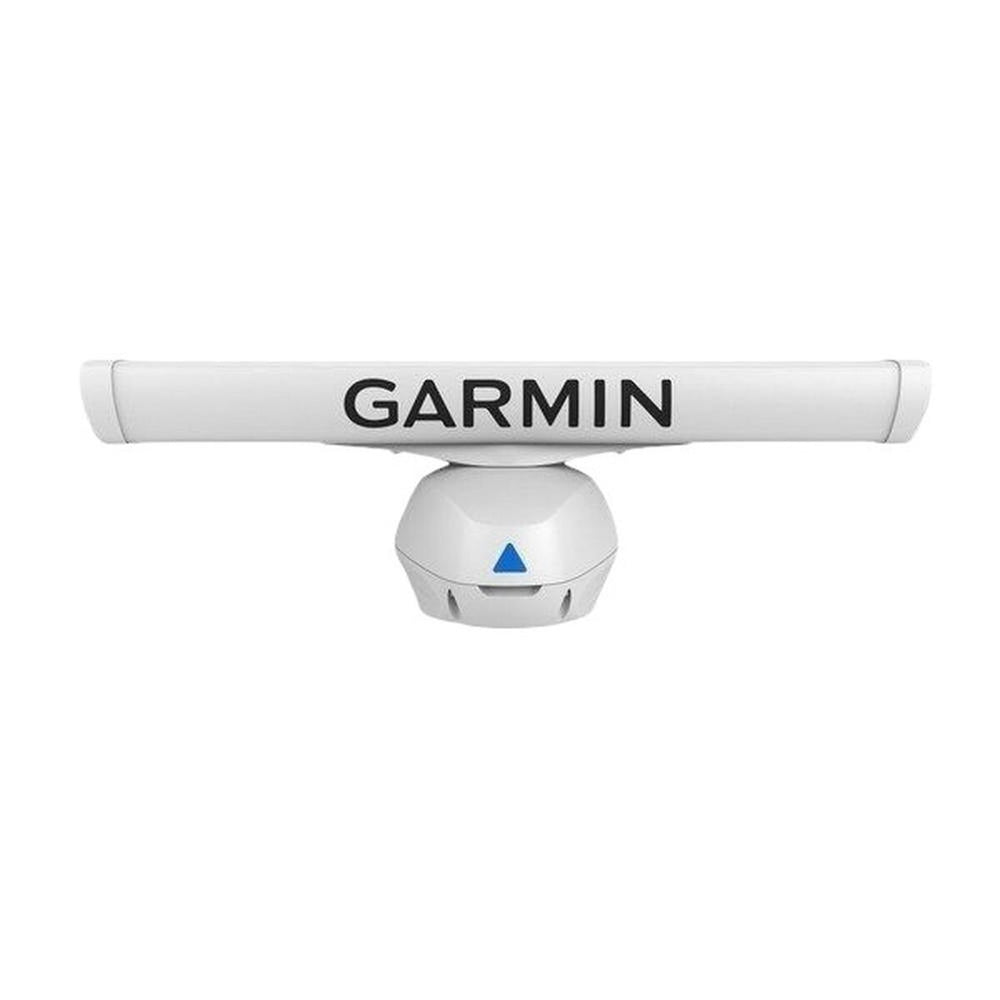

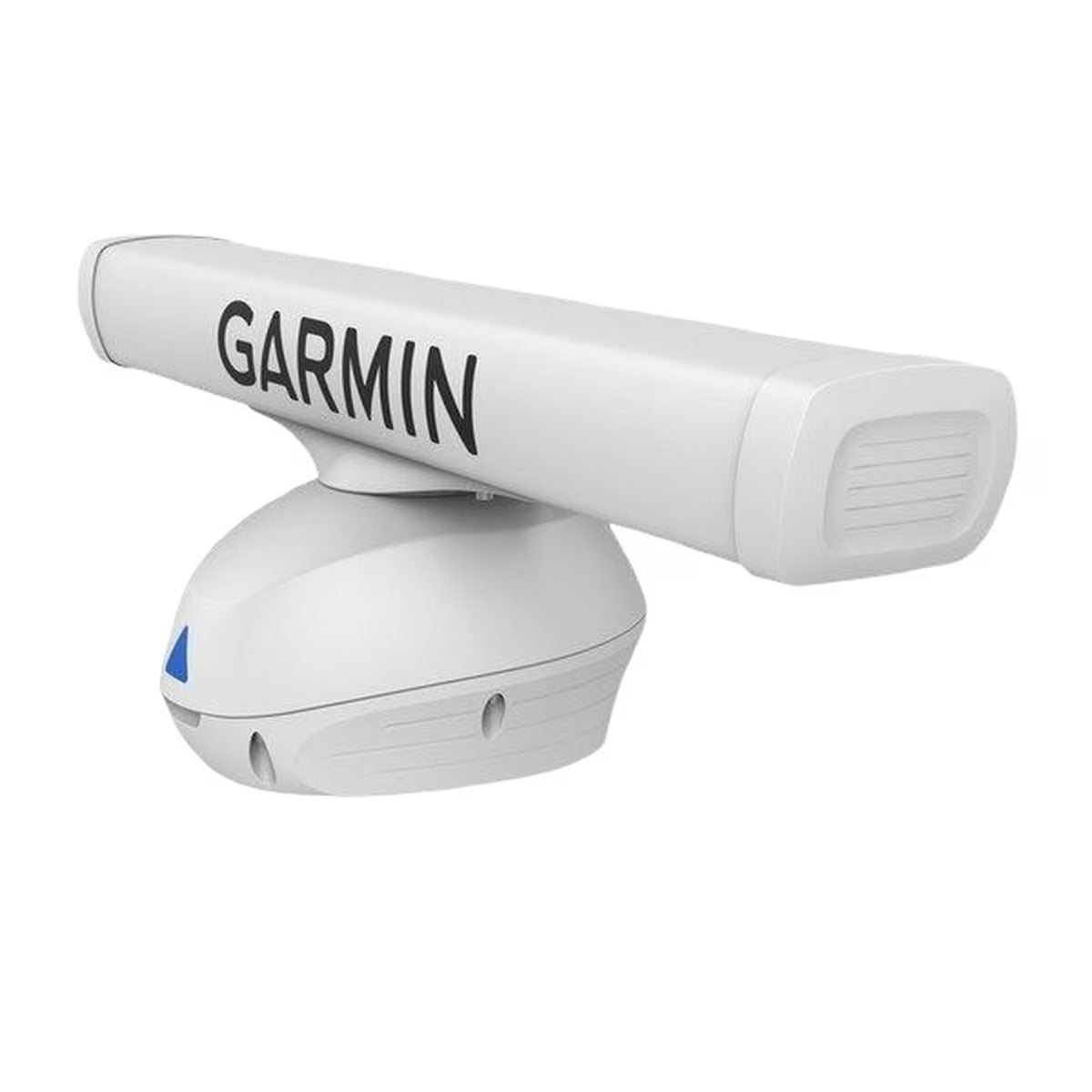

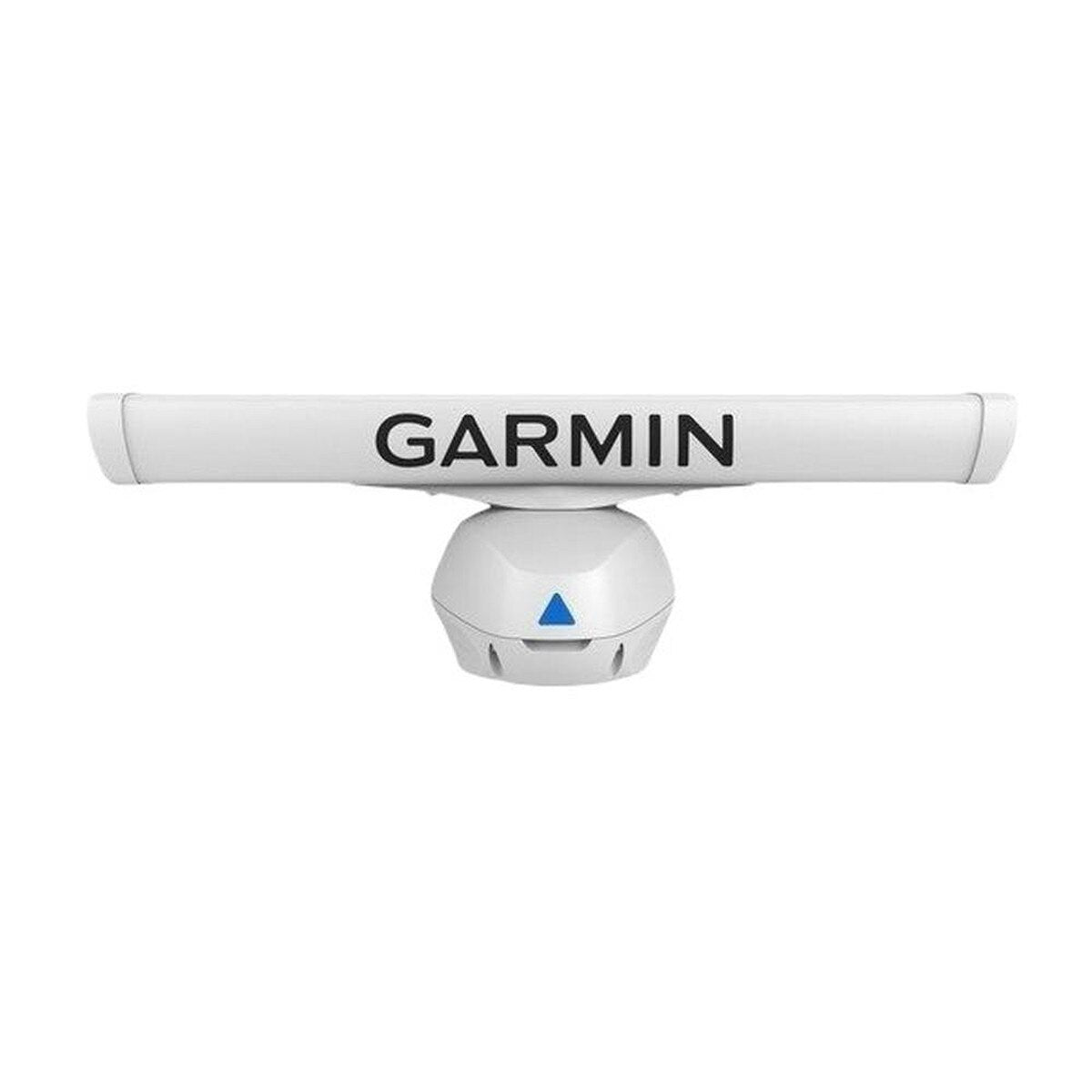

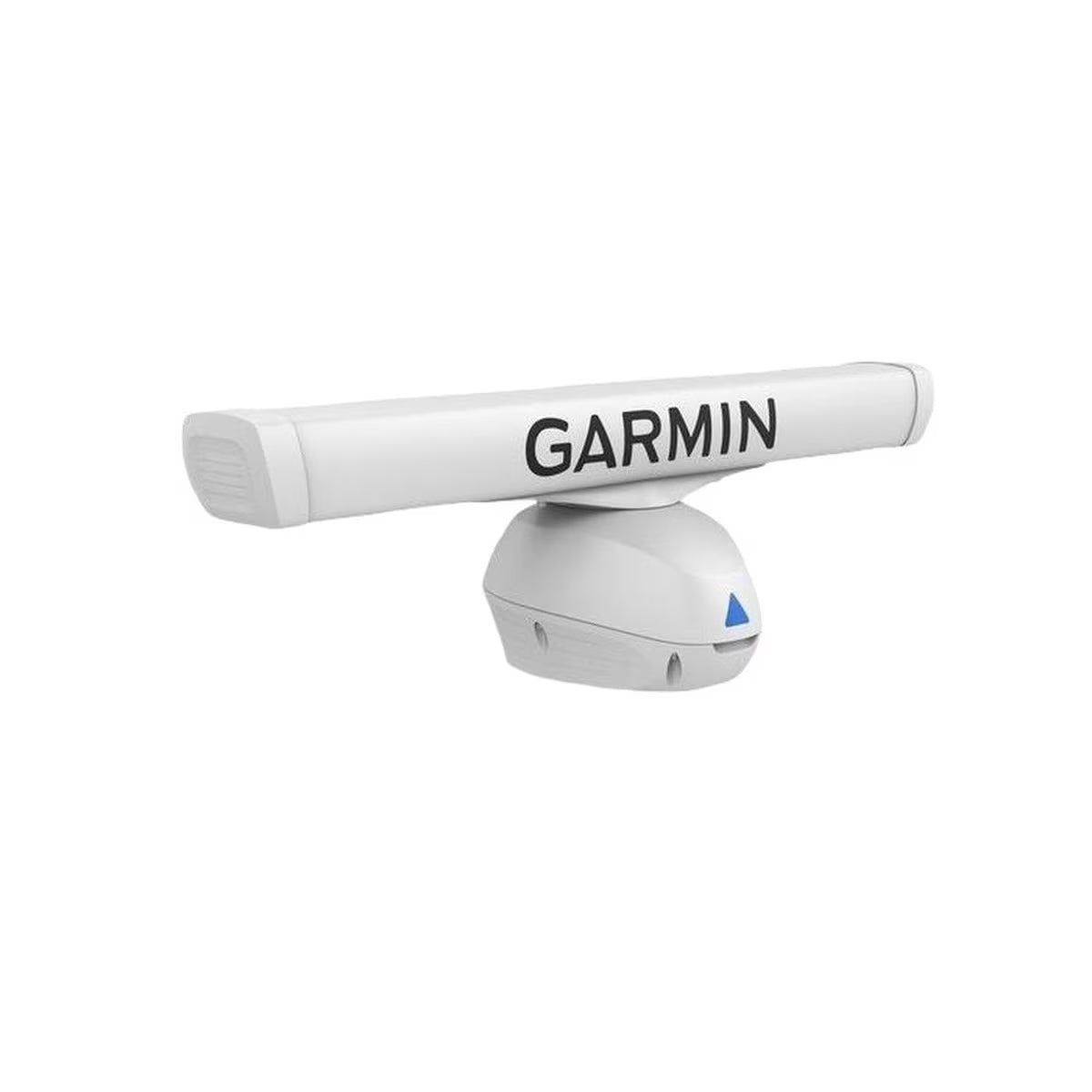

Fantom 124 Open Array Radar

White 120w Solid State Radar w/ 4' Antenna

Regular price $8,19999
Options

Need This Product Installed?

We Offer Mobile Installation From West Palm Beach - Fort Pierce, FL

Click Here To Set Up Your Installation

Description

HIGH-POWERED RADAR

This 120-watt solid-state radar has a range from 20’ to 96 nautical miles, even in fog or rain. It offers rotation speeds of 24 RPM for reduced power consumption and 48 RPM for fast screen updates.

HIGH-RESOLUTION RADAR

The 1.8-degree horizontal beamwidth provides a high-resolution image and high antenna gain to pick out even weak targets at a distance.

MOTIONSCOPE TECHNOLOGY

MotionScope uses the Doppler effect to detect moving targets and highlight them in different colors so you can navigate around other boats or severe weather — or toward fishing spots where birds feed at the surface.

Specifications

  • Product Series
    Fantom
  • MPN
    K10-00012-19
  • Physical
    Pedestal: 16.6" x 14.3" x 10.7"
    Full assembly: 15.9" height x 51.8" diameter
  • Power
    10-32 V DC
  • Radar
    Beamwidth: 1.8° horizontal, 23° vertical
    Max Range: 96 nm
    Min Range: 6 meters
    Max Wind Load: 80kt
    RPM: 24 & 48 (48 only available in single range mode with MotionScope disabled, and on range settings of 12 NM or lower)
  • Connectivity
    Garmin Marine Network
  • Other
    Max Wind Load: 80kt
  • IP Rating
    IPX6

Reviews (0)

In The Box

In The Box:

- GMR Fantom 124 antenna and pedestal (white)
- Mounting hardware kit and template
- Right angle power cable (15 meters)
- Right angle network cable (15 meters)
- Voltage converter
- Documentation

Package Dimensions:

Support/Warranty

Product Support: Garmin Fantom Series Radar Product Help

Subscription Information:

Release Date:

Warranty: 2

Garmin Warranty Policy

* ALL WARRANTY IS THROUGH MANUFACTURE *
