Garmin  |  SKU: 010-02613-00  |  Barcode: 753759324278

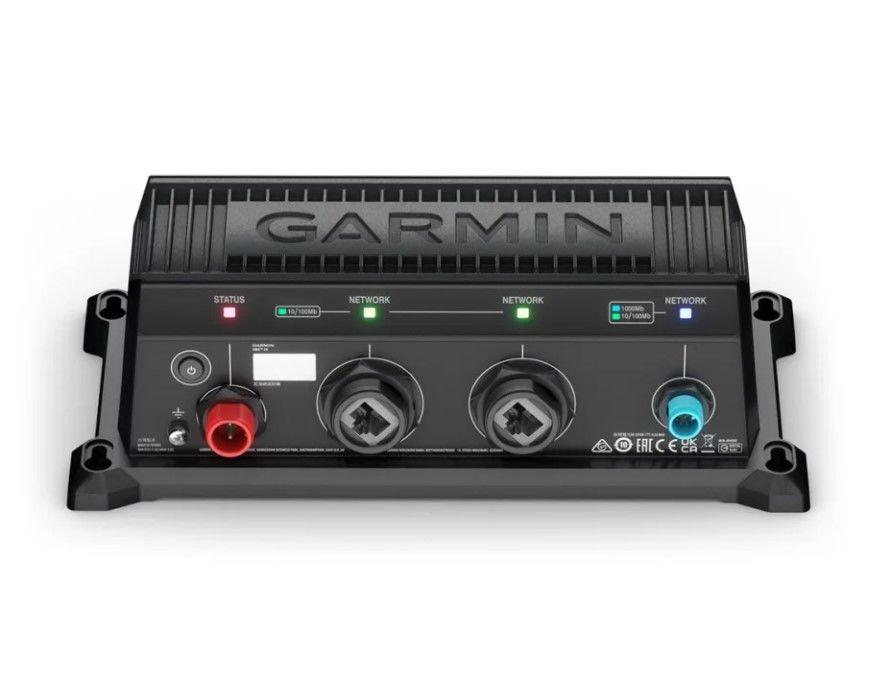

BlueNet 30 Gateway

$34999

The Garmin BlueNet 30 gateway is required for Garmin BlueNet™ network compatible devices to network with legacy Garmin marine devices. Through this gateway you can connect a Garmin BlueNet network to a legacy Garmin Marine Network for a premium control experience. You will only need one gateway to connect the two networks.

(The Garmin BlueNet 30 gateway is required only if connecting to legacy Garmin Marine Network products.
Diagram is for example network setup only and does not include necessary accessories, cables and adapters.)

5.0 lb
  • Physical Specs
    Dimensions:
    W: 9 7/16" (293 mm)
    H: 2 13/16" (72 mm)
    D: 4 7/16" (112.6 mm)

    Weight: 1.2lbs (.5 kg)
  • Power
    Power Input: 10-32v DC
    Power Draw:
    - Typical: 150 mA
    - Max: 200 mA
    Fuse: 2 A
  • Mounting
    Surface Mount (Hardware Included)
  • Connections
    The Garmin BlueNet 30 gateway is required only if connecting to legacy Garmin Marine Network products.
    Diagram is for example network setup only and does not include necessary accessories, cables and adapters.

    Physical Connections:
    - Power
    - Garmin Marine Network (x2)
    - Garmin BlueNet Network
  • Other
    Temperature Range: 5° to 158°F (-15° to 70°C)
    Water Rating: IPx7

    Compass Safe Distance: 4" (10 cm)
