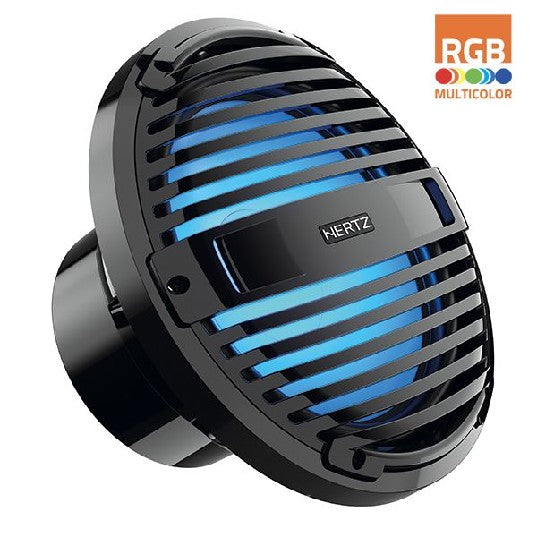

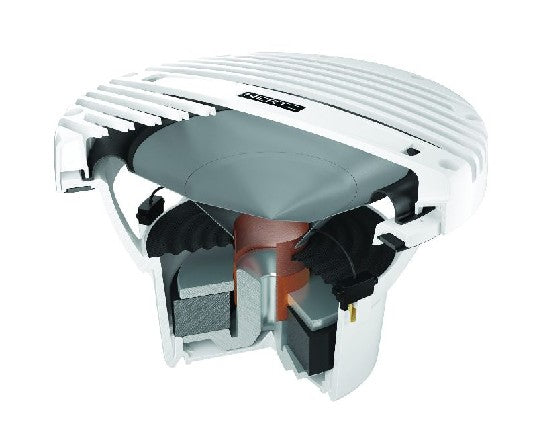

The new HMS 12 marine classic charcoal grille subwoofer is optimized to perform in open baffle applications for deep and punchy bass without the need to build a dedicated enclosure. HMS 12 features a stunning 500 W continuous power handling. The classic grille, features built-in LEDs. Can be easily and painted the perfect color for your vessel. The motor and suspension design is optimized for high-power, infinite-baffle operation featuring long linear excursion capability for tremendous output with low distortion. Hertz Marine subwoofers not only add tons of bass output to your system but also relieve the main speakers from the hard work of reproducing the lowest frequency range, thus maximizing overall system performance for unlimited sound pressure and emotion!
Specifications
Specifications
Identification
| MPN | 78035438 |
|---|---|
| Barcode | 8018823138666 |
Dimensions
| Size | 12" |
|---|---|
| Depth | 7.52 in. |
| Weight | 16.8 lb |
Mounting Dimensions
| Mounting Hole Diameter | 10.43 in. |
|---|---|
| Overall Frame Dimensions (A x B x C) | 13.5 x 11 x 7.59 in. |
Audio
| Power Handling (Continuous) | 500 W |
|---|---|
| Power Handling (Peak) | 1000 W |
| Sensitivity (SPL) | 89.5 dB |
| Nominal Impedance | 2 Ω |
| Voice Coil Diameter | 2.6 in. |
| Voice Coil Type | Single |
Lighting
| LED Lighting | Yes - Integrated RGB |
|---|---|
| LED Controller (Optional) | HM RGB 1 BK |
Parameters
| Free Air Resonance (Fs) | 30 Hz |
|---|---|
| Electrical Q (Qes) | 1.1 |
| Mechanical Q (Qms) | 11.1 |
| Total Q (Qts) | 1.0 |
| Equivalent Compliance (Vas) | 3.37 cu ft |
| Mechanical Excursion Limit (Xmax) | 0.75 in. |
| Mechanical Excursion Limit (Xmech) | N/A |
| DC Resistance (Re) | 1.8 Ω |
| Voice Coil Inductance (Le) | 0.41 mH |
| Mechanical Compliance (Cms) | 0.225 mm/N |
| Moving Mass (Mms) | 114 g |
| Force Factor (BL) | 8 T·m |
Materials
| Cone Material | Polypropylene with UV Inhibitors |
|---|---|
| Magnet Type | High Density Flux Ferrite |
| Magnet Dimensions | 6.14 x 3.15 x 1.57 in. |
Certifications & Protection
| Protection Rating | IP65 |
|---|---|
| UV Resistance | ASTM-D4329 Compliant |
| Salt Fog Resistance | ASTM-B117 Compliant |
