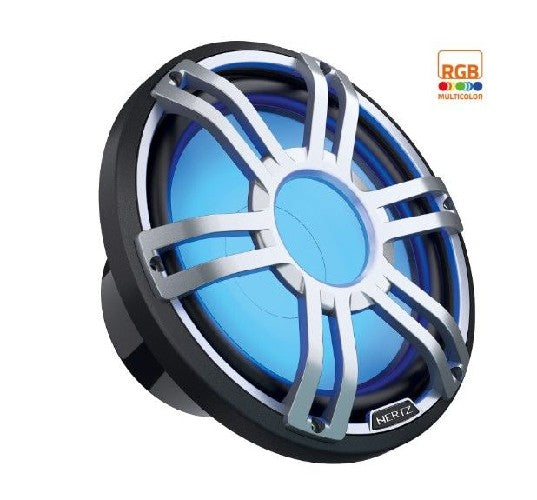

Hertz Audio HMS-S 10" Infinite-Baffle Subwoofer w/ RGB Lightin...
Description
Description
Sport grille, featuring built-in LEDs, can be easily removed to be painted with the perfect color for your vessel. HMS subwoofers are designed to be installed without the need for a dedicated enclosure delivering powerful and precise bass in any vessel. The motor and suspension design are optimized for high-power, infinite-baffle operation featuring long linear excursion capability for tremendous output with low-distortion. Hertz Marine subwoofers not only add tons of bass output to your system but also relieve the main speakers from the hard work of reproducing the lowest frequency range, maximizing the overall system performance, for unlimited sound pressure and emotion!
- Integrated RGB LED lighting to enhance your experience in combination with the HM RGB 1 BK accessory.
- 2. Sound-transparent sport grille easily removable to be painted with a custom color perfect for your boat.
- 3. Hertz Pure Marine Certified Product stamp featuring the IP65 protection grade, ASTM-D4329 standards for UV resistance and ASTM-B117 for salt fog operability.
- 4. Long-throw 50mm (2”) voice coil woofer engineered for infinite baffle application featuring polypropylene cone injected with UV inhibitors and co-molded Santoprene surround.
- 5. Progressive-design aramid fiber spider with silicone-insulated lead wires ensuring durability and constant performance over time.
- 6. FEM optimized high-excursion mobile equipment driven by a massive magnetic group encapsulated into a marine-grade polymer injected basket.
- 7. Gold-plated corrosion resistant brass connection terminals with silicone cap protecting leadwire junction point.
Specifications
Specifications
Identification
| MPN | 78035475 |
|---|
Dimensions
| Size | 10" |
|---|---|
| Depth | 4.56 in. |
| Weight | 11.24 lb |
Mounting Dimensions
| Mounting Hole Diameter | 9.06 in. |
|---|---|
| Overall Frame Dimensions (A x B x C) | 11.02 x 8.94 x 6.46 in. |
Audio
| Power Handling (Continuous) | 300 W |
|---|---|
| Power Handling (Peak) | 600 W |
| Sensitivity (SPL) | 88.5 dB |
| Nominal Impedance | 2 Ω |
| Voice Coil Diameter | 2" |
| Voice Coil Type | Single |
Lighting
| LED Lighting | Yes - Integrated RGB |
|---|---|
| LED Controller (Optional) | HM RGB 1 BK |
Parameters
| Free Air Resonance (Fs) | 43 Hz |
|---|---|
| Electrical Q (Qes) | 0.63 |
| Mechanical Q (Qms) | 12.3 |
| Total Q (Qts) | 0.60 |
| Equivalent Compliance (Vas) | 1.08 cu ft |
| Mechanical Excursion Limit (Xmax) | 0.48 in. |
| Mechanical Excursion Limit (Xmech) | ±0.64 in. |
| DC Resistance (Re) | 2.1 Ω |
| Voice Coil Inductance (Le) | 0.46 mH |
| Mechanical Compliance (Cms) | 0.18 mm/N |
| Moving Mass (Mms) | 75.6 g |
| Force Factor (BL) | 8.3 T·m |
Materials
| Cone Material | Polypropylene with UV Inhibitors |
|---|---|
| Magnet Type | High Density Flux Ferrite |
| Magnet Dimensions | 5.51 x 2.36 x 1.18 in. |
Certifications & Protection
| Protection Rating | IP65 |
|---|---|
| UV Resistance | ASTM-D4329 Compliant |
| Salt Fog Resistance | ASTM-B117 Compliant |
