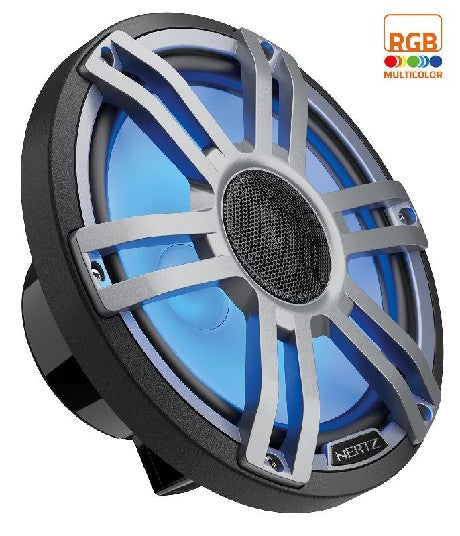

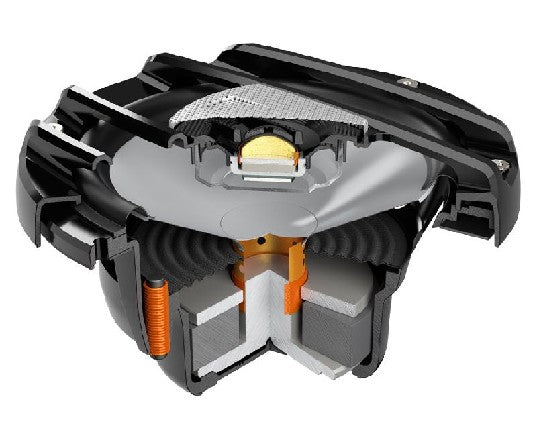

HMX 8 S-LD-G marine coaxial speaker features a sports paintable grille for a perfect match with sporty boats. The coaxial speaker is engineered to operate in open water, pleasing you with the incomparable emotions of music for years on end thanks to the special ASA plastic grilles and polypropylene cone with co-molded Santoprene surround. The Aramid fiber spider with silicone-insulated lead wire ensures durability and constant performance over time. Parts and assembly methods are designed to meet high-humidity marine environments, ensuring the best audio performance season after season.
Specifications
Specifications
Identification
| MPN | 78040325 |
|---|---|
| Barcode | 8018823139298 |
Dimensions
| Size | 8.8" |
|---|---|
| Diameter | 8.86 in. |
| Depth | 5.06 in. |
| Weight | 3.66 lb |
Mounting Dimensions
| Mounting Hole | 6.85 in. |
|---|---|
| Frontal Grille Protrusion | 1.48 in. |
Audio
| Power Handling (Continuous) | 100 W |
|---|---|
| Power Handling (Peak) | 200 W |
| Sensitivity (SPL) | 91 dB |
| Nominal Impedance | 4 Ω |
| Frequency Response | 45 Hz – 25 kHz |
| Tweeter Diaphragm | 1.4" |
| Woofer Voice Coil Diameter | 1.26" |
| Tweeter Voice Coil Diameter | 0.8" |
| Protection Rating | IP65 |
Lighting
| LED Lighting | Yes - Integrated RGB |
|---|---|
| LED Controller (Optional) | HM RGB 1 BK |
Parameters
| Free Air Resonance (Fs) | 50 Hz |
|---|---|
| Electrical Q (Qes) | 0.61 |
| Mechanical Q (Qms) | 11 |
| Total Q (Qts) | 0.58 |
| Equivalent Compliance (Vas) | 1.04 cu ft |
| Mechanical Excursion Limit (Xmech) | ±0.33" |
| Effective Diaphragm Diameter (D) | 6.85 in. |
| DC Resistance (Re) | 3.1 Ω |
| Voice Coil Inductance (Le) | 0.52 mH |
| Mechanical Compliance (Cms) | 0.37 mm/N |
| Moving Mass (Mms) | 27.3 g |
| Force Factor (BL) | 6.6 T·m |
Materials
| Woofer Magnet | High Density Flux Ferrite |
|---|---|
| Woofer Magnet Size | 3.54 x 1.57 x 0.79" |
| Tweeter Magnet | Neodymium |
| Tweeter Magnet Size | 0.78 x 0.12" |
| Cone Material | Polypropylene with UV Inhibitors |
| Dome Material | PEI |
