Description
Description

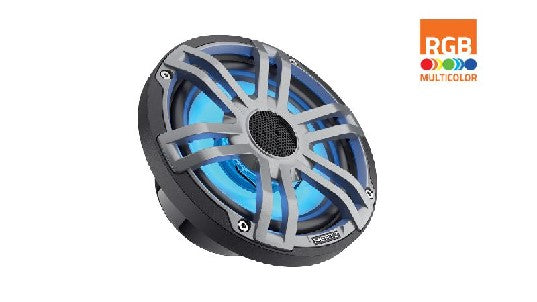

SPORT option grille HEX coaxial with RGB LEDs lighting option always provide the perfect style for your boat, giving you years of pure fun while cruising, being over engineered and tested for Marine applications.
The compact 6.5” speaker, with a depth of only 2.36 in. delivers a detailed and dynamic sound, making every outing memorable.
Specifications
Specifications
Identification
| MPN | 78040375 |
|---|---|
| Barcode | 8018823135061 |
Dimensions
| Size | 6.5" |
|---|---|
| Diameter | 6.77 in. |
| Depth | 3.25 in. |
| Weight | 2.2 lb |
Mounting Dimensions
| Mounting Hole | 5.04 in. |
|---|---|
| Frontal Grille Protrusion | 0.96 in. |
Audio
| Power Handling (Continuous) | 50 W |
|---|---|
| Power Handling (Peak) | 100 W |
| Sensitivity (SPL) | 88 dB |
| Nominal Impedance | 4 Ω |
| Frequency Response | 50 Hz – 23 kHz |
| Woofer Voice Coil Diameter | 1" |
| Tweeter Voice Coil Diameter | 0.5" |
| Protection Rating | IP65 |
Lighting
| LED Lighting | Yes - Integrated RGB |
|---|---|
| LED Controller (Optional) | HM RGB 1 BK |
Parameters
| Free Air Resonance (Fs) | 78 Hz |
|---|---|
| Electrical Q (Qes) | 0.95 |
| Mechanical Q (Qms) | 6.1 |
| Total Q (Qts) | 0.82 |
| Equivalent Compliance (Vas) | 0.23 cu ft |
| Mechanical Excursion Limit (Xmech) | ±0.19" |
| DC Resistance (Re) | 3.3 Ω |
| Voice Coil Inductance (Le) | 0.109 mH |
| Mechanical Compliance (Cms) | 0.31 mm/N |
| Moving Mass (Mms) | 13.5 g |
| Force Factor (BL) | 4.8 T·m |
Materials
| Woofer Magnet | High Density Flux Ferrite |
|---|---|
| Woofer Magnet Size | 3.35 x 1.26 x 0.59" |
| Tweeter Magnet | Neodymium |
| Tweeter Magnet Size | 12.9 x 2 mm + 11 x 1.9 mm (dual-stack) |
| Cone Material | Polypropylene with UV Inhibitors |
| Dome Material | PEI |
