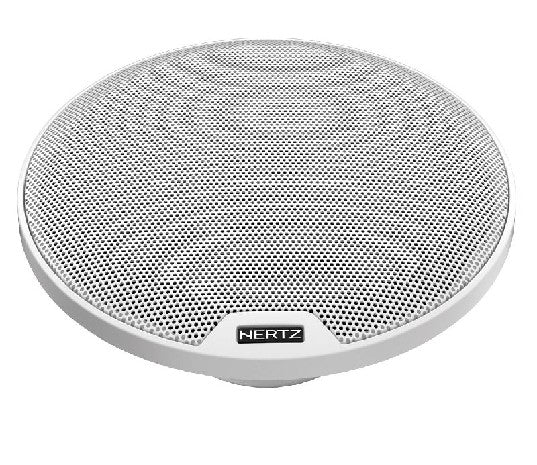

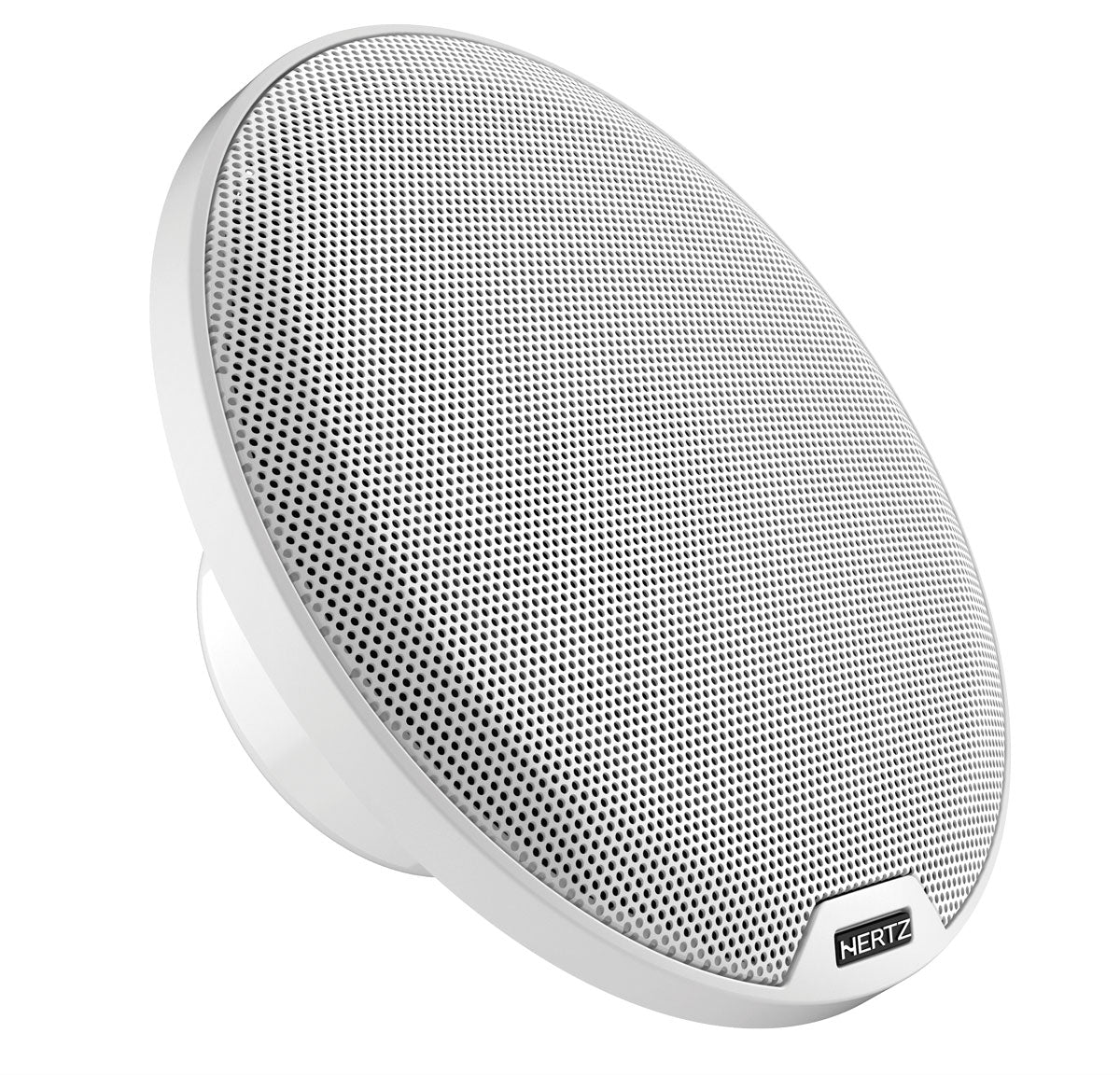

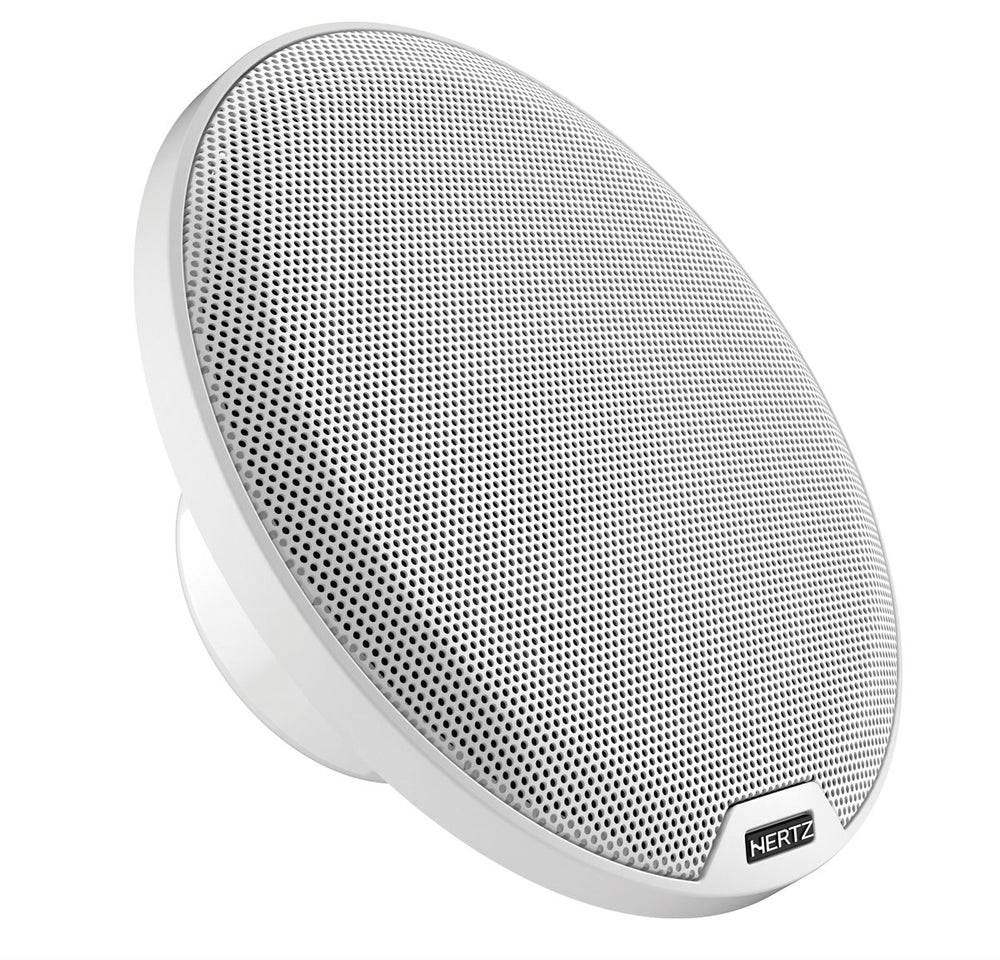

Hertz Audio HEX-C 6.5" Coaxial Speakers - HEX 6.5 C-W
Regular price
$29999
Total:
Unit price
SKU:
HTZ/78040380
Regular price
$29999
Total:
Unit price
Description
Description
HEX 6.5 C-W marine coaxial features classic grilles will give you years of pure fun while cruising, being over engineered and tested for Marine applications. The compact 6.5” speaker, with a depth of only 2.36 in. delivers a detailed and dynamic sound, making every outing memorable.
Specifications
Specifications
Identification
| MPN | 78040380 |
|---|---|
| Barcode | 8018823130110 |
Dimensions
| Size | 6.5" |
|---|---|
| Diameter | 7.58 in. |
| Depth | 3.33 in. |
| Weight | 2.2 lb |
Mounting Dimensions
| Mounting Hole | 5.04 in. |
|---|
Audio
| Power Handling (Continuous) | 50 W |
|---|---|
| Power Handling (Peak) | 100 W |
| Sensitivity (SPL) | 88 dB |
| Nominal Impedance | 4 Ω |
| Frequency Response | 50 Hz – 23 kHz |
| Woofer Voice Coil Diameter | 1" |
| Tweeter Voice Coil Diameter | 0.5" |
| Protection Rating | IP65 |
Parameters
| Free Air Resonance (Fs) | 78 Hz |
|---|---|
| Electrical Q (Qes) | 0.95 |
| Mechanical Q (Qms) | 6.1 |
| Total Q (Qts) | 0.82 |
| Equivalent Compliance (Vas) | 0.23 cu ft |
| Mechanical Excursion Limit (Xmech) | ±0.19" |
| DC Resistance (Re) | 3.3 Ω |
| Voice Coil Inductance (Le) | 0.109 mH |
| Mechanical Compliance (Cms) | 0.31 mm/N |
| Moving Mass (Mms) | 13.5 g |
| Force Factor (BL) | 4.8 T·m |
Materials
| Woofer Magnet | High Density Flux Ferrite |
|---|---|
| Woofer Magnet Size | 3.35 x 1.26 x 0.59" |
| Tweeter Magnet | Neodymium |
| Tweeter Magnet Size | 12.9 x 2 mm + 11 x 1.9 mm (dual-stack) |
| Cone Material | Polypropylene with UV Inhibitors |
| Dome Material | PEI |
Reviews (0)
Reviews (0)
In The Box
In The Box
In The Box:
Package Dimensions:
Available Shipping Methods:
Support
Support
* ALL WARRANTY IS THROUGH MANUFACTURE *
