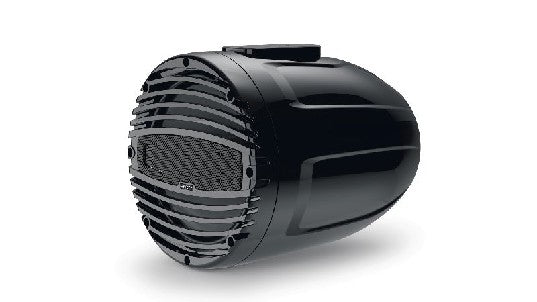

Hertz Audio HTX 8" Enclosed Coaxial Tower Speaker f/ Flat Moun...
Regular price
$49999
Total:
Unit price$49999
each
SKU:
HTZ/78049016
Regular price
$49999
Total:
Unit price$49999
each
Description
Description
HTX 8 M-FL-TC feature a tone-on-tone front mesh matching the grille color.
RGB LEDs lighting option will make your sport and leisure outings unforgettable, thanks to impressive audio performance and cool color lighting.
Mounts to flat surfaces.
This is possible thanks to Q-OS² (Quick Orientation & Release for Sound & Safety) patent pending technology.
“Adjustable logo” allows for several tower positioning without affecting the correct Hertz logo orientation. Front and rear logo can be oriented within 64 steps.
Specifications
Specifications
Identification
| MPN | 78049016 |
|---|---|
| Barcode | 8018823137478 |
Dimensions
| Size | 8" |
|---|---|
| Diameter | 8 in. |
| Depth | 9.09 in. |
| Height | 8.86 in. |
| Width | 11.34 in. |
| Mounting Bracket Thickness | 0.24 in. |
| Weight | 11.9 lb |
Audio
| Power Handling (Continuous) | 100 W |
|---|---|
| Power Handling (Peak) | 200 W |
| Sensitivity (SPL) | 91 dB |
| Nominal Impedance | 4 Ω |
| Frequency Response | 45 Hz – 25 kHz |
| Woofer Voice Coil Diameter | 1.26" |
| Tweeter Voice Coil Diameter | 0.8" |
Lighting
| LED Lighting | Yes - Integrated RGB |
|---|
Certifications & Protection
| Protection Rating | IP65 |
|---|---|
| UV Resistance | ASTM-D4329 Compliant |
| Salt Fog Resistance | ASTM-B117 Compliant |
Parameters
| Free Air Resonance (Fs) | 51 Hz |
|---|---|
| Electrical Q (Qes) | 0.82 |
| Mechanical Q (Qms) | 14.7 |
| Total Q (Qts) | 0.78 |
| Equivalent Compliance (Vas) | 0.922 cu ft |
| Mechanical Excursion Limit (Xmech) | ±0.33" |
| DC Resistance (Re) | 3.4 Ω |
| Voice Coil Inductance (Le) | 0.46 mH |
| Mechanical Compliance (Cms) | 0.33 mm/N |
| Moving Mass (Mms) | 30 g |
| Force Factor (BL) | 6.33 T·m |
Materials
| Woofer Magnet | High Density Flux Ferrite |
|---|---|
| Woofer Magnet Size | 3.54 x 1.57 x 0.79" |
| Tweeter Magnet | Neodymium |
| Tweeter Magnet Size | 0.78 x 0.12" |
| Cone Material | Polypropylene with UV Inhibitors |
| Dome Material | PEI |
