ULTRA POWER IN COMPACT SIZE

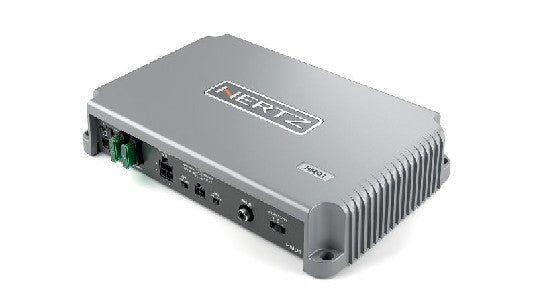

HMD1 24V mono amplifier is the perfect solution to add one or more marine subwoofer to your vassel, being the ideal power extension of HMD8 DSP. At 1 Ohms it is stable and can supply up to 1000 W of power with extremely compact dimension.
Specifications
Specifications
Identification
| MPN | 78213015 |
|---|---|
| Barcode | 8018823134149 |
Power
| Channel Configuration | 1 (Mono) |
|---|---|
| Power @ 4Ω | 500 W |
| Power @ 2Ω | 800 W |
| Power @ 1Ω | 1000 W |
Audio Performance
| Frequency Response | 10 Hz – 500 Hz (-1.5 dB) |
|---|---|
| THD | 0.1% @ 1 kHz, 4Ω, 70% Rated Power |
| Signal-to-Noise Ratio | 110 dBA (A-weighted @ 1V Input) |
| Damping Factor | 140 @ 1 kHz, 4Ω |
DSP
| Onboard DSP | None (Companion Amplifier to HMD8 DSP) |
|---|
Power Supply
| Operating Voltage | 20 – 33 VDC |
|---|
Dimensions
| Length | 243 mm (9.56 in.) |
|---|---|
| Width | 48 mm (1.8 in.) |
| Height | 159 mm (6.25 in.) |
| Weight | 1.98 kg (4.36 lb) |
Certifications & Protection
| Protection Rating | IP64 |
|---|
