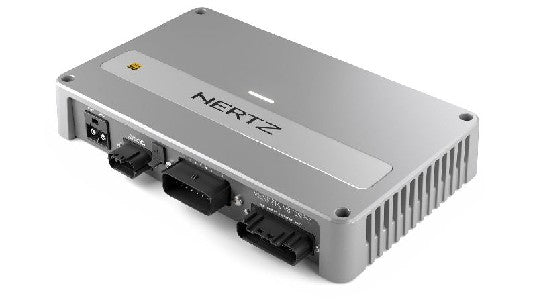

Hertz Audio Venezia Series 2000w 8-Channel DSP Amplifier - VENEZIA ...
Description
Description
The VENEZIA V8 DSPx² represents the most advanced expression of Hertz Marine audio engineering, designed to act as the intelligent heart of high-end and multi-zone onboard sound systems. Combining exceptional power with advanced digital signal processing, it delivers precise control, immersive sound, and long-term reliability in real marine conditions. The integrated dual-core DSP and EVOCA® proprietary technology work together to optimize loudspeaker behavior in real time, enhancing dynamics, clarity, and listening comfort while protecting system components over time. Thanks to native A2B digital networking, VENEZIA V8 DSPx² enables scalable system architectures with reduced wiring complexity, making it ideal for luxury yachts, OEM applications, and sophisticated installations where performance and integration matter. Certified for Hi-Res Audio and engineered with marine-grade materials, it ensures a refined, high-fidelity listening experience that remains consistent season after season, even in open-air environments.
Specifications
Specifications
Identification
| MPN | 78213020 |
|---|---|
| Barcode | 8018823140355 |
Power
| Channel Configuration | 8 - 4 (Configurable) |
|---|---|
| Amplifier Class | D-Class |
| Power per Channel (8ch @ 4Ω) | 160 W x 8 |
| Power per Channel (8ch @ 2Ω) | 250 W x 8 |
| Bridged Power (4ch @ 4Ω) | 500 W x 4 (Ch 1/2, 3/4, 5/6, 7/8) |
| Total RMS Power | 2000 W @ 14.4 VDC, 1% THD |
| Minimum Load | 2 Ω (Stereo) / 4 Ω (Bridge) |
Audio Performance
| Frequency Response | 10 Hz – 42 kHz (-1.5 dB) |
|---|---|
| THD | <0.04% @ 1 kHz, 4Ω, 70% Rated Power |
| Signal-to-Noise Ratio (Analog) | 98 dBA @ 1V Input |
| Signal-to-Noise Ratio (Optical) | 106 dBA @ 1V Input |
| Damping Factor | 125 @ 1 kHz, 4Ω |
| Input Sensitivity | 0.6 – 6 Vrms (11 kΩ Impedance) |
| Preamp Output | 6 Vrms |
DSP
| Processor | 2 x Analog Devices ADAU1467 (Dual-Core) |
|---|---|
| Resolution | 24-bit / 96 kHz, Hi-Res Certified |
| Filter Types | Linkwitz-Riley, Butterworth, Bessel, Chebyshev |
| Filter Slopes | 6 – 48 dB/Oct |
| Crossover Range | 20 Hz – 20 kHz |
| Phase Control | 0°/180° with All-Pass Filters |
| Time Alignment | 0 – 510 cm, 0.01 ms Resolution |
| Output EQ | 15-Pole Parametric/Graphic |
| Input EQ | 12-Band Biquad |
| Analog Inputs | 12 RCA Pre-In Channels |
| Digital Input | Coaxial S/PDIF (Max 96 kHz / 24-bit) |
| A2B Network | Up to 16 DSP Channels In/Out |
| Speaker Outputs | 8 Amplified Channels |
| DSP Preamp Outputs | 6 Channels |
Power Supply
| Operating Voltage | 11 – 15 VDC |
|---|---|
| External Fuse | 100 A |
| Current Draw @ 14.4V | 90 A |
| Idling Current | 2.50 mA |
| Standby Draw | 1.70 mA |
| Efficiency | 84.5% @ Rated Power |
Dimensions
| Length | 330 mm (13 in.) |
|---|---|
| Width | 300 mm (11.18 in.) |
| Height | 200 mm (7.87 in.) |
| Weight | 4.25 kg (9.37 lb) |
Certifications & Protection
| Protection Rating | IPX2 (Vertical Installation, Connections Facing Down) |
|---|---|
| Salt Fog Resistance | ASTM-B117 Compliant |
| Certification | Hi-Res Audio Certified |
| PCB | Marine-Grade Corrosion-Resistant |
