Description
Description

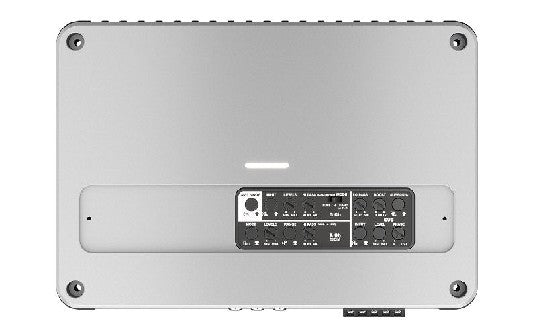

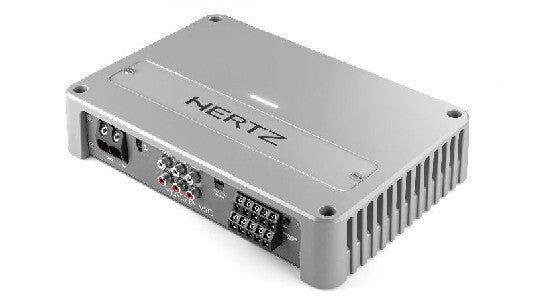

Venezia V5C 24V is the compact five-channel marine amplifier, featuring 80 W x 4 (4Ω) plus 330 W (4Ω) for the subwoofer! Hertz Advanced Class D technology maximizes efficiency and power while minimizing heat and electromagnetic radiation – enhancing sound quality that reaches new highs with Hi-Res certification! High-powered channels with bridging capability deliver the output levels needed in the marine environment. Venezia V5C 24V is engineered and tested for marine applications (UV, salt-fog, vibrations, high/low temperature, thermal shock) and has obtained the IPX2 certification. The Safe-Lock Input, Output, and Power connections streamline installation and enhance durability in the field. The fanless convection cooling system is integrated into the cast heat-sink chassis. The balanced fully-differential input circuitry rejects electromagnetic noise and interference. The powerful and flexible preamp filter options are far beyond most mobile amplifier capabilities. Last but not least, Venezia V5C 24V is fully protected by short-circuit, overload, and thermal protections – with auto-resetting.
Engineered and tested for marine application (UV, salt-fog, vibrations, high/low temperature, thermal shock) featuring IPX2 certification.
ADC (Advanced D-Class) Technology 2Ω stable output stage providing Hi-Res certified audio performance with superior efficiency.
Die-cast aluminum compact design with fan-less convection cooling system ensuring low operating temperature even at maximum power.
Balanced fully-differential input circuitry to reject electromagnetic disturbances.
Bridge operation mode to drive a subwoofer or to create a powerful dual-mono system.
Built-in filter section protected by a polycarbonate panel suitable for any system configuration.
Short-circuit, overload, and thermal protections with auto-resetting.
Plug&Play Input and Output connections with safe-lock.
Proprietary Plug&Play Power Supply Connector with safe-lock.
Specifications
Specifications
Identification
| MPN | 78250033 |
|---|---|
| Barcode | 8018823141475 |
Power
| Channel Configuration | 5 - 3 (Configurable) |
|---|---|
| Amplifier Class | D-Class |
| Power (5ch @ 4Ω) | 80 W x 4 + 330 W x 1 |
| Power (5ch @ 2Ω) | 115 W x 4 + 550 W x 1 |
| Power (3ch @ 4Ω) | 230 W x 2 + 330 W x 1 |
| Total RMS Power | 1010 W @ 28.8 VDC, 1% THD |
Audio Performance
| Frequency Response | 10 Hz – 42 kHz |
|---|---|
| THD | <0.05% @ 100 Hz, 4Ω |
| Signal-to-Noise Ratio | 100 dB (A-weighted @ 1V) |
Power Supply
| Operating Voltage | 22 – 33 VDC |
|---|
Dimensions
| Length | 270 mm (10.6 in.) |
|---|---|
| Width | 240 mm (9.44 in.) |
| Height | 185 mm (7.2 in.) |
| Weight | 3.72 kg (8.2 lb) |
Certifications & Protection
| Protection Rating | IPX2 (Vertical Installation, Connections Facing Down) |
|---|---|
| Salt Fog Resistance | ASTM-B117 Compliant |
